INTELLIPRO
®
Variable Speed Pump Installation and User’s GuideINTELLIPRO
®
Variable Speed Pump Installation and User’s Guide
Set Maximum Speed (RPM)
The maximum speed can be set from 1900 RPM to
3450RPM(defaultis 3450). Use this settingistoset
the maximum running speed of the IntelliPro
®
Variable
Speed pump.
When the pump is set to Priming “Enabled”, the pump
willspeeduptoandrunatthisspeedtoprime.Aservice
professionalmustsettheMaximumSpeedofthepump
to not exceed the maximum flow rate of the system on
which it will operate.
1. CheckthatthegreenpowerLEDison.
2. Press Menu.
3. Press Select to select “Settings”.
4. UsetheUp or Downarrowstoscrollto“SetMax
Speed”.
5. Press Select to change. The cursor will appear in
therstnumbercolumn(ones).
6. Press Up or Down arrows to change the maximum
speedsettingfrom1900to3450RPM.
7. Press Enter. Press Escape to exit. To cancel, press
the Escape to exit without saving.
The Maximum Flow rate setting should be set so the
system never operates at or above 25” of Hg vacuum.
Pump Menu: Settings
MENU
SETTINGS
(1-16) Default: ADDRESS 1
(hr:mm) Default: 12:00 AM
Set AM/PM
AM/PM
24 hr.
Fahrenheit - Default: F°
C° Celsius
(1-5) Default 3
(450 RPM - 1700 RPM) - Default: 450 RPM
(1900 RPM - 3450 RPM) - Default: 3450 RPM
Pump Address
Set Time
Temperature Unit
Screen Contrast
Language
Set Min Speed
Set Max Speed
PASSWORD
Password Time Out (1 min. - 6 hours) Default:10 minutes
Disa
bled/Enabled - Default: Disabled
Enter Password (xxxx) Default: 1234
English - Default: English
Set Minimum Speed (RPM)
Theminimumpumpspeedcanbesetfrom450RPM
to1700RPM.Thedefaultsettingis450RPM.
1. CheckthatthegreenpowerLEDison.
2. Press Menu.
3. Press Select to select “Settings”.
4. Use the Up or Downarrowsto scroll to“SetMin
Speed”.
Password Protection
The default setting for password protection is disabled.
When this feature is enabled, the pump display will
prompt for the password before allowing access to the
control panel and buttons.
The entered passwordis any combination of four (4)
digits.
12:15
750 RPM
Actual Speed
Running Speed 1
Password
Protection
Enabled
• Password protection can always be turned off by
pressing Start/Stop.
• Passwordprotectioncannotbeturnedbackonwith
Start/Stop while running in manual mode.
• Pressing Start/Stop when the pump is off will return
it back to the Running Cycles Mode and run at
the next scheduled run time. If the present time is
within the scheduled run time, the pump will run the
scheduled speed.
• Allfunctionsincludingprogrammingaredisabledin
PasswordProtectionMode.
• Screen will read “Enter Password” if any button other
than the Start/Stop button is pressed

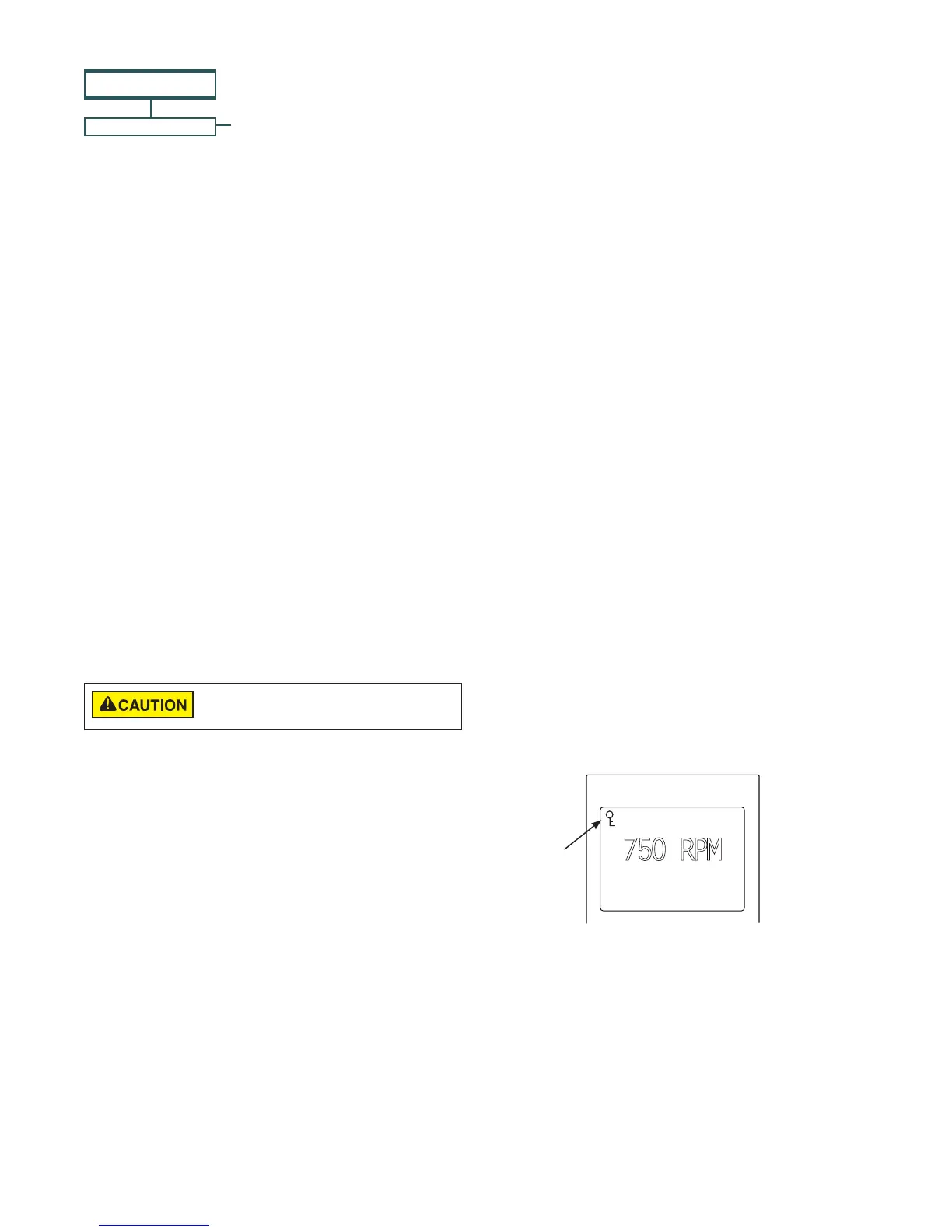

• Key icon displayed in the upper left side of the
screen when Password Protection is on.
5. Press Select to change the setting. The cursor will
appear in the first number column.
6. Press the Up or Down arrows to change the minimum
speedsettingfrom450to1700RPM.
7. Press Enter to save. To cancel, press Escape to exit
edit mode without saving.
8. Press Escape to exit.
Language
To access the language menu:
1. CheckthatthegreenpowerLEDison.
2. Press the Menu button. “Settings” is displayed.
3. Press the Selectbutton.“PumpAddress”isdisplayed.
4. Use the Up or Down arrow button to scroll to
“Language”.
5. Press the Select button to access the language menu.
6. Press SelecttohighlightcurrentLanguageinuse.
7. Press the Enter button to select the desired language
for the control panel. To cancel any changes, press
the Escape button to exit edit mode without saving.
8. Press the Escape button to exit.
