19
3. 0-G100

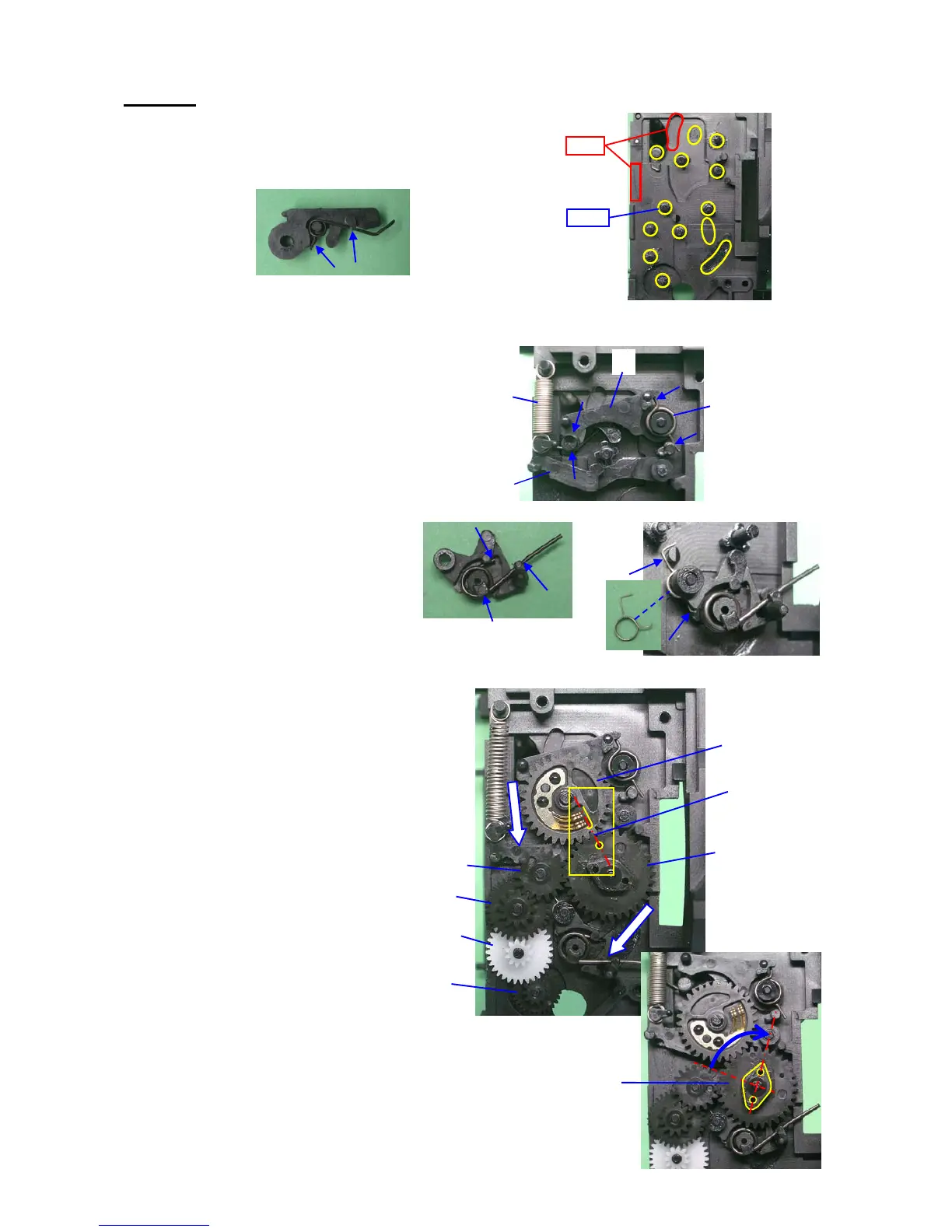

① Apply G126 at 13 positions and apply L115 at 2 positions.
② Install B20 to B11.
③ B11 ----Hook the spring to shaft of mirror sheet.
[Caution] Caution for come off spring.
④ B19
⑤ B10
⑥ B21
⑦ Install B17 to B9.
⑧ Install B18 to B9.
⑨ 0-B8
----Apply G126 to surface of cam.
⑩ B7
----Apply G126 to surface of cam on both side.
⑪ Align the both hole of 0-B8 and B7.
⑫ B3
⑬ B4
⑭ B5
⑮ B6
⑯ Turn B7 clockwise until the arrow indicated in figure right.
①
G126
L115
②
③
④
⑤
⑥
⑦
⑧
⑪
⑫
⑬
⑭
⑮
⑨
⑩
⑯
To Next Page
