56
30. [Adjustment] Digital
[Caution]If execute this initialization, all setting will be initialized except custom function.
[Required equipment]
Programmed software for 76830(Digital), Computer (Windows 2000 or XP with USB port equipped )
Light source (LB-3300: A light 2850 Kº±10, LV11.00), Master lens for 76180 (95901 D20), Diaphragm set
ring F8 (KA-0-1A), AC adaptor (D-AC10), USB cable (I-USB17), Dark curtain, Color temperature tester
(for calibration), LV meter (for calibration)
*The adjustment method is the same as K100D.
*Followings are listed particular contents for K10D. Refer to the service manual of 76700.
30-1. Setting the computer and Light source
① Copy the folder [76830] from the CD-ROM into the Computer.
②
[3. Calibration of light source for Digital adjustment] should be completed before.
③ Confirm or calibrate color temperature and brightness by using color meter and LV checker as shown
below table.
Light
source
Brightness
Color
temperature
LV12 LV12.00Ev ±0.50 2,856K ±30
LV11 LV11.00Ev ±0.01 -
30-2. Setting of camera and master lens
① Set mode dial to [M]
② Set focus mode lever [MF]
③ Set SR lever to [OFF]
④ Attach the master lens 76180 and Diaphragm set ring F8 to the camera.
⑤ Set master lens to [F8 position]
30-3. Procedure of adjustment
*Start up the computer with the same method of K100D and follow the screen.

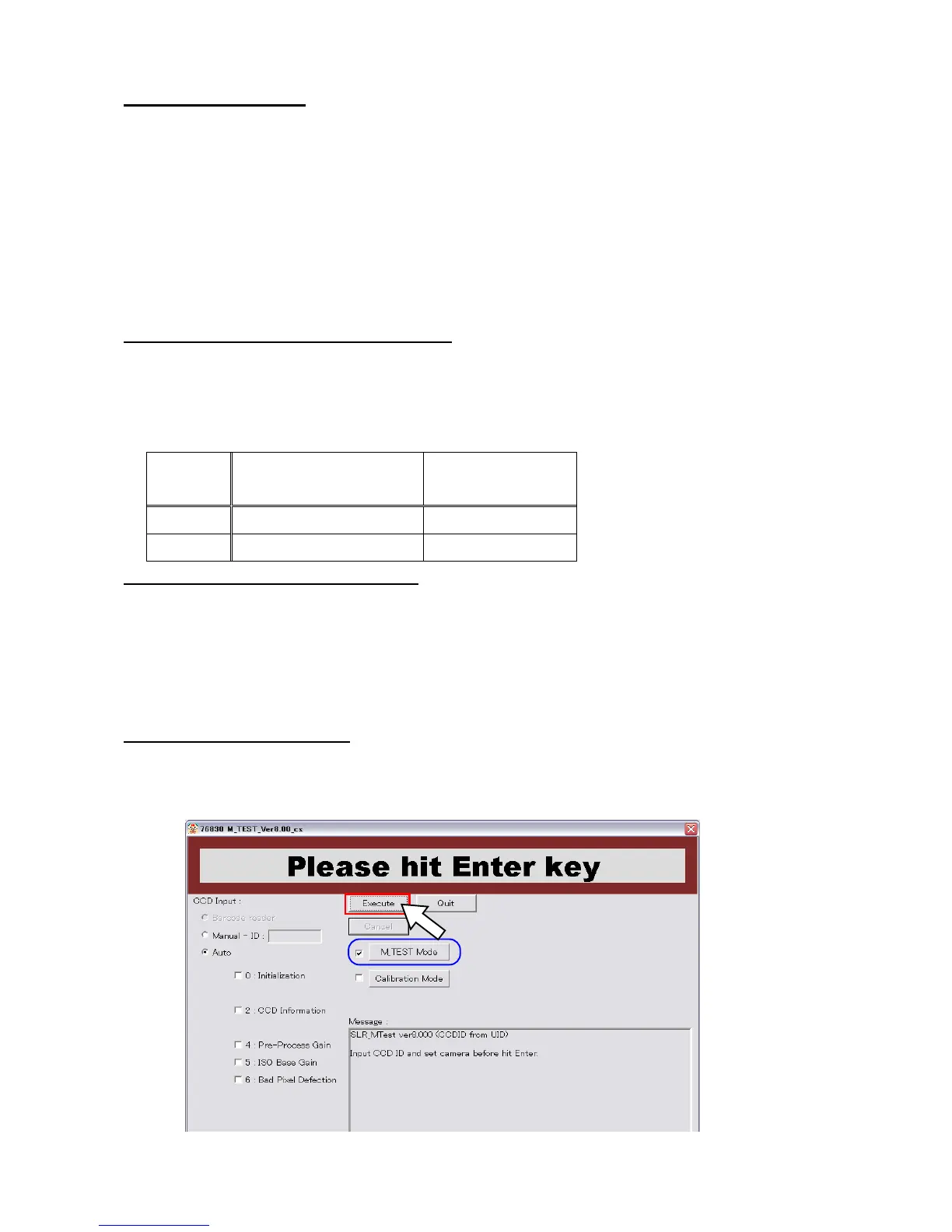

① Confirm setting [M_Test Mode] and press [execute] button to start adjustment.
To Next Page
