43

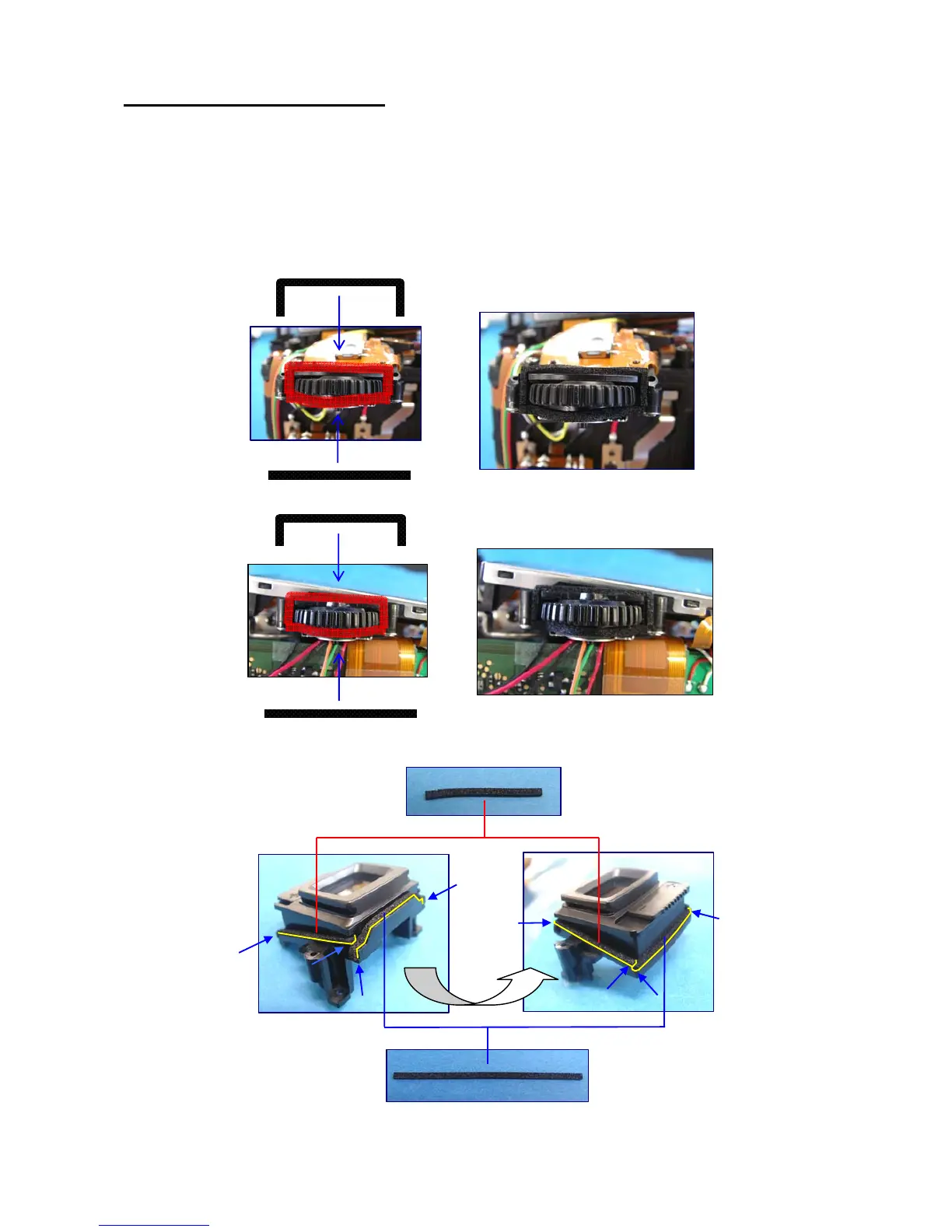

24.[Confirmation] Sealing on Body
[Confirmation]
The sealing should be installed correctly and without any dirt,
dust and sand.
①
Front and back side electric dial.
[Confirmation]
When rotate the electric dial, it should not touch with a proof sheet.
②
M31
1
A353
A352
A1
A352
A355
A471 x2
A463 x2
43
45
