Pentax K10D 76830 - Initialization After T100 Replacement; Preparation for Initialization; Installing Firmware

39

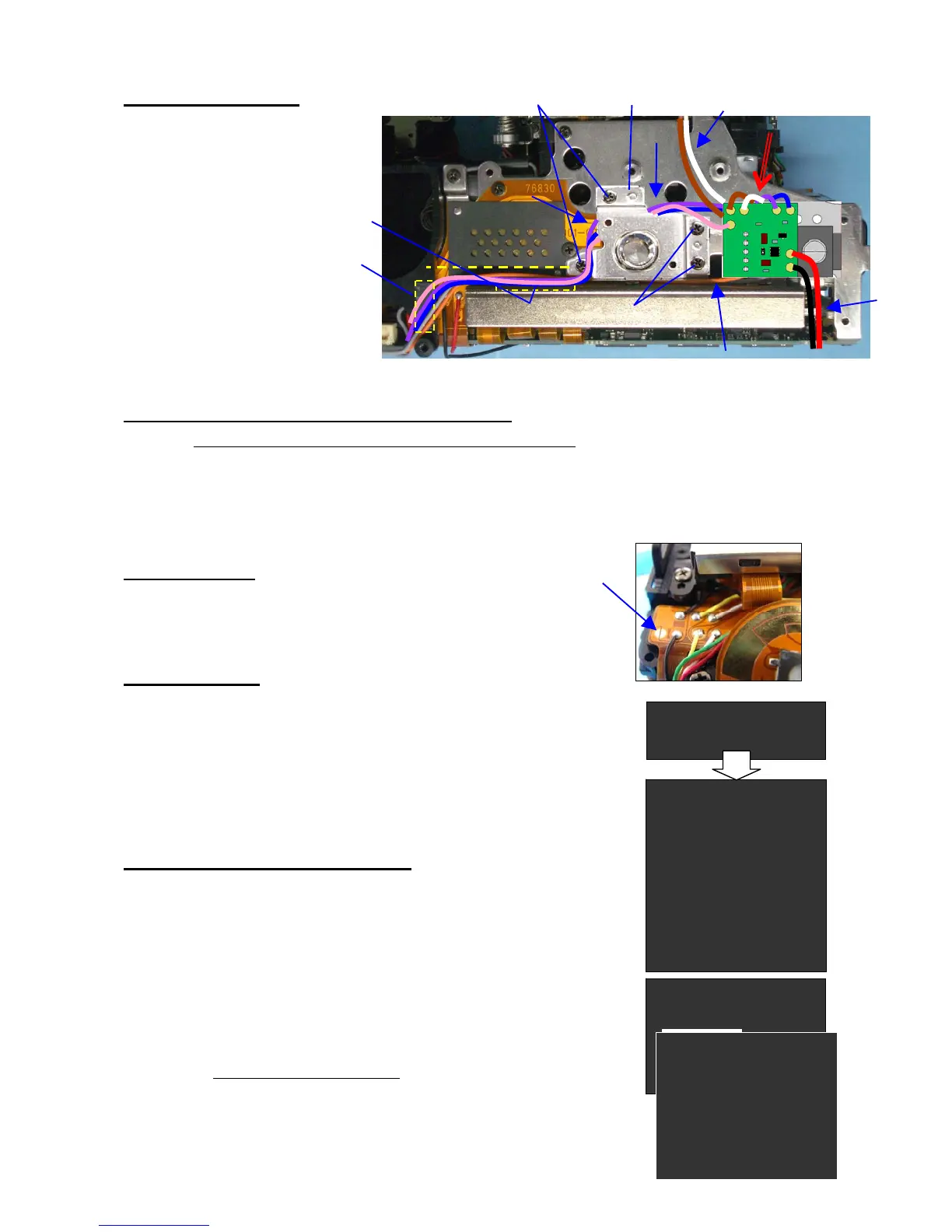

20. 0-A51(Tripod plate)
① 0-A51
② CNL-D1.7x2.5 x4
③ Arrange lead wires as shown figure.
（S300 and T770）
21. [Adjustment] Initialization when replacing T100
[Caution] When replacing T100, you must execute this initialization. Do not execute with other reason.
[Required equipment]
SD card SD card 2 pieces (FW for replacing T100, for install initial data), TV monitor, Exclusive
Video cable, Circuit tester, AC adaptor (or DC cord for 76830, Power supply DC8.3V/3A or above)
21-1. Preparation
① Connect the TV monitor by Video cable.
② Solder main switch land on T200.
21-2. Power check
① Connect to the power supply by DC cord and set DC8.3V/3A.
② Connect the DC cord to the camera. Confirm that there is no short circuit or leak.
[Caution] If there is short circuit, disconnect the power immediately.
With this condition battery current is approx.320mA (metering switch off).
③ Disconnect DC cord.
21-3. Installing FW for replacing T100
[Caution] All setting will be cleared
① Connect the Video cable and AC adaptor to the camera.
② Surely install SD card (FW for replacing T100) to the card slot.
③ TV monitor will be displayed as right Fig.
If you cancel installation, disconnect AC adaptor first then remove SD card.
④ When [>>> EJECT SD CARD <<<] is displayed, remove the SD card.
Installation will be started. It takes approx.90sec. (UPDATING…)
[Caution]Do not turn OFF the power.
⑤ When [POWER OFF] is displayed, disconnect AC adaptor.
*leave the video cable.
①
②
DT(4x15)
DT(4x10)
②
DETECTED BOTH F/W FILE
NOW LOADING
DETECTED FIRMWARE FILE
COMPLETE LOADING
------- CPU --------
CURRENT VER.1.00.00.00
UPDATE VER.1.00.00.10
======= DSP ========
CURRENT VER.1.00.00.00
UPDATE VER.1.00.00.10
>>> EJECT SD CARD <<<
SAMSUNG GX10
UPDATING DSP FIRMWARE
SECTOR** >> PROGRAM
_____________
NEVER POWER OFF
SAMSUNG GX10
UPDATING DSP FIRMWARE
**** COMPLETE ****
VERSION 1.00.00.10
POWER OFF
Main SW
Land
