Pentax K10D 76830 - 0-T750 (Top Left Flex Board)

32
②
Arrange the lead wires and flex as shown figure then install 0-A3.
③ TY-CNL-D1.7x4.0 x3
④ CNL-D1.7x2.5 x2
⑤ TY-CSM1.7x4.0
⑥ TY-CNL-E1.7x2.2 Ni x2
⑦ Arrange T901 flex and 0-A3
as shown in figure.
⑧ A423 (Mask)
⑨ CNL-D1.7x1.6 x2

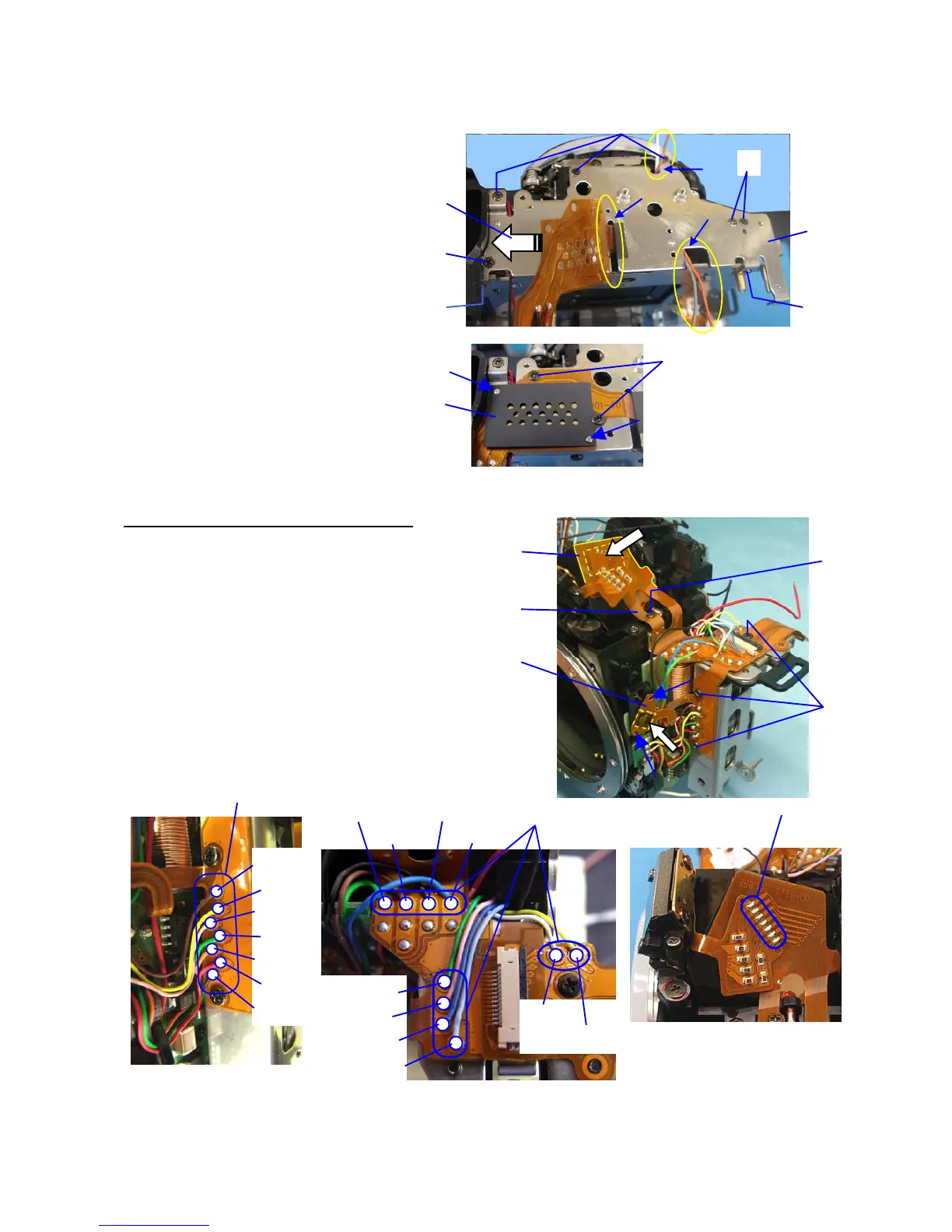

9. 0-T750 (Upper left side flex board）
① 0-T750 -- Attach to the body
② CNL-D1.7x1.6 x3
③ TY-CNL-B1.4x2.5
④ Fix Pentaprism with DT (10x18)
⑤ Fix RAW button SW with DT (5x5)
⑥ Solder 7 lead wires.
⑦ Solder 10 lead wires.
⑧ Solder 7 lands. (O170 flex)
②
③
⑤
④
①
⑥
Brown
Yellow
Pink
Green
Orange
Red
Black
⑦
White
Yellow
Green Black
Brown Blue
Green
Pink
Blue
Sky-blue
⑧
⑦
⑥
⑤
②
④
④
③
⑨
⑧
