⑨ When [+/-] button is pressed, light on the back light of LCD panel and exposure compensation can be set.
⑩ When press AE-L button, AE lock can be set
⑪ When press exposure bracket button, it can be set.
⑫ When press RAW button, [RAW+] should be displayed on LCD panel and it turn off with pressing
ROW button again.
27-5. Shooting and Playback check
① Turn the main SW to OFF and insert the SD card (for Taking picture) into the camera.
② Turn the main SW ON
③ Press the MENU button and format the SD card according to indication of LCD monitor.
④ Set the Quality level and Recorded pixels to the default setting and
take three pictures. (Quality Level: ☆☆☆, Recorded Pixels: 10M)
⑤ Press the Playback button and confirm the image quality.
⑥ When the INFO button is pressed during playback, the camera must switch from
Normal Playback Screen to Histogram Display.
⑦ When the INFO button is pressed again, the camera must switch from Histogram
Display to Detailed Information display.
⑧ Take the picture with vertical position. (Set Grip side on top and bottom)
⑨ Capture the image and confirm the images are displayed correct angle.
⑩ Press the Delete button twice, and then delete all images by the four-way controller key and OK button.
⑪ Turn the main SW to OFF and remove the SD card from the camera.
27-6. Flash Check
① The built-in flash pops up when the flash button is pressed. And, must be appeared in the
viewfinder and on the LCD panel when flash is fully charged.
② The flash must be discharged when taking a picture in low light condition.
③ The built-in flash must be retracted firmly when flush is pushed down by finger.
*If flash does not retract properly or too much gap (more than 0.2mm), follow the [Adjustment of flash
retract position].
④ Confirm that must be appeared and discharged when an external flash is attached.

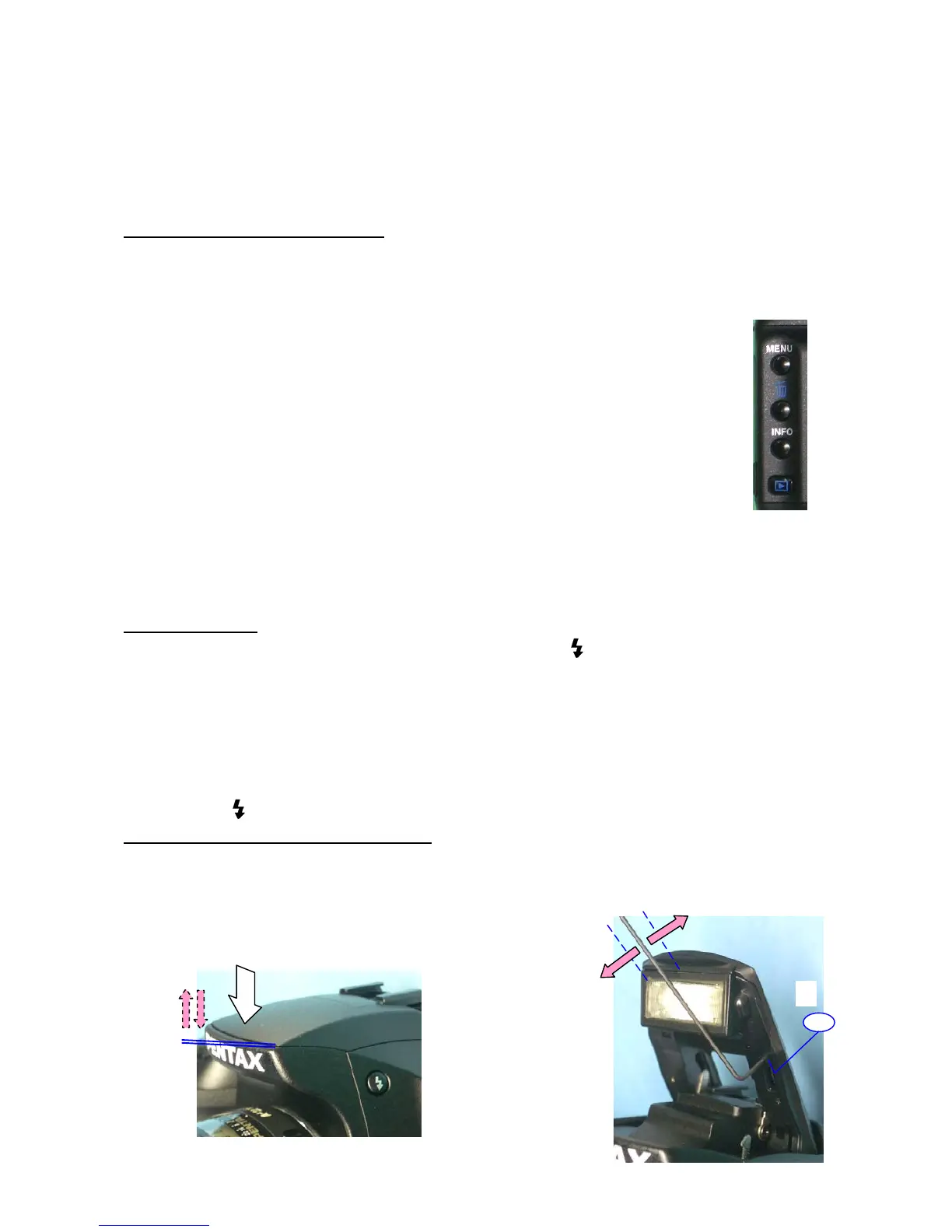

27-7. Adjustment of flash retract position
[Preparation]: Hexagonal driver 0.9mm (HD-M0.9)
① There should be approx 0.1mm between a and b when push down the flash.
② It can be adjusted by turning the adjusting screw, refer to the picture.
③ Apply screw lock to the adjusting screw.
0.1mm
a b
①
b
a
SL
②
ADJ.
③
To Next Page
