20

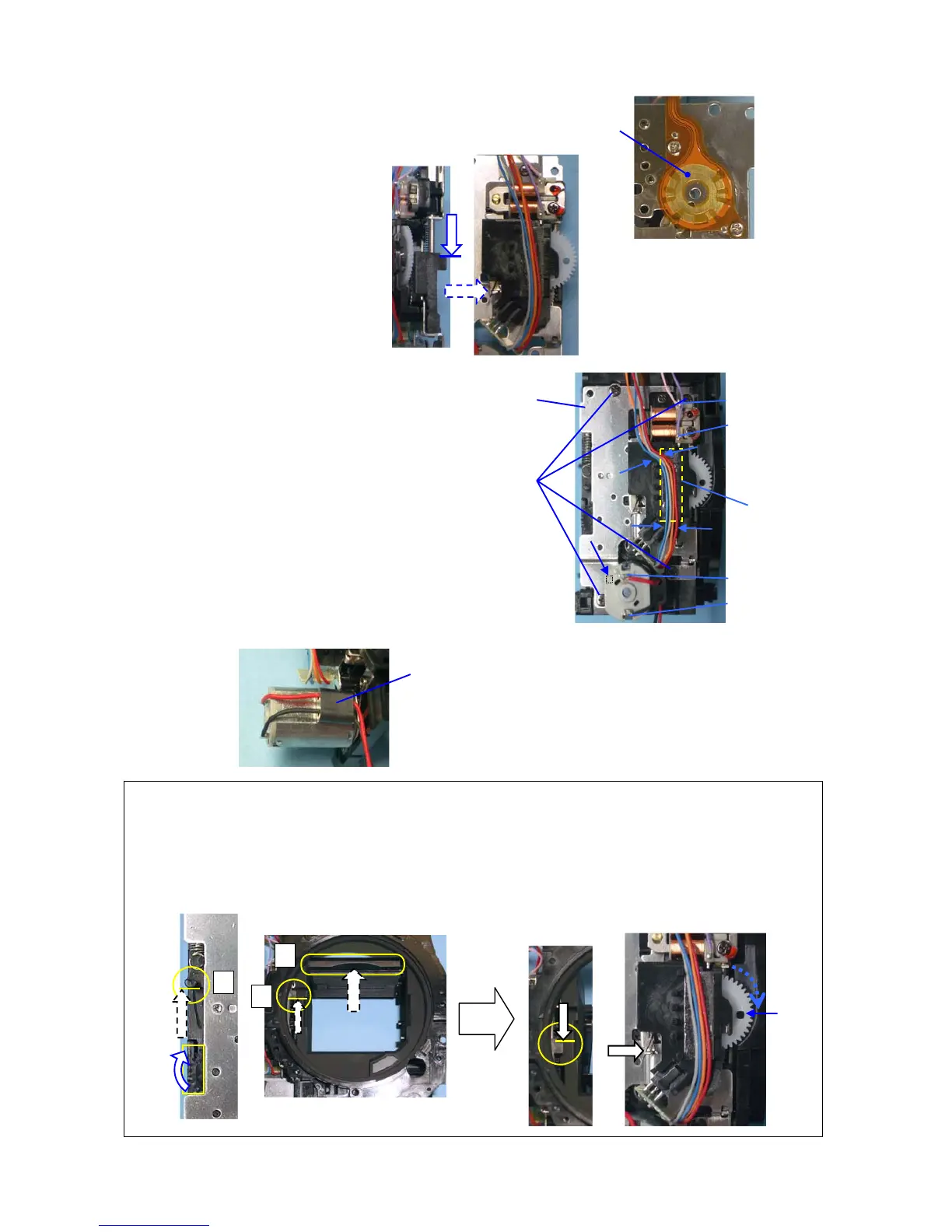

⑰ Clean code plate by solvent and apply G151.
⑱ Latch the lever of G100 while pushing
down the sliding plate.
⑲ 0-G100
----Surely install G100 without any gap between plate.
⑳ TY-CNL-D1.7x3.0 (x4)
[Arrangement when replace G100]
1. Arrange the lead wires with DT (5x15) as shown in figure.
2. Solder 4 lead wires.(Pink, Purple, Red, Black)
3. Affix A364 on the mirror motor by DT (3x6).
⑰
⑱
⑲
⑳
DT(5x15)
Pink (60mm)
Purple (60)
Red (95mm)
Black (95)
S364
[Notice for Disassembly] Set the mirror seat at top position before removing 0-G100.
1.As shown in a figure, a gear is turned, and it sets to a mirror up position.
Mirror up: (Shutter charge lever(1) and mirror seat(2) and sliding plate(3) must be top end
position. )
2. Latch the lever of G100 while pushing down the sliding plate.
②
③
①
To Next Page
