21

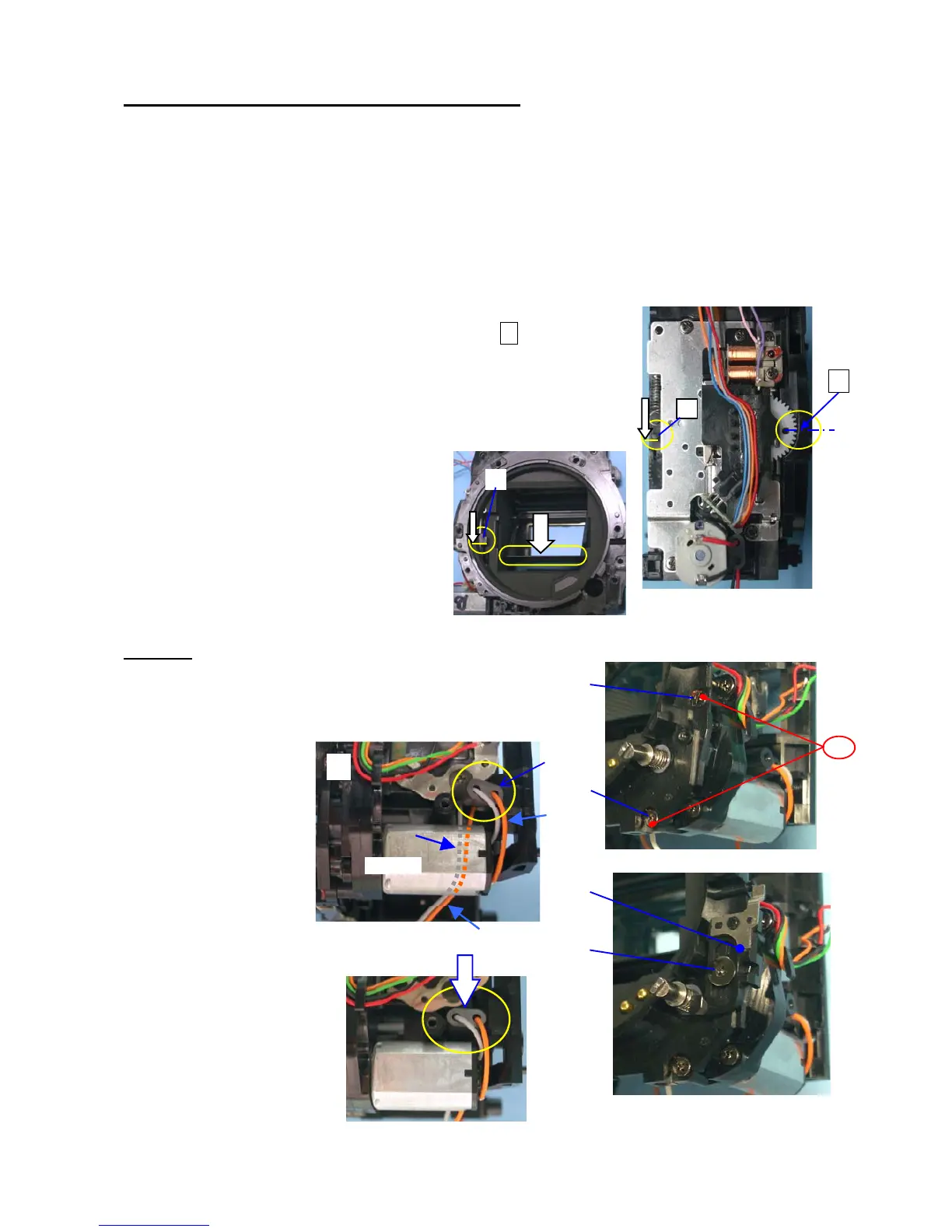

4. [CONFIRMATION] Checking the mirror function
[Required equipment] Power supply
① Confirm the following points while applying DC2V to the mirror motor. (Red wire: Positive)
-1) The mirror seat must be moved smoothly without noise.
-2) The shutter charge lever(b) and sliding plate(a) must be moved smoothly and surely go up and down.
②Set the mirror seat to the down position while applying DC1.5V.
(Fine adjustment is possible when turn white gear at behind of G100)
Mirror down: mirror, sliding lever, shutter charge lever at down position.
White gear must be positioned as shown in figure.----（※）
③ Both mirror seats 1
st
and 2
nd
must be returned smoothly to the original
position when both mirror seats are passed inward about 3mm by finger
pressure.
④ Set the mirror seat to the down position.
5. 0-S300
①Arrange the lead wires from motor and S364 as shown in
figure and then attach 0-S300.
② TY-CNL-D1.7x3.5
③ TY-CNL-D1.7x5.5
④ Apply screw lock.
⑤ Install S364 as shown in figure.
⑥ 0-A115
⑦ TY-CNL-G1.7x2.5
a
※
b
S364
0-S300
①
SL
②
③
④
⑥
⑦
⑤
To Next Page
