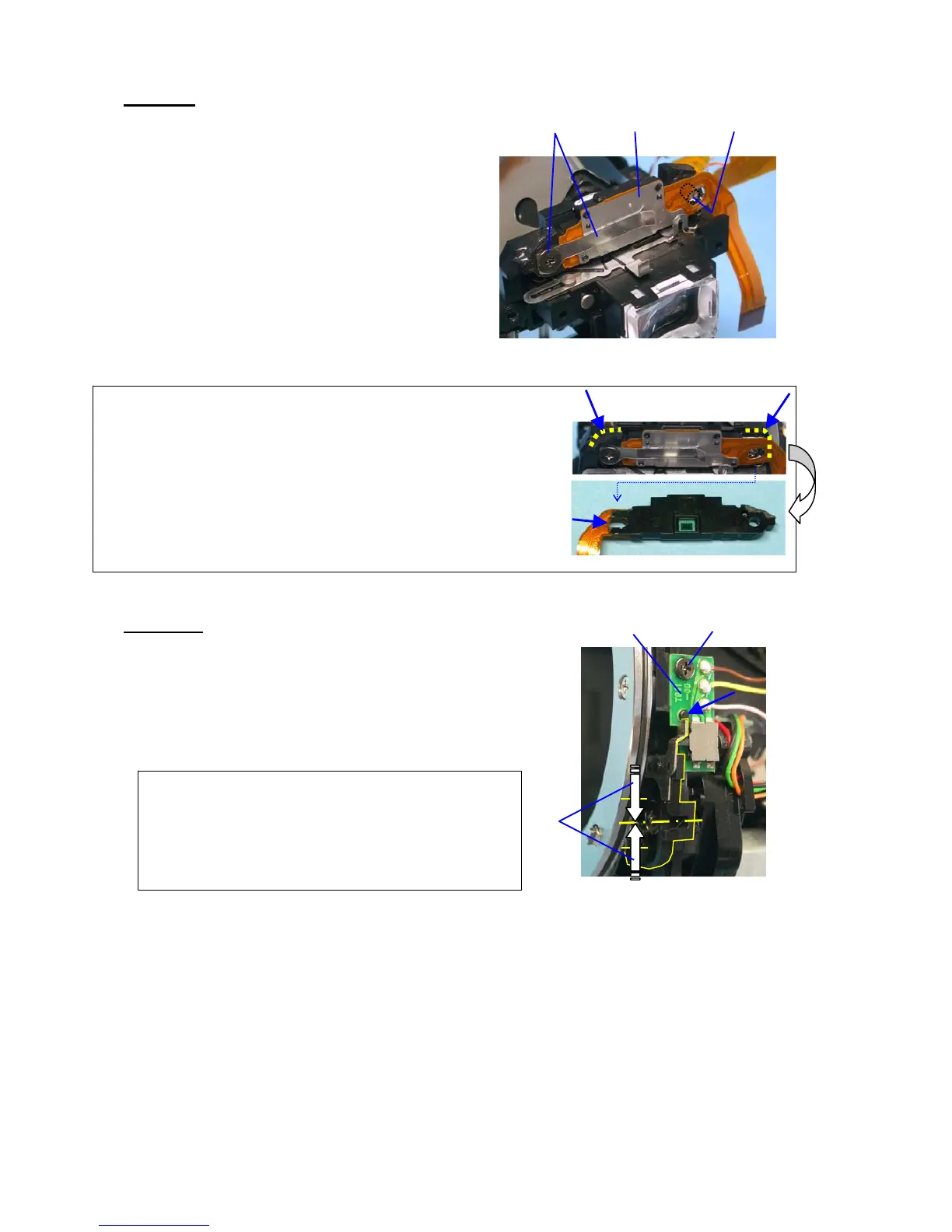

① M10 -- Set the diopter lever at end of left side and
then install it.
② 0-J100
③ M5-TY-CNL-G1.7x5.0（Temporary）
18. 0-T940
① Set AF mode lever to AF.S (Center position)
② 0-T940
③ TY-CNL-D1.7x3.0
[Caution for disassembly]
When take off 0-T940, the AF lever should be set
At center (AF.S)
①
②
③
①
②
③
[Caution]--- Disassembly
1. Set the Diopter lever to the left side.
2. Unscrew TY-CNL-G1.7x5.0 -M5.
3. Remove the bonds which are around the 0-J100.
* Not to damage 0-J100
4. 0-J100, M10
To Next Page
