Pentax K10D 76830 - 0-Q200 (Flash Pc Board); A5 (Right Shoulder Plate) and Related Parts; T901 (Lower Flex Board); 0-A3 (Bottom Plate Assy)

31

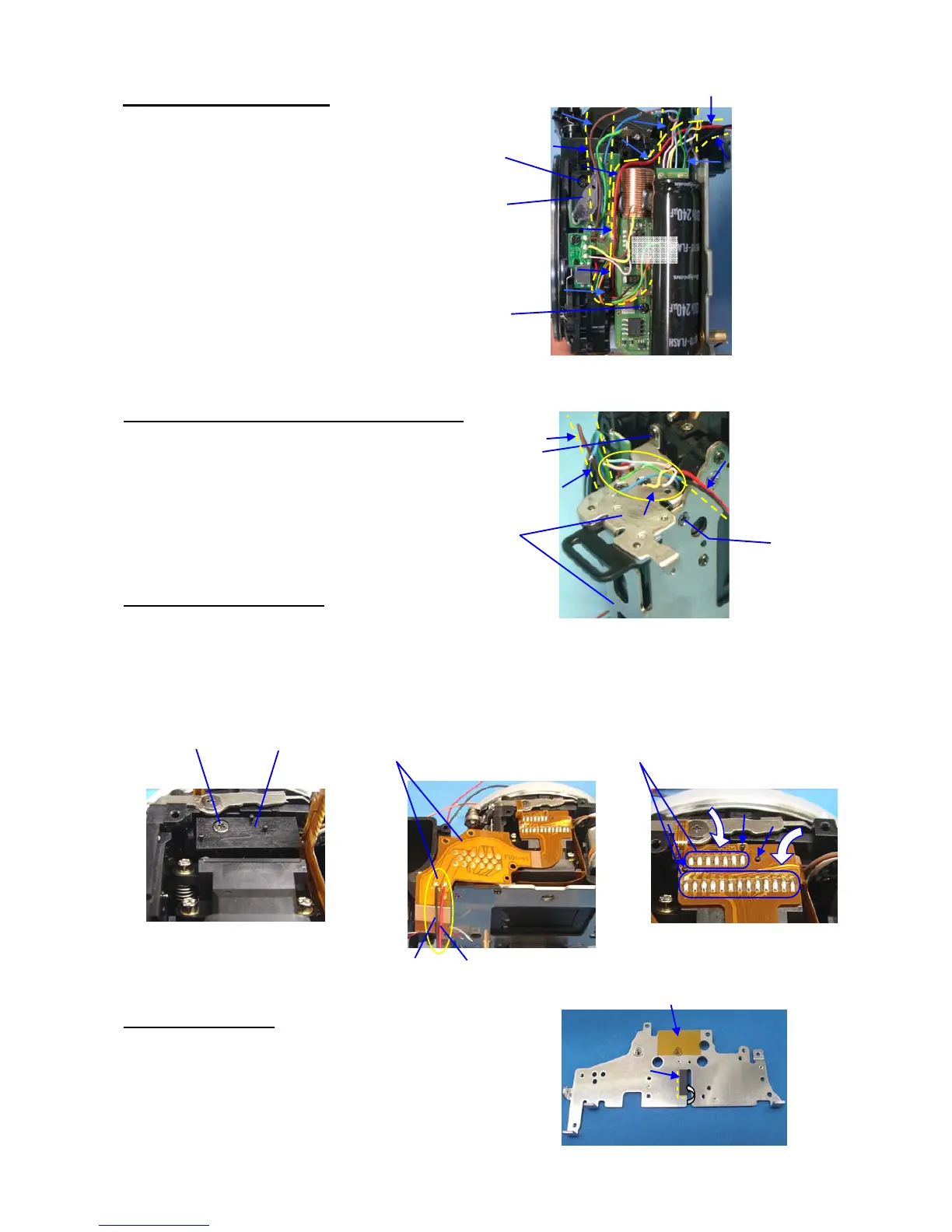

5. 0-Q200 (Flash PC board)
① 0-Q200 --- Arrange the lead wires as shown figure.
② TY-CNL-D1.7x3.5（bottom side）
③ A117
④ TY-CNL-D1.7x3.5
6. A5 (Right shoulder plate) and related parts
① A5 and related parts
--
Arrange the lead wires as shown figure.
② TY-CNL-D1.7x4.0
③ CSM1.7x2.5
7. T901 (Lower flex board)
① A141
② TY-CNL-D1.7x3.5
③ T901 (Red and Black lead wire)
④ T301 and M100 flex land 20 position.
8. A3 (Bottom plate)
① Make sure there is two tape on 0-A3
④
③
②
①
③
②
①
②
①
③
Black Red
④
