38

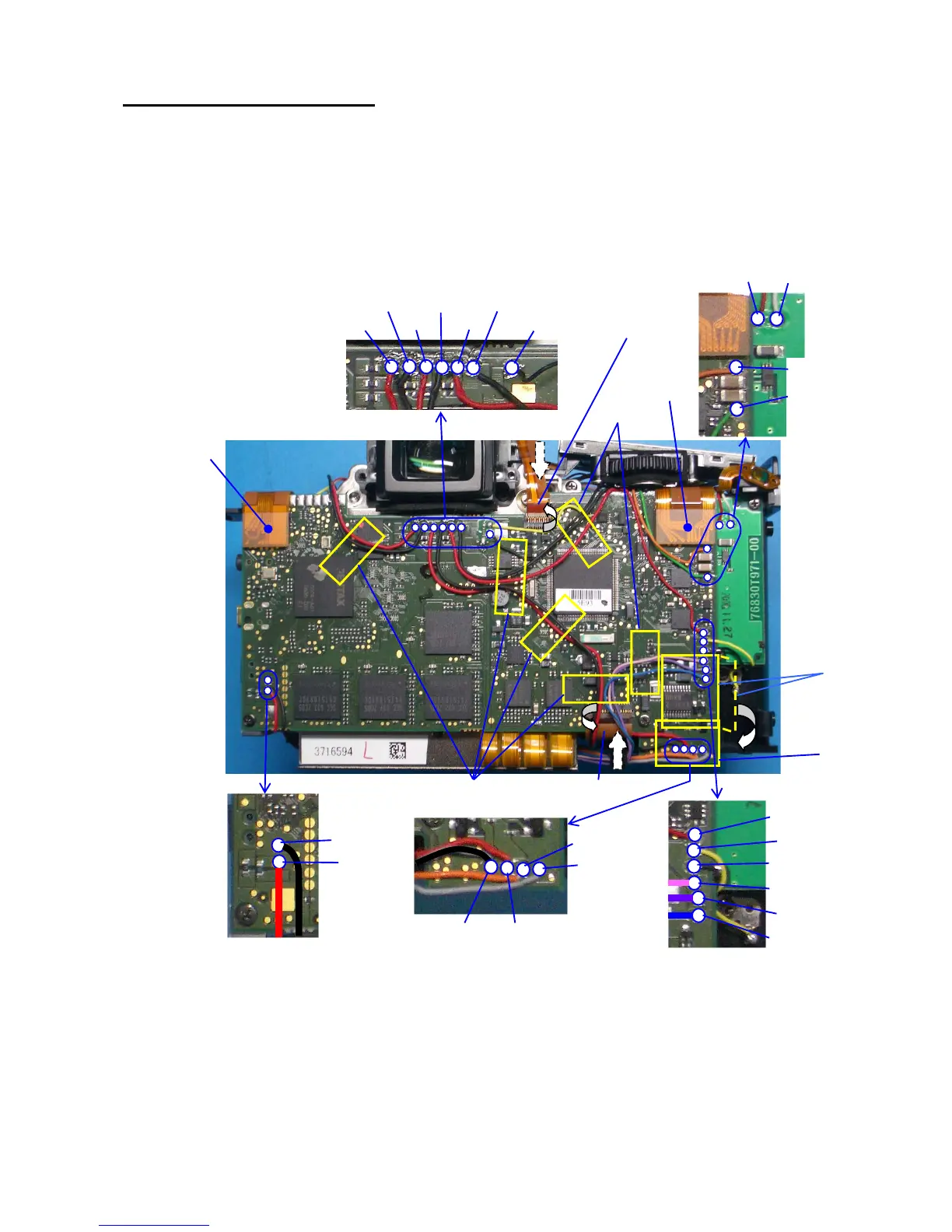

19. Soldering lead wir
es on T100
①
Connect flex to connector
. (2 point, Flip lock type)
Fix J100 flex with DT
②
Connect flex to connector
. (2 point, Plug-in type)
③
Solder 4 lead wires.
④
Solder 6 lead wires.
⑤
Solder 4 lead wires.
⑥
Solder 2 lead wires.
⑦
Solder 7 lead wires.
⑧
BT(5x15)…x6
⑨
T90 Hold
⑩
U5
(76030-
A35)
⑦
③
(Q200) (T901) (A14)
Black Black Black
Red Red Red Black(T950)
Orange
Gray
(
S300
)
Black Red
(S250)
(N300)
Red White
Orange
Green
(T950)
⑥
④
⑤
②
⑧
⑧
②
①
Black
Red
(T770)
Red (T950)
Y
ellow
Black (A18)
Pink (T770)
Purple
Blue
⑨
⑩
①
38
40
Table of Contents
Table of Contents
2
Preparation
3
Preparation for Adjustment
3
Outline for Disassembly and Assembly
6
Caution
6
Adjustment Flow When Replacing T100
6
Flowchart for Assemble, Adjustment and Confirmation
7
Disassembly and Assembly Procedures
9
Disassembly Procedure of Main Body
9
Assembly and Disassembly Procedure of Front Housing Block
19
Assembly and Disassembly Procedure of Front Housing
19
Front Housing Block
19
0-G100
21
[Confirm] Checking the Mirror Function
22
0-S300
22
A104
23
Adjust] Positioning 1St and 2Nd Mirror
24
[Adjust] Af Joint Stroke
25
L2. 0-L3
25
M301
25
Adjust] Viewfinder Focus and Parallax
26
S1 Block
26
Adjust] Positioning Si-Led
27
0-O100
27
Adjust] Positioning 0-O100 (Viewfinder Indications)
28
0-M100
28
0-J100
29
0-T940
29
Assembly Procedure of Main Body
30
0-E000 (Shutter Block)
30
Battery Chamber and Related Parts
30
Front Housing Block
31
A6 (Left Shoulder Plate) and Related Parts
31
0-Q200 (Flash Pc Board)
32
A5 (Right Shoulder Plate) and Related Parts
32
T901 (Lower Flex Board)
32
0-A3 (Bottom Plate Assy)
32
0-T750 (Top Left Flex Board)
33
0-T700 (Top Right Flex Board)
34
A350 (Main Swithch Base Plate)
35
0-201 (Lcd Block)
35
Confirm] CCD Base Plate Support Pillar
36
0-C000 (Sr/CCD Block)
36
Adjustment] Height of 0-C000
37
0-T970 (Sd Circuits Block)
38
0-T100 (Main Pc Board)
38
0-T770 (Pz Circuits Block)
38
Soldering T100 Leadwires
39
0-A51 (Tripod Plate)
40
[Adjustment] Initialization When Replaceing T100
40
Preparation
40
Power Check
40
Installing Firmware
40
Writhing Initial Data
41
[Adjustment] Sr Adjustment (Unit Adjustment)
41
[Adjustment] 0-J100 Position Adjustment
43
(24 )[Confirmation] Confirm Sealing for Outside
44
A150/A201 (Front Cover/Back Cover)
47
A301(Top Cover)
48
[Confirmation] Function Check 1
49
Adjustment] Flash Store Position
50
[Adjustment] Slr Operation Adjustment
51
Af Shift Adjustment (Optional)
55
[Adjustment] Sr Adjustment (Gain Adjustment)
57
[Adjustment] Digital Adjustment
58
Wdc Adjustment (Optional)
59
Adjustment] Shutter Speed Adjustment by Histogram
59
A401 (Buttom Cover)
59
[Confirmation] Function Check 2 (Final Check)
59
Confirmation for Sr Function
60
Initialization (Optional)
60
Technical Information
61
Battery Consumption Current
61
Fw Version up
61
Block Diagram
62
Ae Program Line and Apex Chart (Iso200)
66
Feature of K10D
67
Information of Jigs, Tools and Testers for K10D
68
Af Confirmation Chart and Scale
69
