47

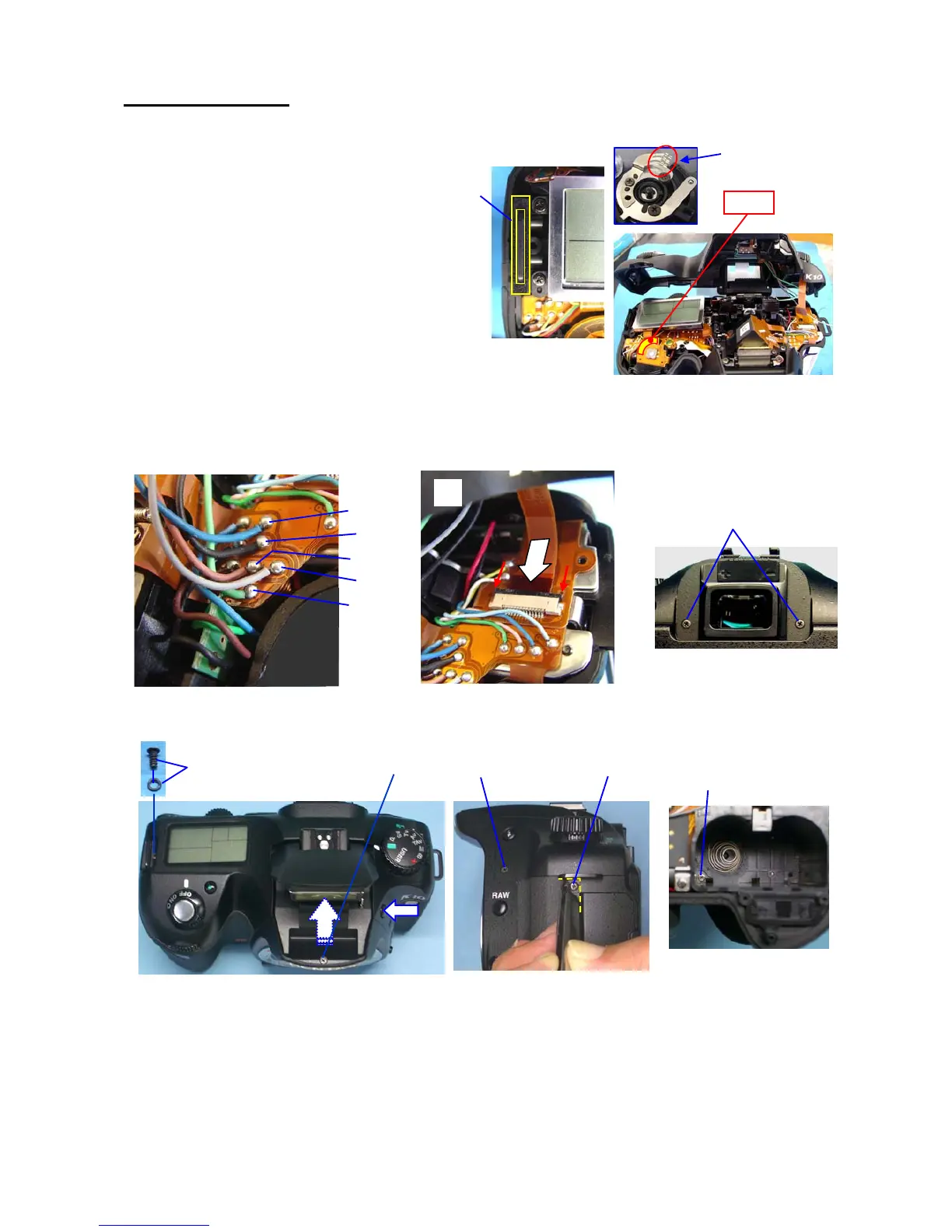

26. 0-A301(Top cover)
*The brush should be without bend
*Apply G151 to the main SW land.
① A27（Water proof sheet）
② 0-A301
③ Solder 5 lead wires.
④ Connect the T51 flex to the connector(Slide lock)
⑤ A173（TY-screw 1.7x6.0 x2）
⑥ A171（TY-screw 1.7x4.0, A304（O-ring）
⑦ A171 --- pop-up the flash.
⑧ CNL-D1.7ｘ5.5 --- peel off the grip rubber.
⑨ A173
⑩ TY-CNL-D1.7x8.0（In the battery chamber）
⑧
⑨
⑩
⑤
④
①
③
Blue
Black
Brown
Gray
Green
G151
⑥
⑦
To Next Page
