30
② A13
③ Main body
④ TY-CNL-D1.7x4.0 x2

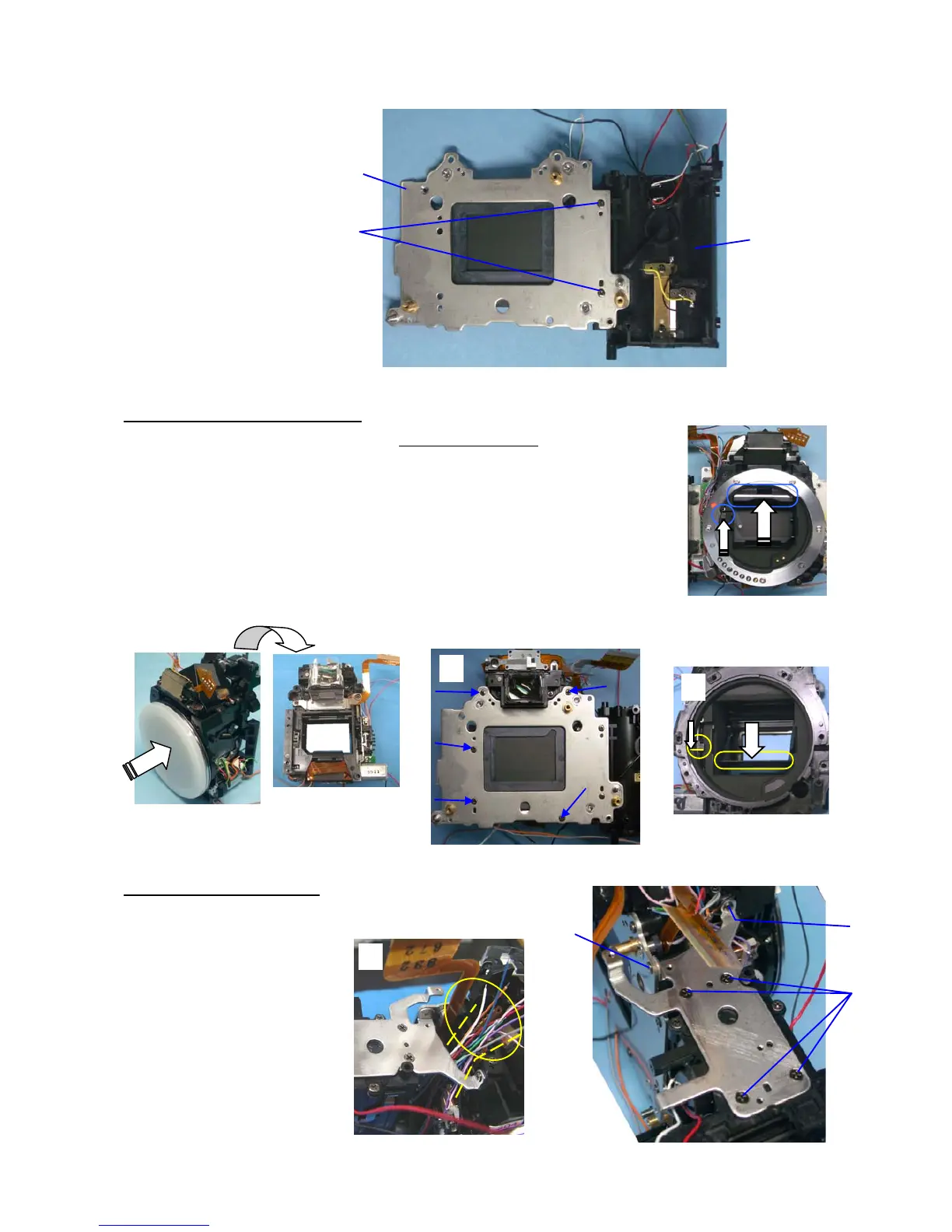

3. 0-A101 (Front housing block)
① Apply DC 2V to the mirror motor, and set mirror up position.
(Red --- +)
② To prevent the damage of SI-LED, attach mount cover. Then put downward.
③ Put main body to the front housing without pinching lead wire or flex.
④ TY-CNS2.0x5.0 x5
⑤ Apply DC2V to the mirror motor, and set mirror down position.
[Caution] Do not make scratch on the eyepiece lens while working.
4. A6 (Left shoulder plate)
① A6 -- Arrange the lead wires and flex as shown in figure.
② TY-CSM1.7x4.0 x4
③ TY-CNL1.7x4.0
④ CNL-D1.7x2.5
④
②
③
①
②
④
⑤
①
④
③
②
To Next Page
