8

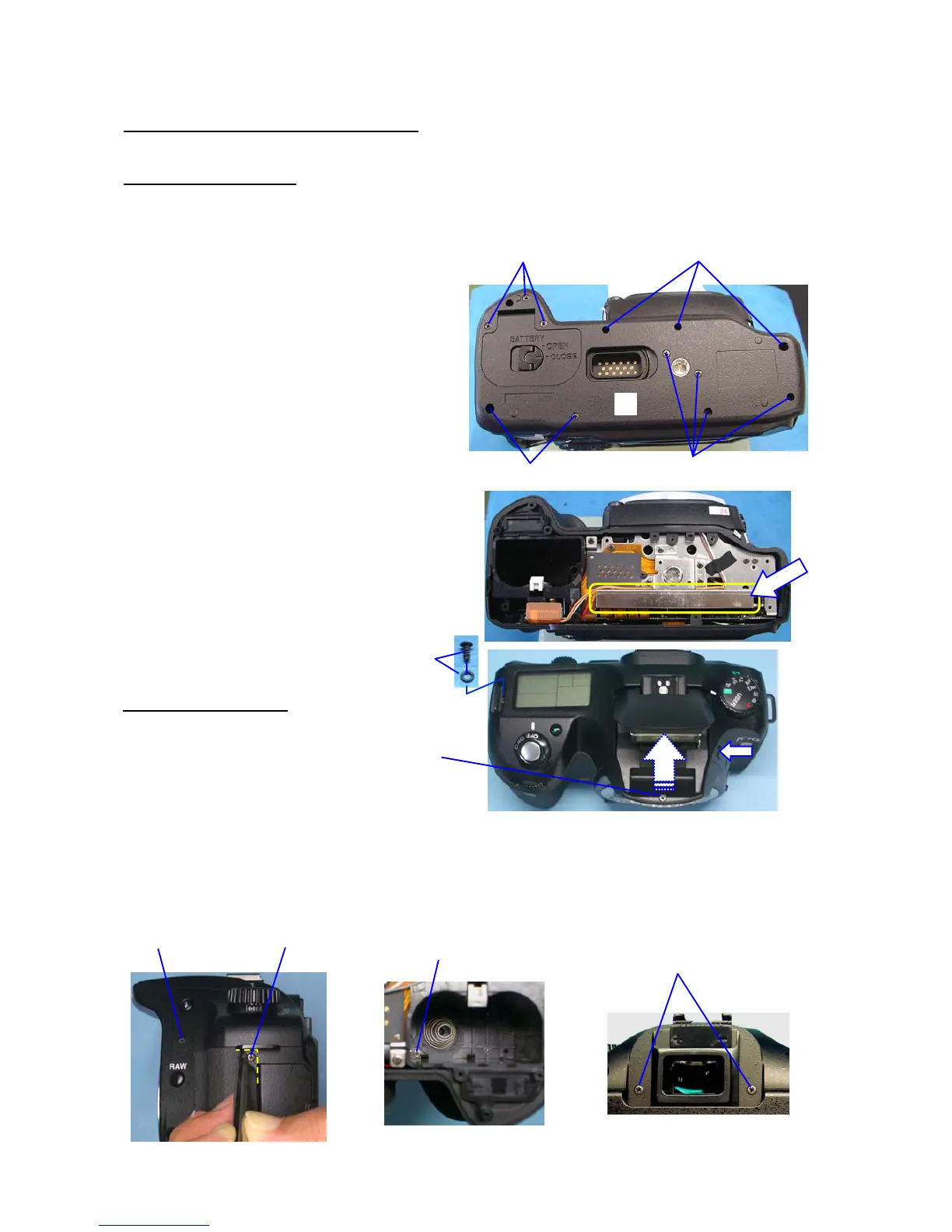

DISASSEMBLY AND ASSEMBLY PROCEDURES
1. Disassembly procedure of main body
[Preparation] Remove the Hot shoe cover, Eye cap and Battery from the main body.
1. A401 (Bottom cover)
[Caution]
There is strong magnet in the CCD/SR blocks therefore please do not place a screw or magnetic card near the
camera after the outside cover is removed.
① Screw (x5)
② Screw (x7)
③ Remove A401, battery cover.
[Caution]
There is SR/CCD block at bottom
side of the camera as shown with arrow, therefore
please pay attention the handling of the camera.
2. A301（Top cover）
① Screw, O ring
② Screw … Pop-up the flash
③ Screw
④ Screw… Peel off the grip rubber
⑤ Screw…(Inside of battery chamber)
⑥ Screw (x2)
[Caution] Be careful the electric shock where flash circuit
board is inside the cover.
①
②
To Next Page
