AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Appendix, Examples
26.9.2013
101

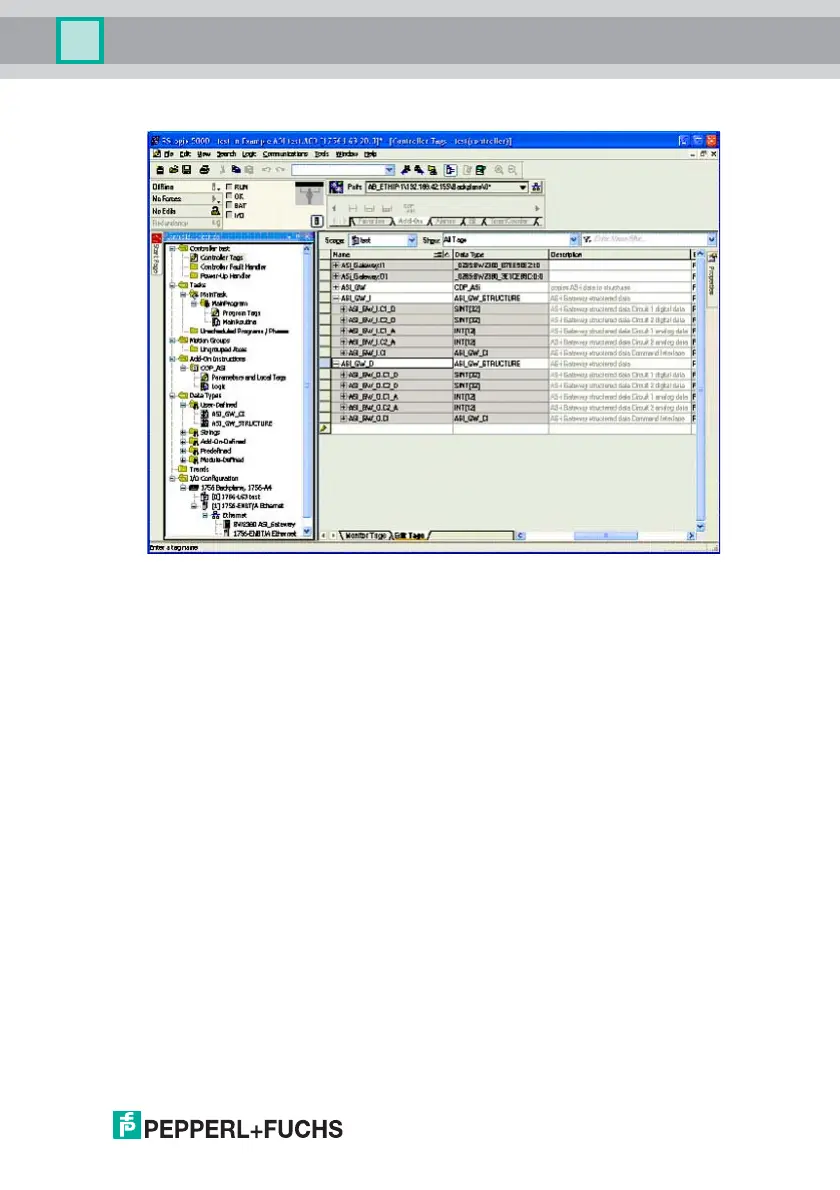

16. The AS-i Gateway data can now be found in data structures.
15.2 The first commissioning with CompactLogix
This chapter shows exemplarily the start-up of the AS i 3.0 EtherNet/IP Gateways
with the software RSLogix 5000 CompactLogix, version 13.00.
! Start the software RSLogix 5000.
! Select New from the menu File.
