Pepperl+Fuchs VBG-ENXK20-DMD-EV - Commissioning; Switching to Advanced Display Mode; Select Modbus TCP

AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Installation
26.9.2013
15
6.5 Commissioning
6.5.1

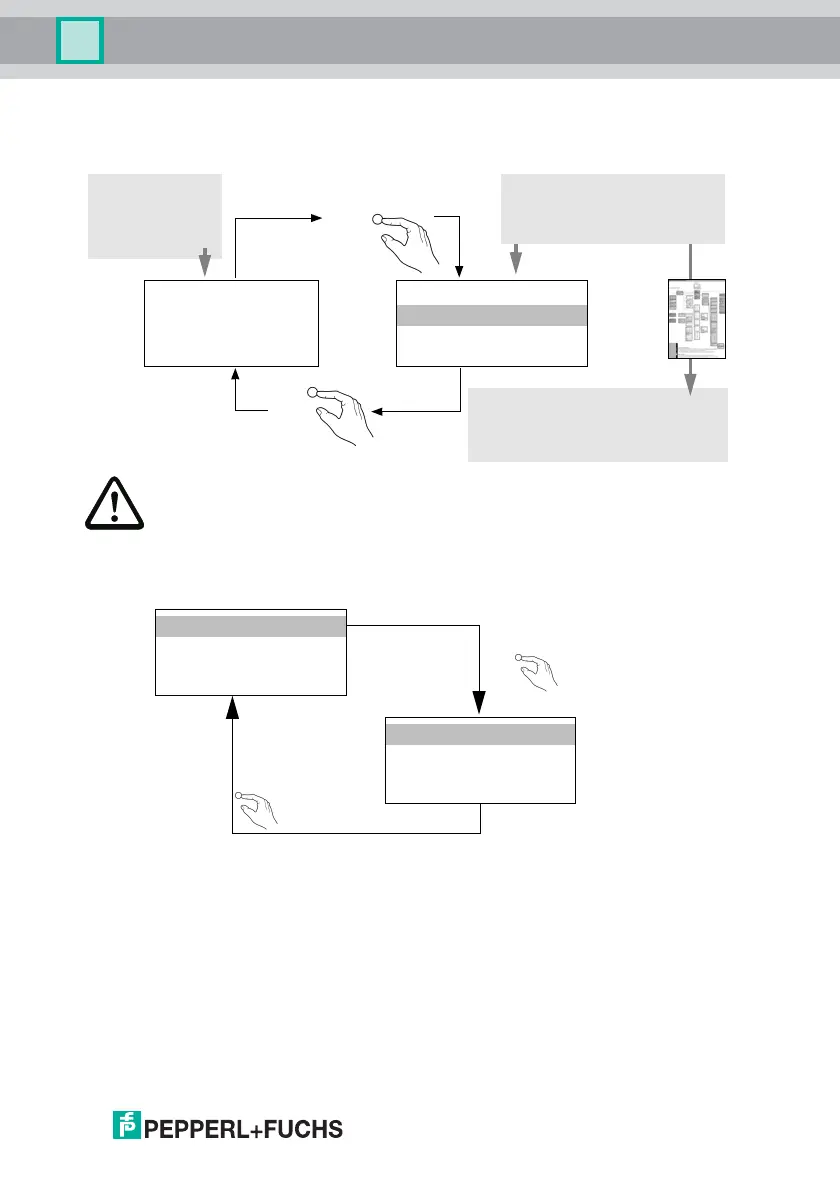

Switching to advanced display mode
6.5.2 Select Modbus TCP
menu structure see additional page
OK
ESC
classical display
LCD
1.12A
UNKNOWN SLAVE
LCD
ETHERNET
QUICK SETUP
SLAVE ADR TOOL
advanced display mode
SLAVE TEST TOOL
The device handels multiple protocols! Please select one of them during the initial
operation.
ESC
ETHERNET
QUICK SETUP
SLAVE ADR. TOOL
SLAVE TEST TOOL
MODBUS TCP X
ETHERNET/IP
OK
