AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Data Transfer using CIP Messages in RSLogix5000
13.2 Example 1: read LAS

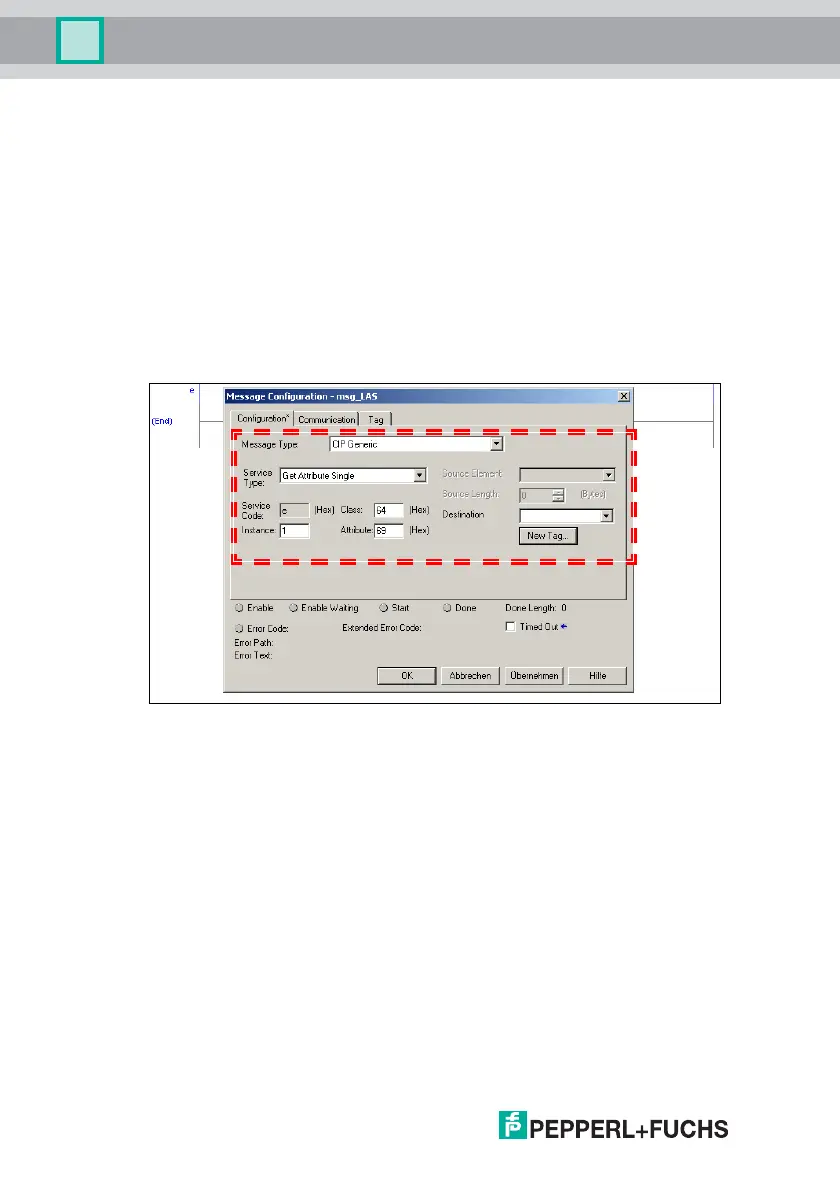

! Select the "Configuration" tab in the "Message Configuration" window
! Select:
! Message Type: CIP generic
! Service Type: Get attribute single
! Map:
! For "Class": "64"
! For "Instance": "1" (for AS-i circuit 1)
! For "Attribute": "69"
! As "Destination", create a new tag or select an existing tag to hold the incom-
ing data.
