AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Electrical connection

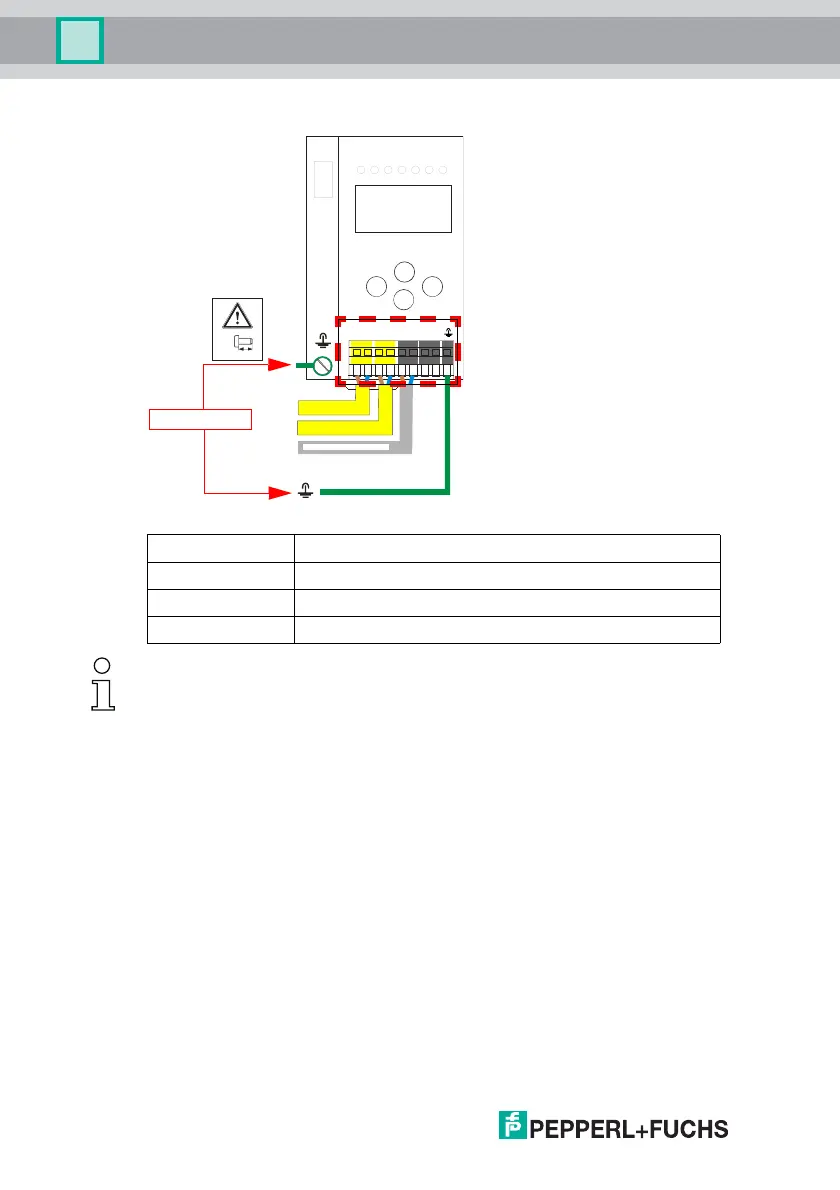

7.4.1 Electrical connection VBG-ENX-K20-D
+
-
+
-
+
-
ASI +PWR– (max. 8A)
+ASI –
+ASI –
+ASI - +ASI -
NC NC
ASI
+PWR
-
M4
5 mm max!
Function ground
Terminal Signal / Description
+AS-i–
Connection to AS-i Circuit
ASI +PWR–
Supply voltage for AS-i Circuit (max. 8 A)
FE
Function ground
Information!
For additional information, please refer to the section <AS-i and power supply terminal
assignments>.
