AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Electrical connection
7. Electrical connection

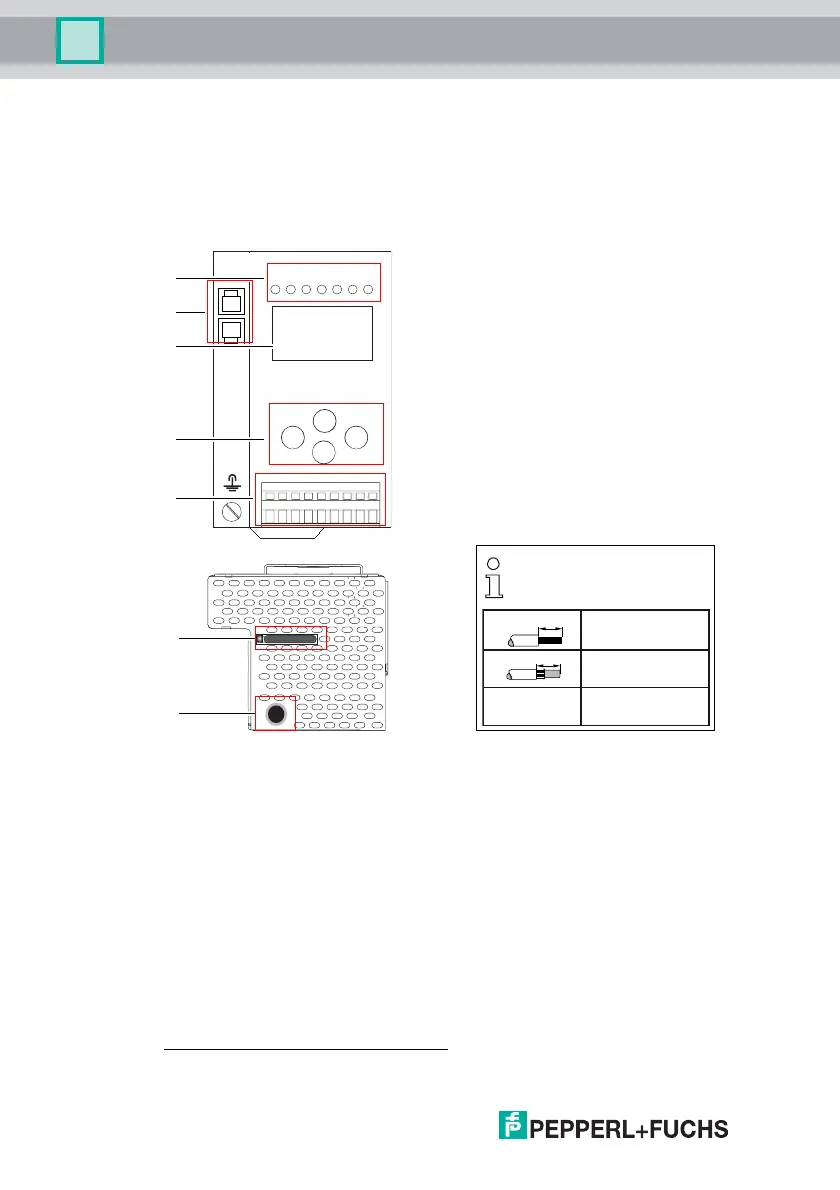

7.1 Overview of terminals, indicators and operating elements
7.1.1 VBG-ENX-K20-D, VBG-ENX-K20-DMD, VBG-ENX-K20-DMD-EV
Legend:
[1] LEDs
[2] Ethernet interface
[3] LC display
[4] Buttons
[5] Terminals: Supply voltage and AS-i circuit
[6] Chip card
[7] RS232 diagnostics port
1
1. Only together with AS-i Control Tools
+
-
+
-
+
-
[6]
[7]
10
10
AWG 24 ... 12
0,2 ... 2,5 mm
2
0,2 ... 2,5 mm
2
[3]
[4]
[5]
[2]
[1]
