13. Data Transfer using CIP Messages in RSLogix5000
This chapter explains the data transfer of AS-i 3.0 EtherNet/IP Gateways using
CIP Messages in RSLogix5000.
13.1 MSG instruction and Message Type Tag

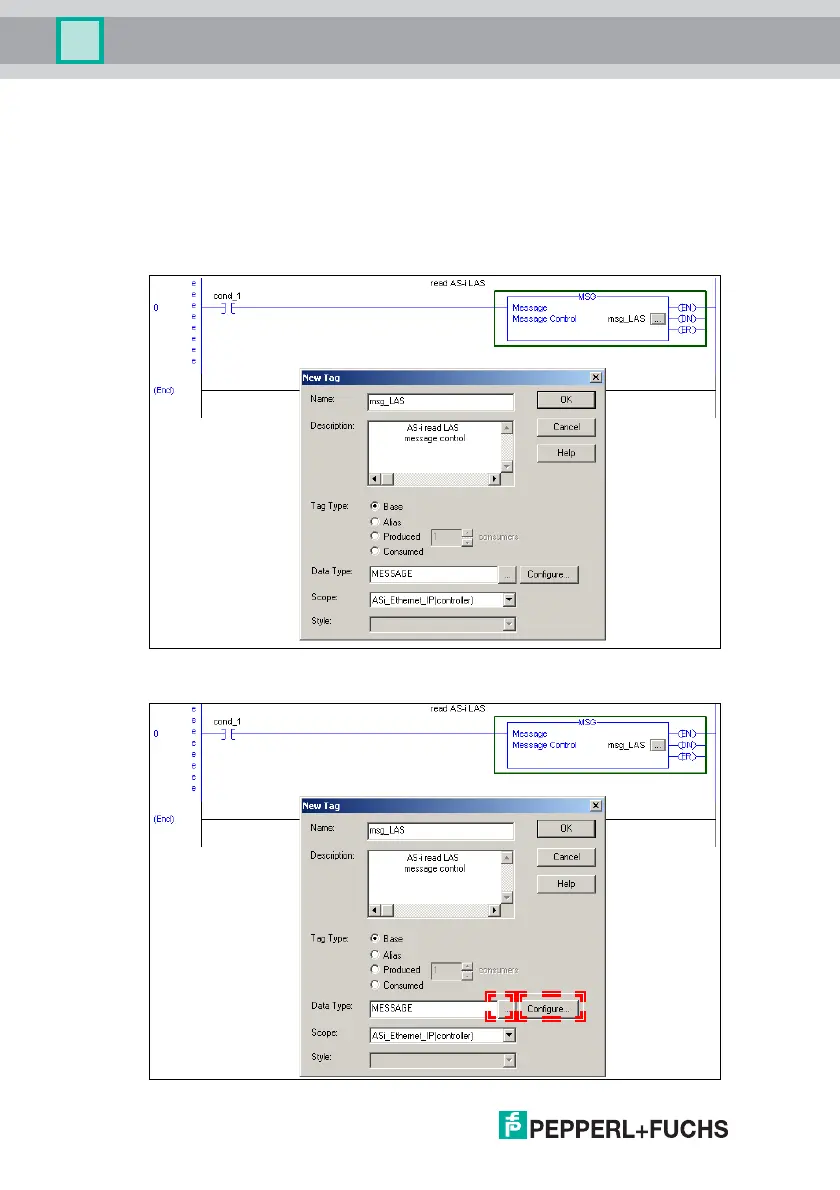

! Include a MSG instruction.
! Create a new MESSAGE-type tag as control tag for the instruction.
! Select "Configure" on the "New Tag" window or "..."' next to the tag name to
open the "Message Configuration" window.
