AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Electrical connection
26.9.2013
29

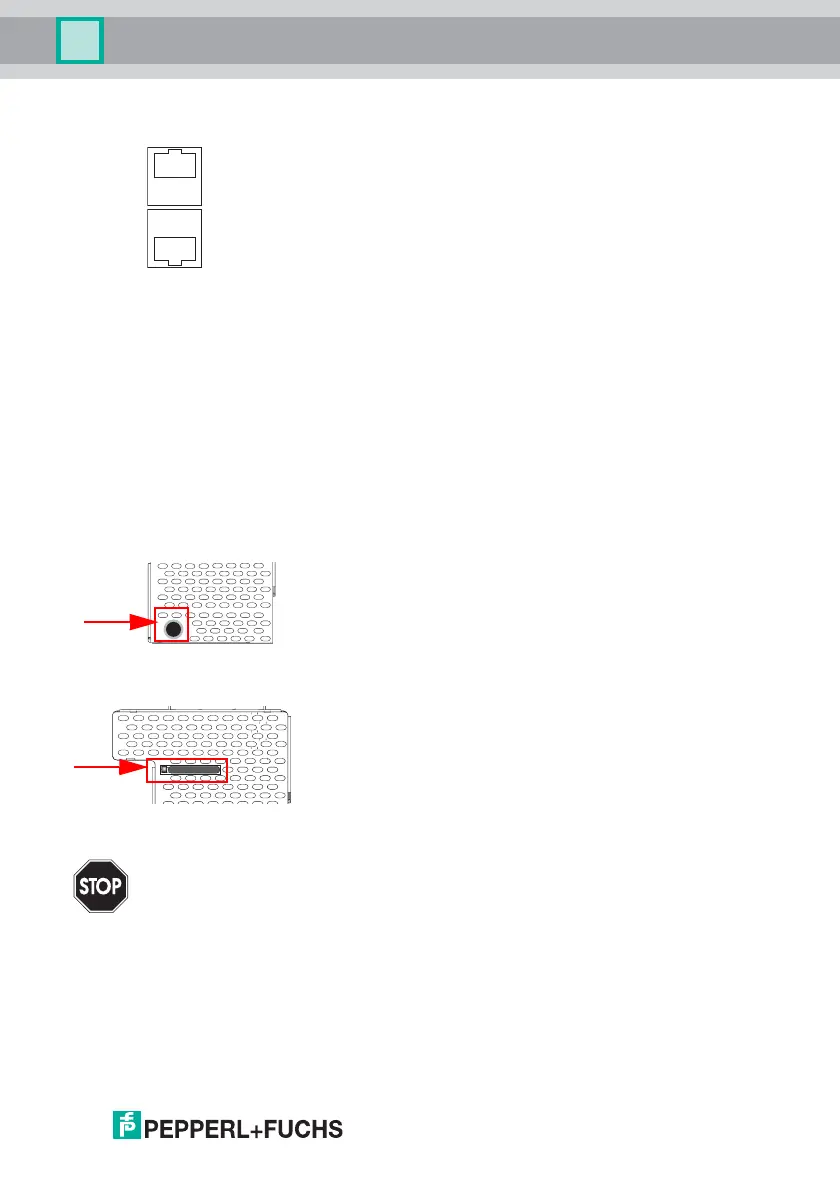

7.5 Ethernet interface
The ethernet interface consists of two RJ-45 sockets. It is placed on the left hous-
ing side (see section <Overview of terminals, indicators and operating ele-
ments>). The ethernet interface is driven according to the IEEE 802.3
7.6 Diagnostics interface
The service and diagnostics interface (in conjunction with AS-i Control Tools
software) is used for communication between the PC and the unit.
7.6.1 Diagnostics port RS 232
The service and diagnostics interface is configured as a mini DIN-6 female and it
is placed at the top of the housing (see section <Overview of terminals, indicators
and operating elements>).
7.7 Chip card
The configuration is stored in a fixed installed EEPROM and can be overwritten
by the chip card. The chip card does not have to be inserted in operation.
A
B
Warning!
Power must always be turned off when removing or inserting the chip card!
