26.9.2013
104
AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Appendix, Examples
38/36
1
bytes für command interface

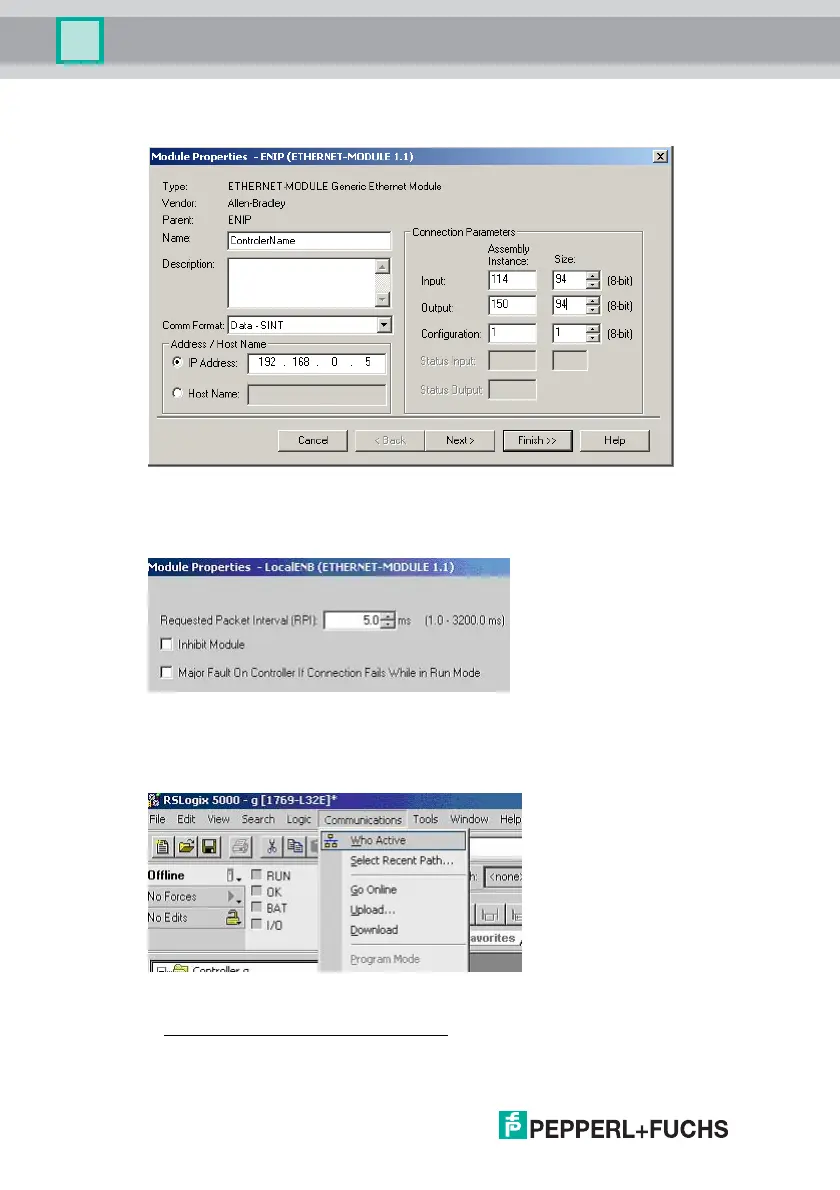

! Click the button Next
! Please enter in the data field Request Packet Interval (RPI) a time (≥ 5ms).
! Please click on the Finish button.
! Now you can begin programming.
! For the first downloading of the software the transmission path must be indi-
cated. Select for this purpose from the menu Communications the entry:
Who Active.
! With a double click on the pictogram Processor you can begin with the down-
load.
1. Byte length depending on the selected "Mailbox Mode" (see chap. <Mailbox mode (command in-
terface length)>
