AS-i 3.0 EtherNet/IP+Modbus TCP Gateway
Appendix, Examples
26.9.2013
99
13. The Add-On Instruction “COP_ASi” and the User-Defined Data Types
“ASI_GW_CI” and “ASI_GW_STRUCTURE” will be created.

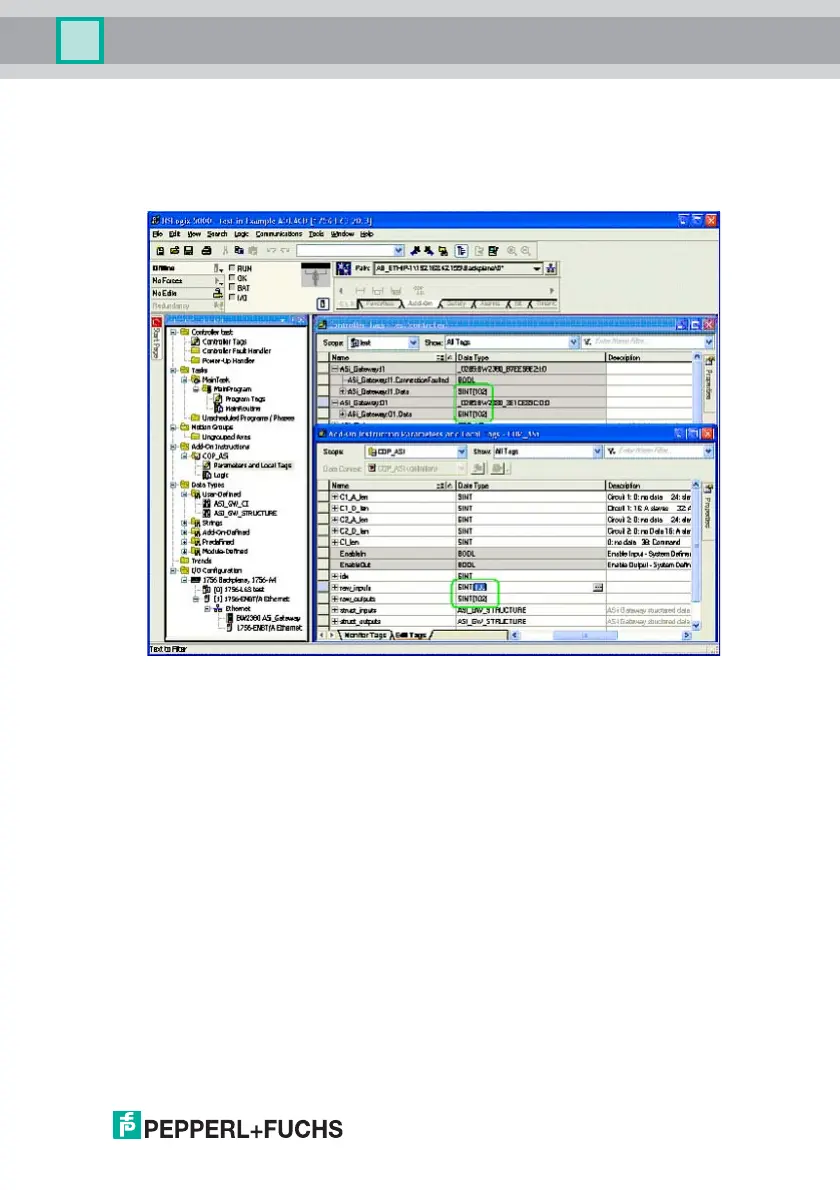

! Open the AOIs “Parameters and Local Tags” and adapt the size of the
parameters “raw_inputs” and “raw_outputs” to the actual size of the AS-i
Gateways data.
