CHAPTER 4
40 PerkinElmer Life and Analytical Sciences
The Protocols Tree
The Protocols Tree displays up to sixty available protocol flag numbers and the
assay names that you have associated to flag numbers. Existing reports are also
shown in this view. During protocol execution, this window uses different symbols
to provide a visual indication of which protocol is being executed, which protocols
have remaining cycles, and which protocols have been completed.

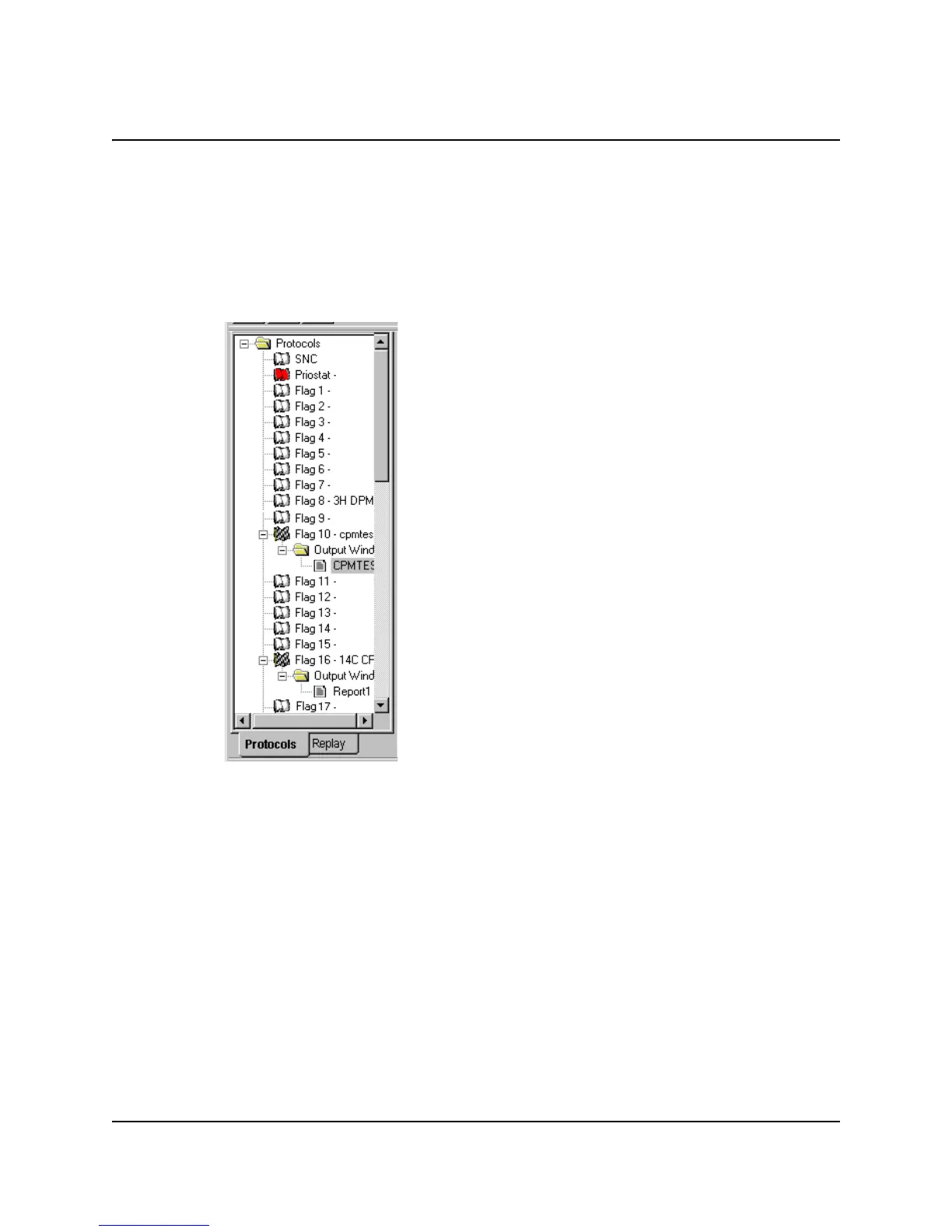

Figure 4-5 Protocol Tree
