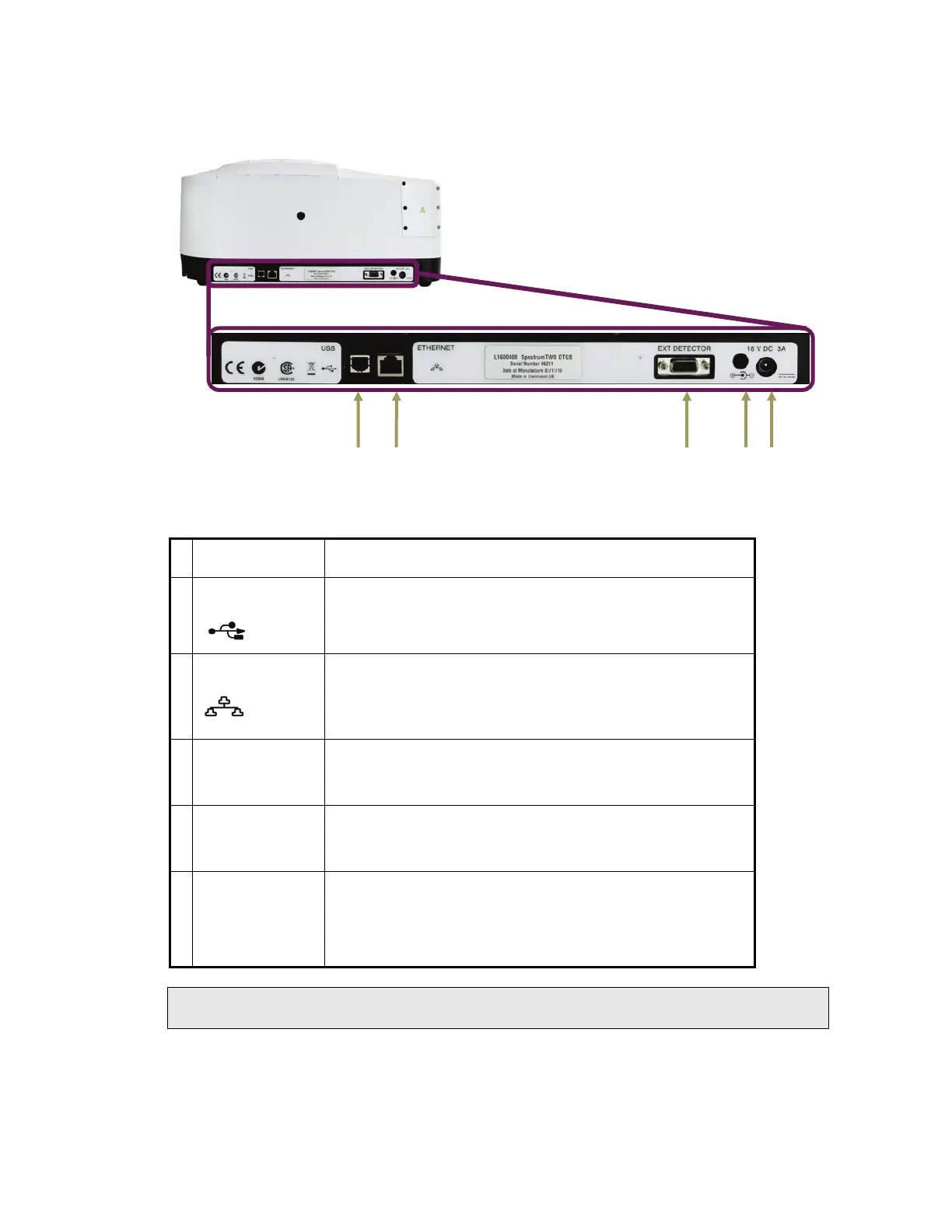

The features on the rear of the spectrometer are shown in Figure 10.
Figure 10 Communication ports on the Spectrum Two
Table 1 Communication ports
Port/LED Use
A USB port
This is the standard interface between the PC and the
instrument.
B ETHERNET port
Ethernet connector.
This is the standard interface between a Local Area Network
(LAN) and the instrument.
C EXT DETECTOR
port
This port enables to you power the optional wireless router,
accessory alignment tool, or connect an external accessory.
D
Rear diagnostic
LED
Provides information on the status of the instrument.
Refer to Table 2 on page 34.
E DC power port The DC power port is used to connect the spectrometer to
the power supply. You can use the mains power supply
adaptor and cable supplied, or you can use the optional
battery pack or car adaptor.
NOTE: For more details of the port connector types, refer to
Appendix 1: Connector Details
on page 118.
