44 . Spectrum Two N User's Guide
3. If you are installing a NIRM, pivot the accessory on the ledge at the front of the sample
area), and then tip it backwards). Push it firmly, ensuring that the top of the accessory
connects properly with the lid of the instrument.
If the accessory is pivoted too far forward on the sample area ledge it will not move
correctly into position.
OR
For other baseplate-mounted accessories, drop the accessory baseplate gently onto the
ledge (Figure 26) and then slide it horizontally into the sample compartment.
Push the accessory firmly to ensure that the connector on the rear of the baseplate
engages properly with the spectrometer connector.

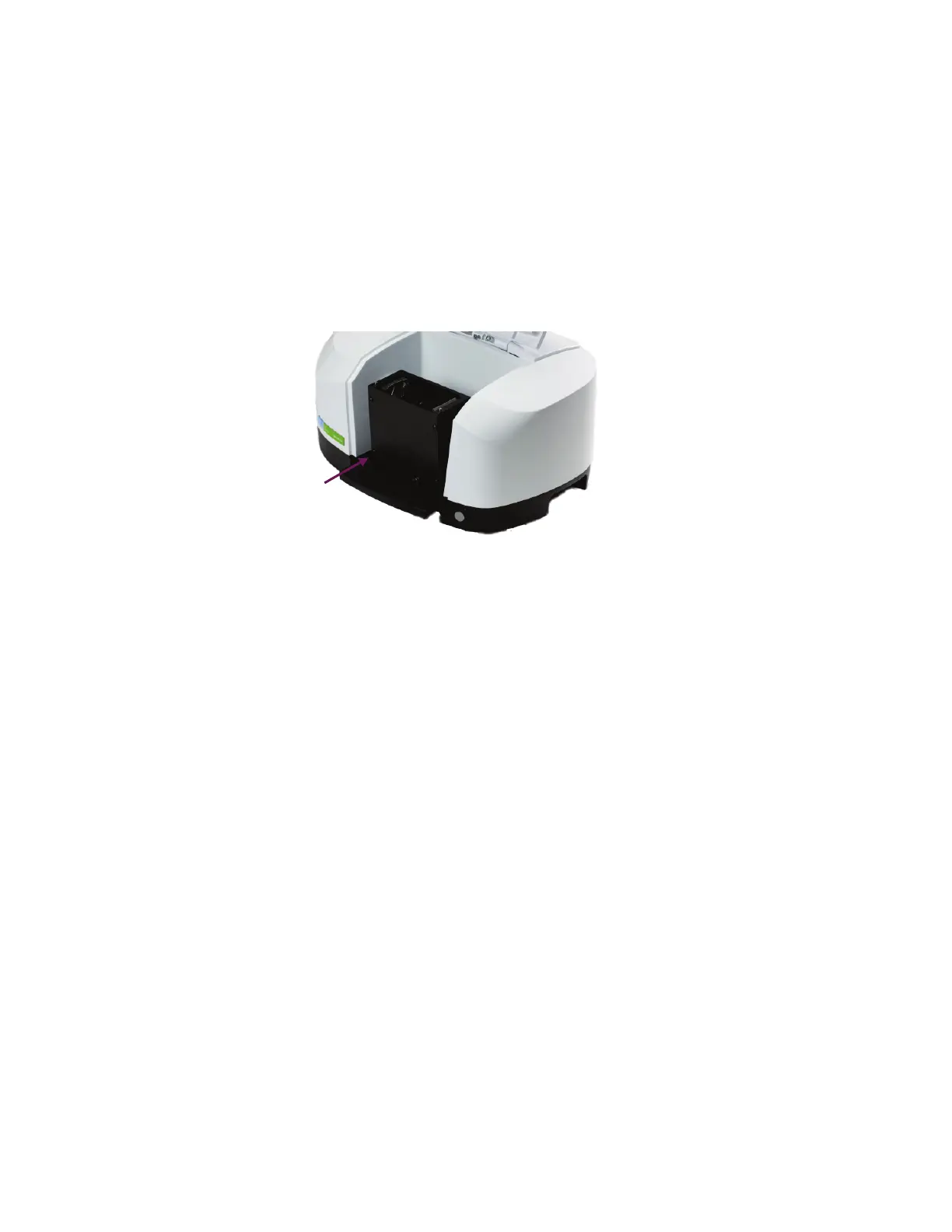

Figure 26 Installing the sampling accessory
into connector
