Perkins 1106C - Page 105

KENR6933 105
Troubleshooting Section
Table 37
P2 Pin Connections
Sensor Pin
Function Fuel Rail Pressure
Sensor
Intake Manifold
Pressure Sensor
Oil Pressure Sensor
1
Volts (5 Volts)
48 46 47
2
Ground
40 38 39
3 Signal 51
55
56
Table 38
P1 O EM Connector
Sensor Pin Function Analog Throttle Sensor 1 Analog Throttle
Sensor 2
A
5 Volt Sensor Supply
41 42
B
Ground
33 34
C Signal 54
55
g01249575

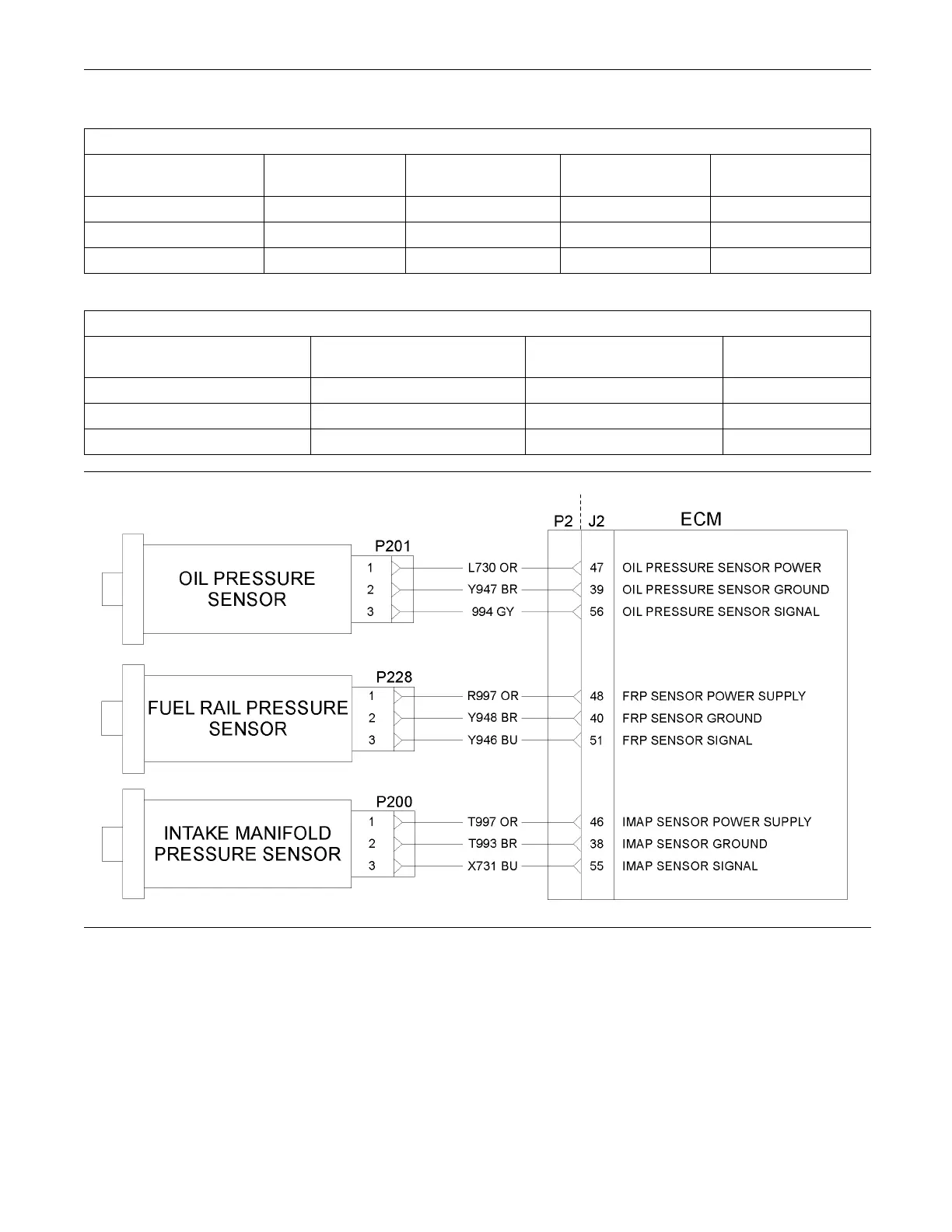

Illustration 18
Typical e xample of the schematic for t he sensors
