106 KENR6933
Troubleshooting Section

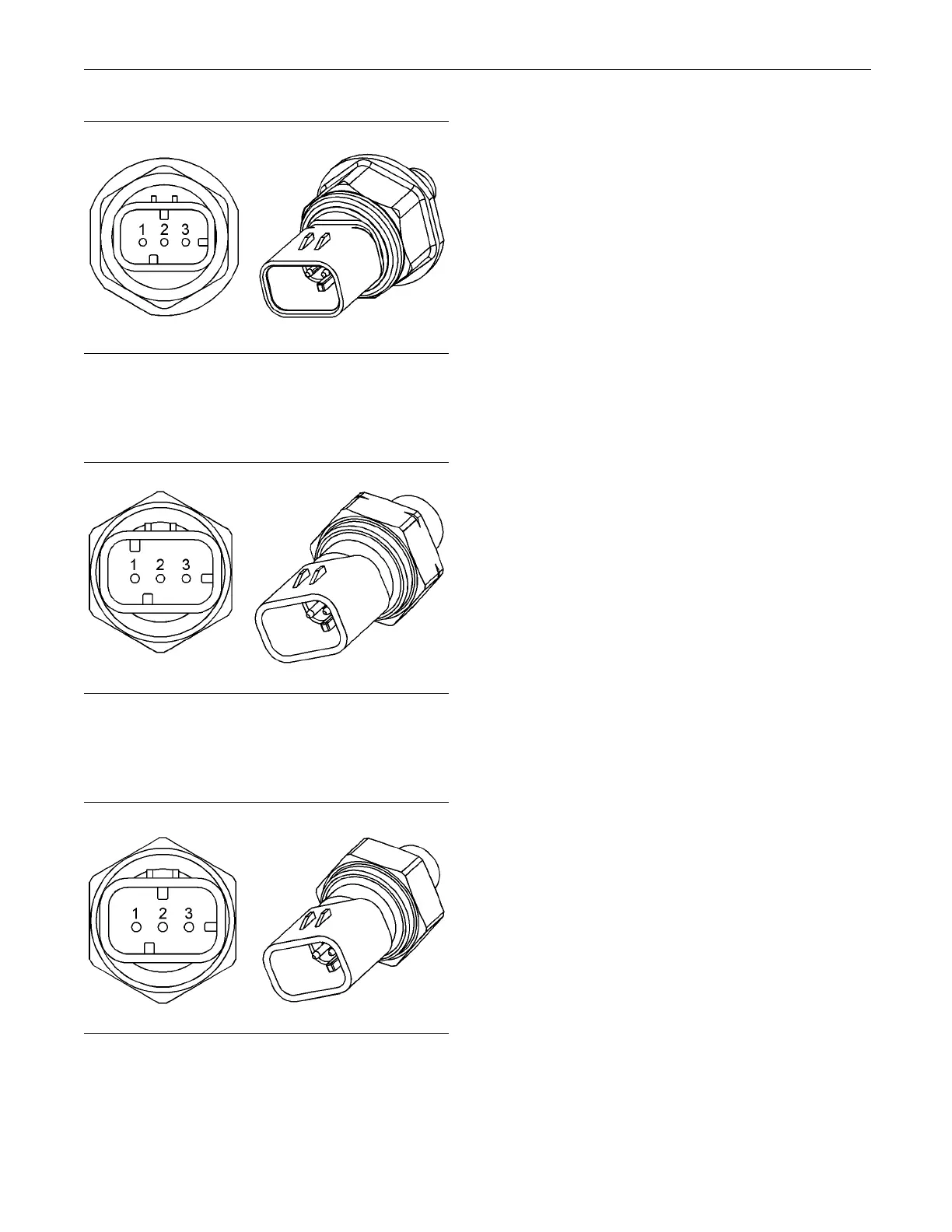

g01173224
Illustration 19
Typical exam ple of the fuel rail pressure sensor
(1) Voltage supply (Vs)
(2) Ground (GND)
(3) Signal (SIG)
g01173225
Illustration 20
Typical example of the intake manifold pressure sensor
(1) Volta ge Supply (V s)
(2) Ground (GND)
(3) Signal (SIG)
g01173226
Illustration 21
Typical exam ple of the oil pres sure s ensor
(1) Volta ge Supply (V s)
(2) Ground (GND)
(3) Signal (SIG)
