KENR6933 107
Troubleshooting Section
g01173227

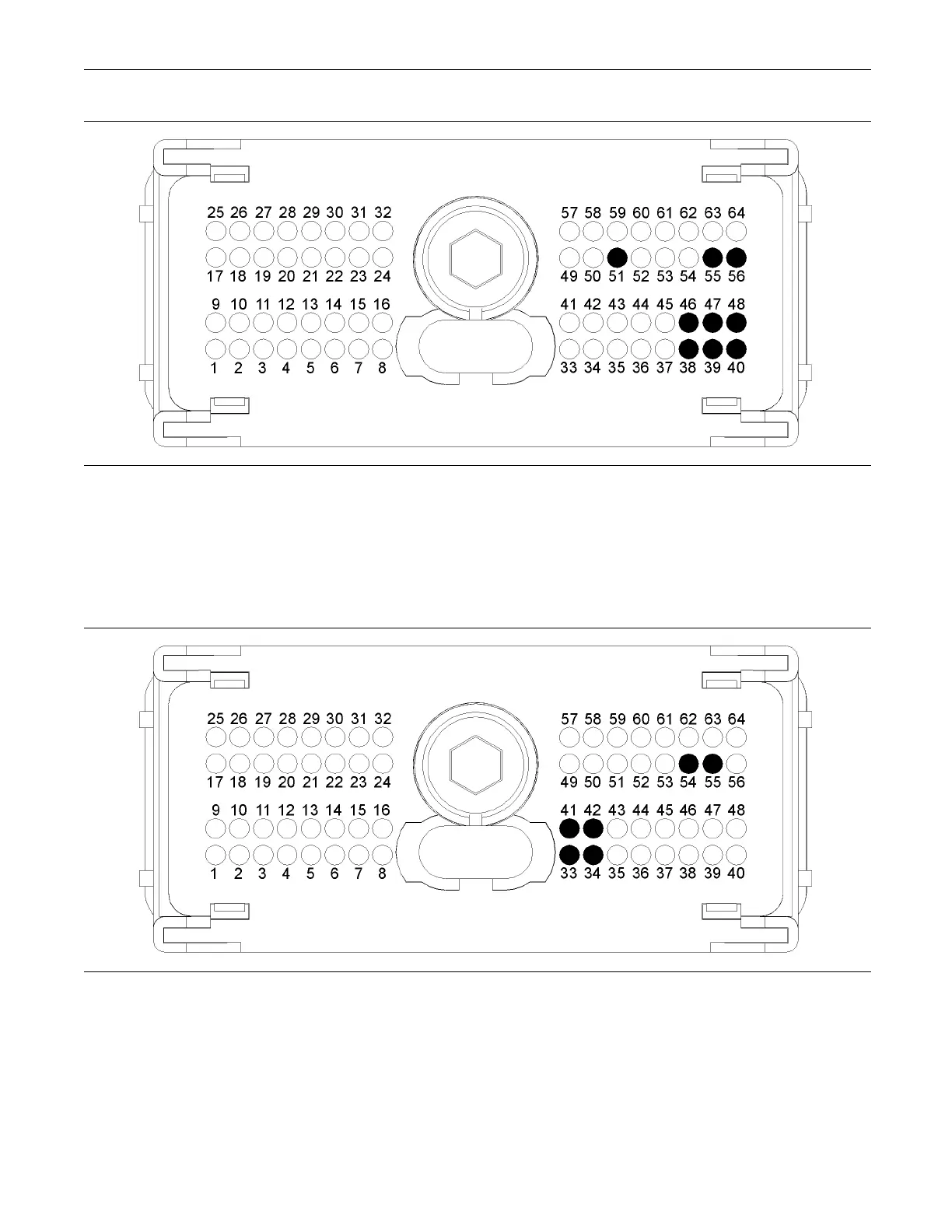

Illustration 22
Typi cal examp le of the P2 pressure sensor pin locat ion s
(38) Ground (GND) Intake Manifold Pressure
Sensor
(39) Ground (GND) Oil Pressure Sensor
(40) Ground (GND) Fuel Rail Pressure
Sensor
(46) Voltage supply (5 Volts) Intake Manifold
Pressure Sens or
(47) Voltage supply (5 Volts) O il P ressure
Sensor
(48) Voltage supply (5 Volts) Fuel Rail
Pressure Sen sor
(51) Signal (SIG) Fuel Rail Pressure S ensor
(55) Signal (SIG) Intake Manifold Pressure
Sensor
(56) S ignal (SIG) Oil Pressure Sensor
g01207347
Illustration 23
Typical
example of the P1 pin locations for the analog throttle demand sensor
(33) Throttle 1 ground (GND)
(34) Throttle 2 ground (GND)
(41) Throttle 1 voltage supply (5 Volts)
(42) Throttle 2 voltage supply (5 Volts)
(54) Throt tle 1 position
(55) Throt tle 2 position
