Perkins 1106C - Page 115

To Next Page

To Previous Page

KENR6933 115

Troubleshooting Section

g01244178

Illustration 27

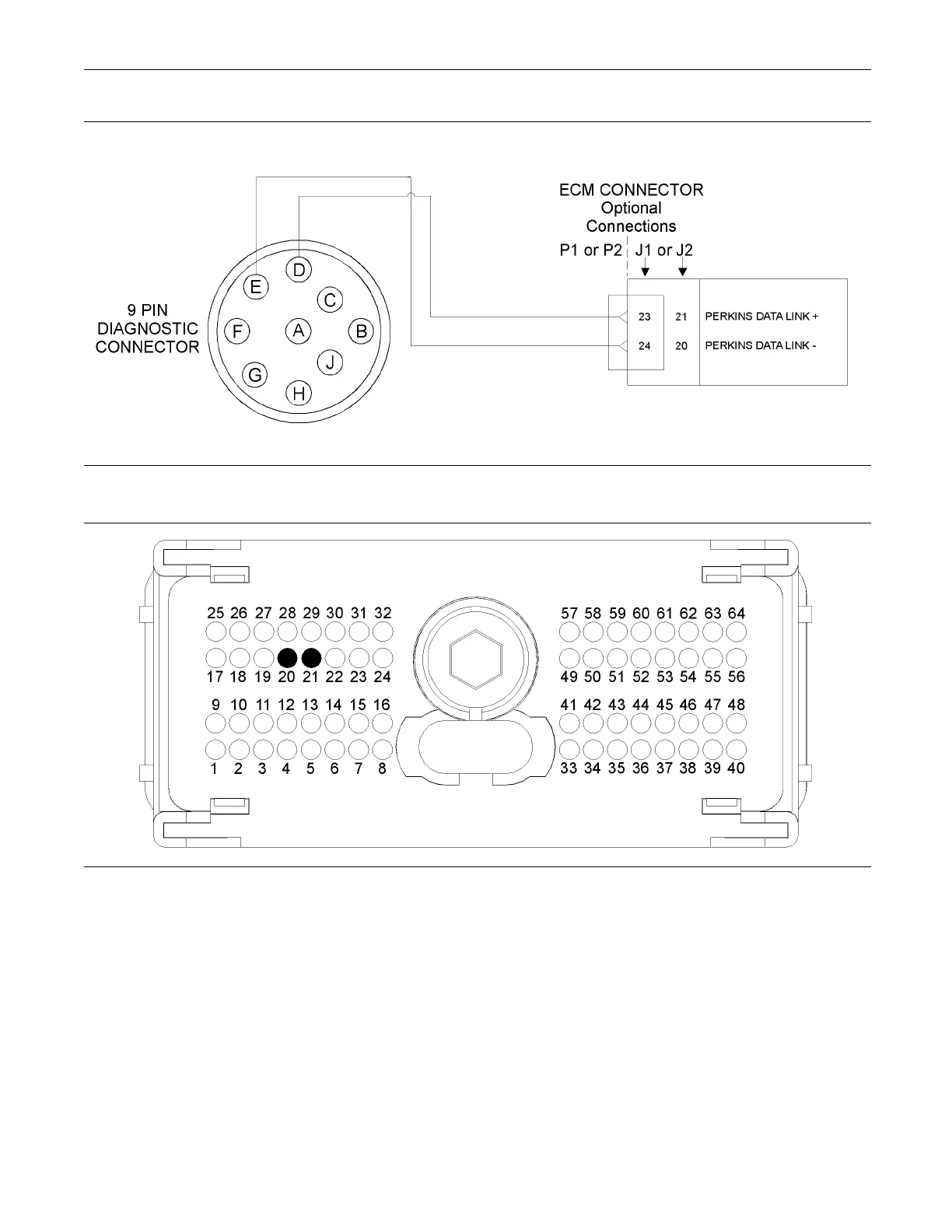

Schematic of the diagnostic conne ctor an d the data link conne ctor

g01208535

Illustration 28

Typical view of the P2 pin loca tions for th e diagnostic a nd data link connectors

(20) D ata link - (21) Data link +
