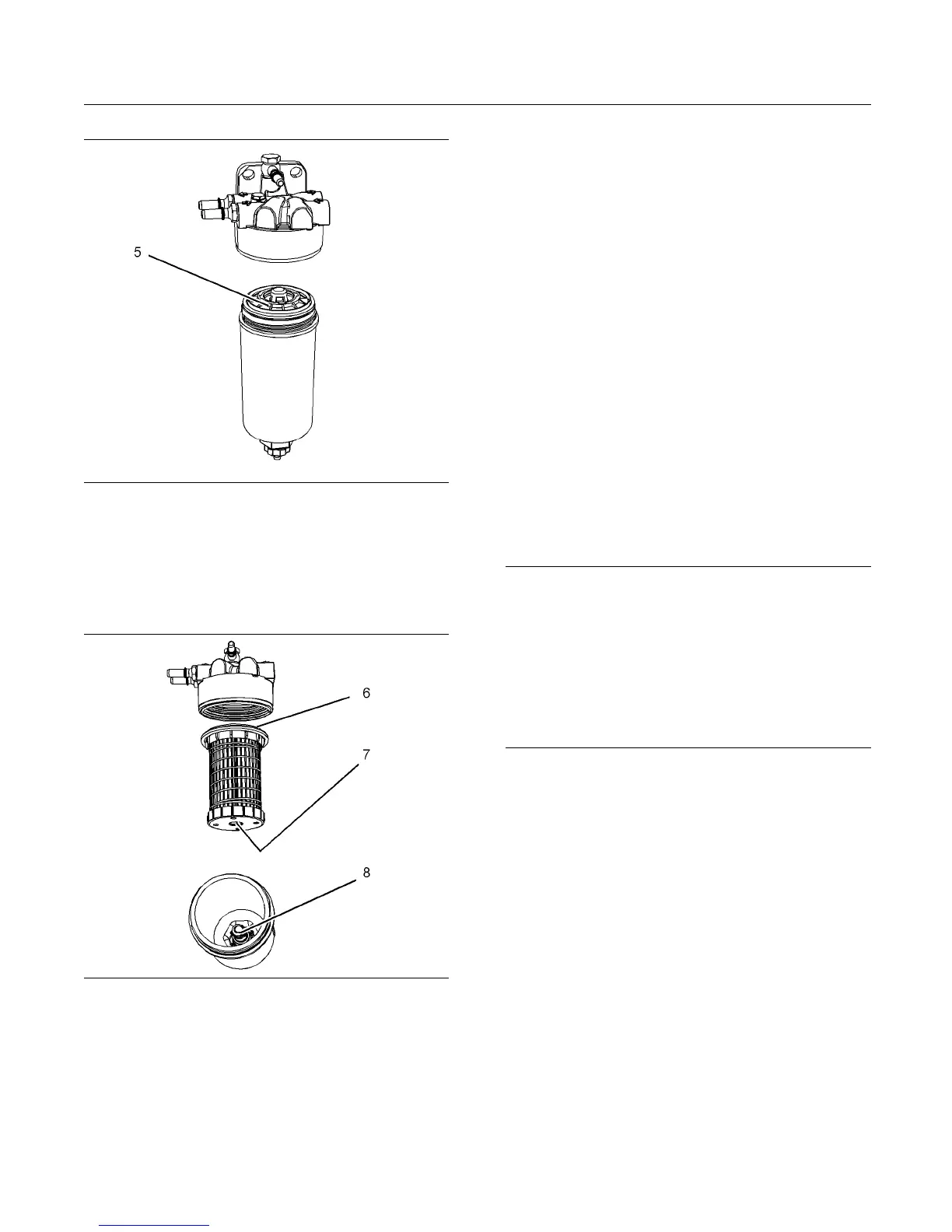

g02546456
Illustration 67
Typical e xample
7. Rotate the fi lter element counterclockwise and
remove the filter element (5). Clean the filter bowl.
Install the Element
g02148528
Illustration 68
Typical e xample
1. Locate the thread in the filter element (7) onto the
threads (8). Spin on the element. Do not tighten.
2. Lubricate the O ring seal (6) with clean engine oil.
Do N OT fill the filter bowl (2) with fuel before the
filter assembly is installed.
3. Do not use a tool
in order to install the filter
assembly. Tighten the assembly by hand. Install
the filter bowl (2) and align with your temporary
Marks.
4. Tighten the drain valve (3). Turn the fuel supply
valvetotheO
N position.
5. The Primary filter element must be replaced at the
same time as
the secondary filter element. Refer
to the Operation and Maintenance Manual , “Fuel
System Primary Filter (Water Separator) Element
- Replace”.
6. Prime the fuel system. Refer to the Operation and
Maintenan
ce Manual, “Fuel System - Prime” for
more information.
i02348492
Fuel Ta nk Water and Sed im e nt
-Drain
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting, and repair of the product. Be prepared
to collect the fluid with suitable containers before
opening any compartment or disassembling any com-
ponent containing fluids.
Dispose of all fluids according to local regulations and
mandates.
Fuel Tank
Fuel quality is critical to the performance and to the
service life of the engine. Water in the fuel can cause
excessive wear to the fuel system.
Water can be introduced into the fuel tank when the
fuel tank is being filled.
Condensation occurs during the heating and cooling
of fuel. The condensation occurs as the fuel passes
through the fuel system and the fuel returns to the
fuel tank. This causes water to accumulate in fuel
tanks. Draining the fuel tank regularly and obtaining
fuel from reliable sources can help to eliminate water
in the fuel.
Drain the Water and th e Sediment
Fuel tanks should contain some provision for draining
water and draining sediment from the bottom of the
fuel tanks.
