18 SEBU8603-01
Safety Section
Engine Electronics

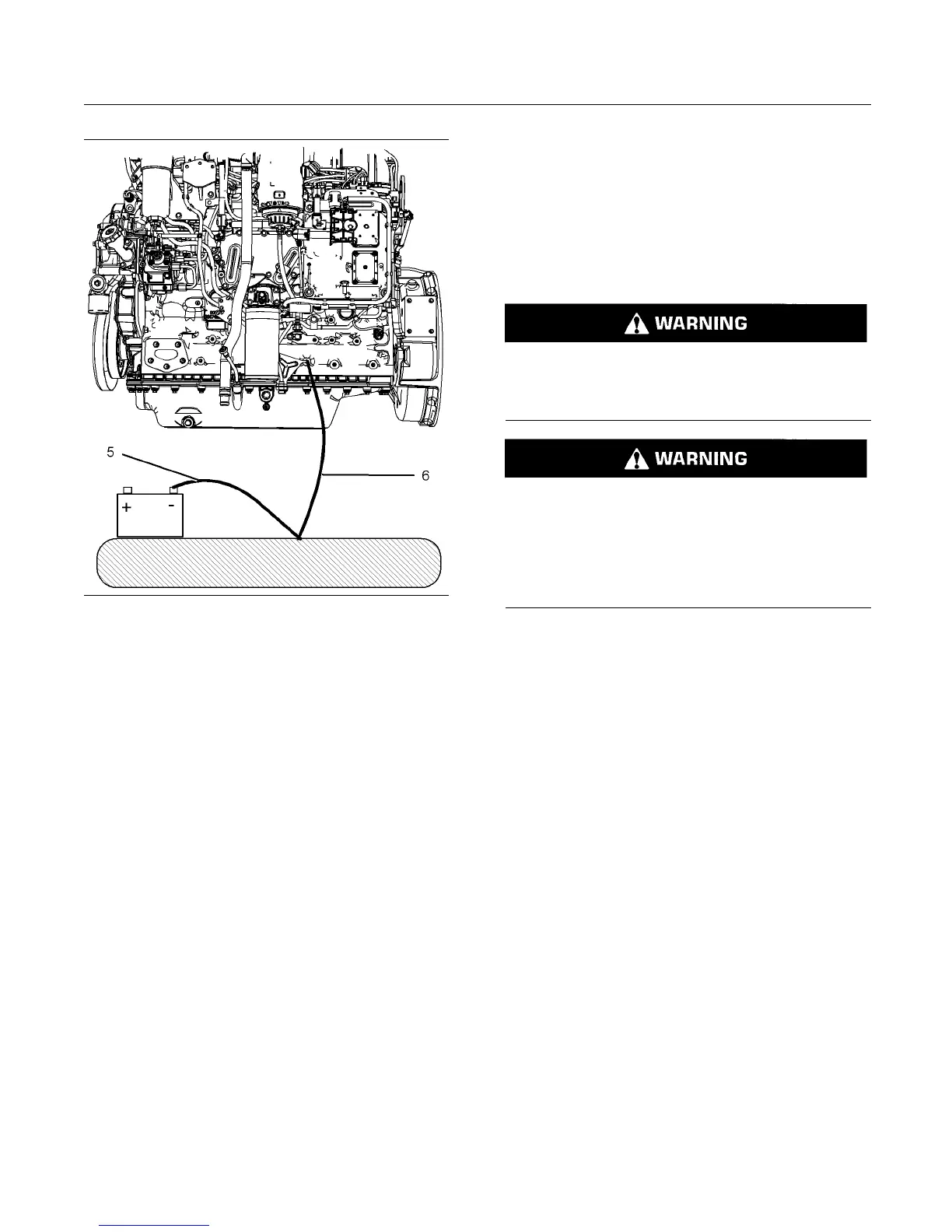

g02383099
Illustration 16
Typical
example
(5) Ground to the battery
(6) Ground to the cylinder block
Correct grounding for the engine electrical system
is necessary for optimum engine performance
and re
liability. Incorrect grounding will result in
uncontrolled electrical circuit paths and in unreliable
electrical circuit paths.
Uncontrolled electrical circuit paths can result in
damage to the crankshaft bearing journal surfaces
and to
aluminum components.
Engines that are installed without engine-to-frame
grou
nd straps can be damaged by electrical
discharge.
To en
surethattheengineandtheengineelectrical
systems function correctly, an engine-to-frame
ground strap with a direct path to the battery must be
use
d. This path may be provided by way of a direct
engine ground to the frame.
The
connections for the grounds should be tight and
free of corrosion. The engine alternator must be
grounded to the negative “-” battery terminal. The
gr
ounding wire must be adequate to handle the full
charging current of the alternator.
The power suppl
y connections and the ground
connections for the engine electronics should always
be from the isolator to the battery.
i03642610
Engine Electronics
Tampering with the electronic system installation
or the OEM wiring installation can be dangerous
andcouldr
esult in personal injury or de ath and/or
engine damage.
Electrical Shock Hazard. The electronic unit injec-
tors use DC voltage. The ECM sends this voltage
to the electronic unit injectors. Do not come in
contact with the harness connector for the elec-
tronic unit injectors while the engine is operating.
Failure to follow this instruction could result in
personal injury or death.
This engine has a comprehensive, programmable
Engine Monitoring System. The Electronic Control
Module (ECM) has the ability to monitor the engine
operating conditions. If any of the engine parameters
extend outside an allowable range, the ECM will
initiate an immediate action.
The following actions are available for engine
monitoring control:
•
Warning
•
Derate
•
Shutdown
The following monitored engine operating conditions
have the ability to limit engine speed and/or the
engine power:
•
Engine Coolant Temperature
•
Engine Oil Pressure
•
Engine Speed
•
Intake Manifold Air Temperature
•
Engine Intake Throttle Valve Fault
•
W astegate Regulator
