Engine Air Cleaner Element (Single Element) - Inspect/Replace
Note: Refer to “
Inspecting the Primary Air Cleaner
Elements”.
Inspecting th
e Primary Air Cleaner
Elements

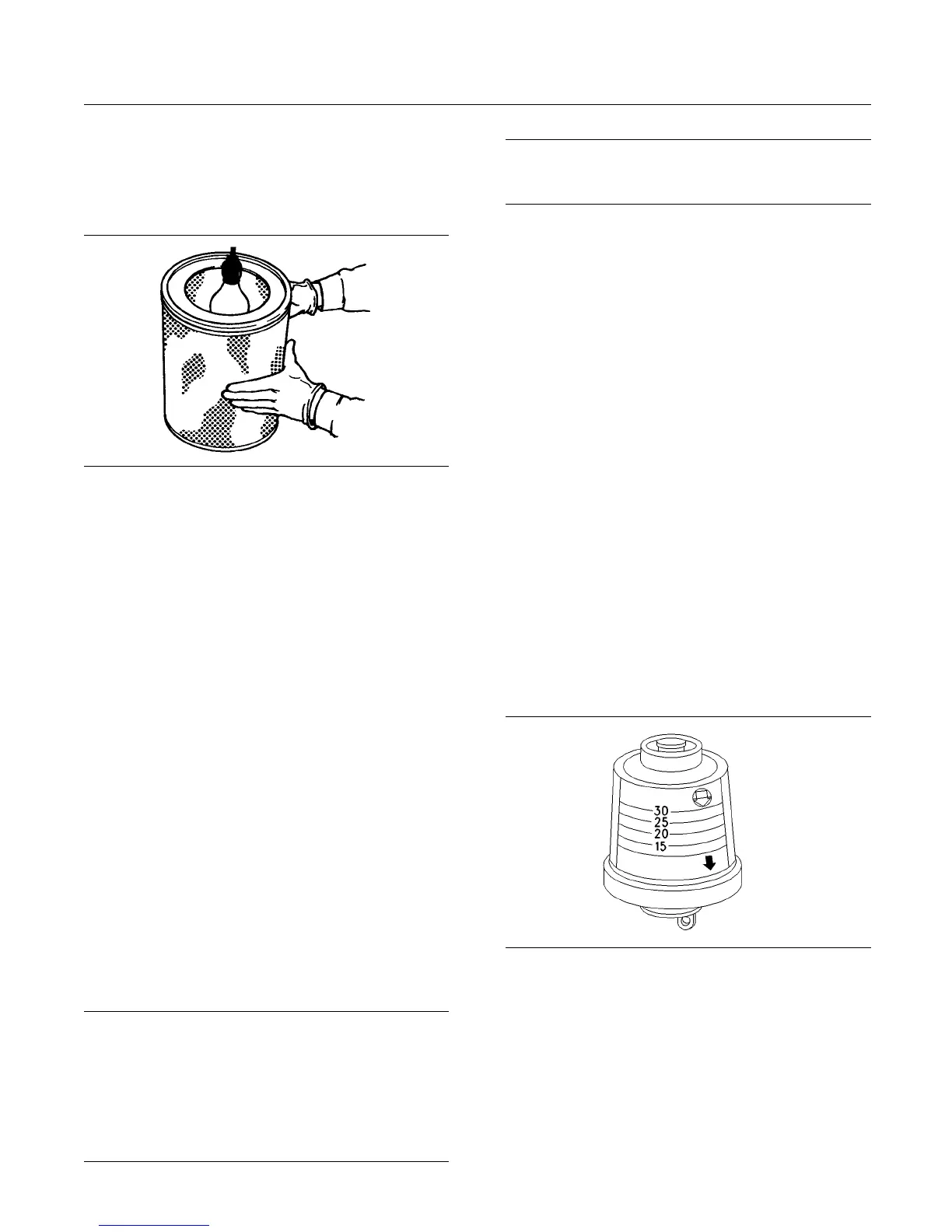

g00281693
Illustration 50
Inspect
the clean, dry primary air cleaner element.
Usea60wattbluelightinadarkroomorinasimilar
facility. Place the blue light in the primary air cleaner
element
. Rotate the primary air cleaner element.
Inspect the primary air cleaner element for tears
and/or holes. Inspect the primary air cleaner element
for lig
ht that may show through the filter material. If it
is necessary in order to confirm the result, compare
the primary air cleaner element to a new primary air
cleane
r element that has the same part number.
Do not use a primary air cleaner element that has
any te
ars and/or holes in the filter material. Do not
use a primary air cleaner element with damaged
pleats, gaskets or seals. Discard damaged primary
air cl
eaner elements.
i02152042
Engi
ne Air Cleaner
Element (Single Element) -
Inspect/Replace
Ref
er to Operation and Maintenance Manual, “Engine
Air Cleaner Service Indicator-Inspect”.
NOTICE
Never run the engine without an air cleaner element
installed. Never run the engine with a damaged air
cleaner element. Do not use air cleaner elements with
damaged pleats, gaskets or seals. Dirt entering the
engine causes premature wear and damage to engine
components. Air cleaner elements help to prevent air-
borne debris from entering the air inlet.
NOTICE
Never service
the air cleaner element with the engine
running since this will allow dirt to enter the engine.
A wide variet
y of air cleaners may be installed for use
with this engine. Consult the OEM information for the
correct procedure to replace the air cleaner.
i02335405
Engine Air Cleaner Service
Indicator - Inspect
Some engi
nes may be equipped with a different
service indicator.
Some eng
ines are equipped with a differential gauge
for inlet air pressure. The differential gauge for inlet
air pressure displays the difference in the pressure
that is m
easured before the air cleaner element and
the pressure that is measured after the air cleaner
element. As the air cleaner element becomes dirty,
the pre
ssure differential rises. If your engine is
equipped with a different type of service indicator,
follow the OEM recommendations in order to service
the air
cleaner service indicator.
The service indicator may be mounted on the air
clean
er element or in a remote location.
g00103777
Illustration 51
Typica l service indicator
Observe the service indicator. The air cleaner
element should be cleaned or the air cleaner element
should be replaced when one of the following
conditions occur:
•
The yellow diaphragm enters the red zone.
•
The red piston locks in the visible position.
