SEBU8603-01 21
Product Information Section
Model Views
The location of
the in-line strainer (5) and the priming
pump (7) will depend on the application.
g02361697

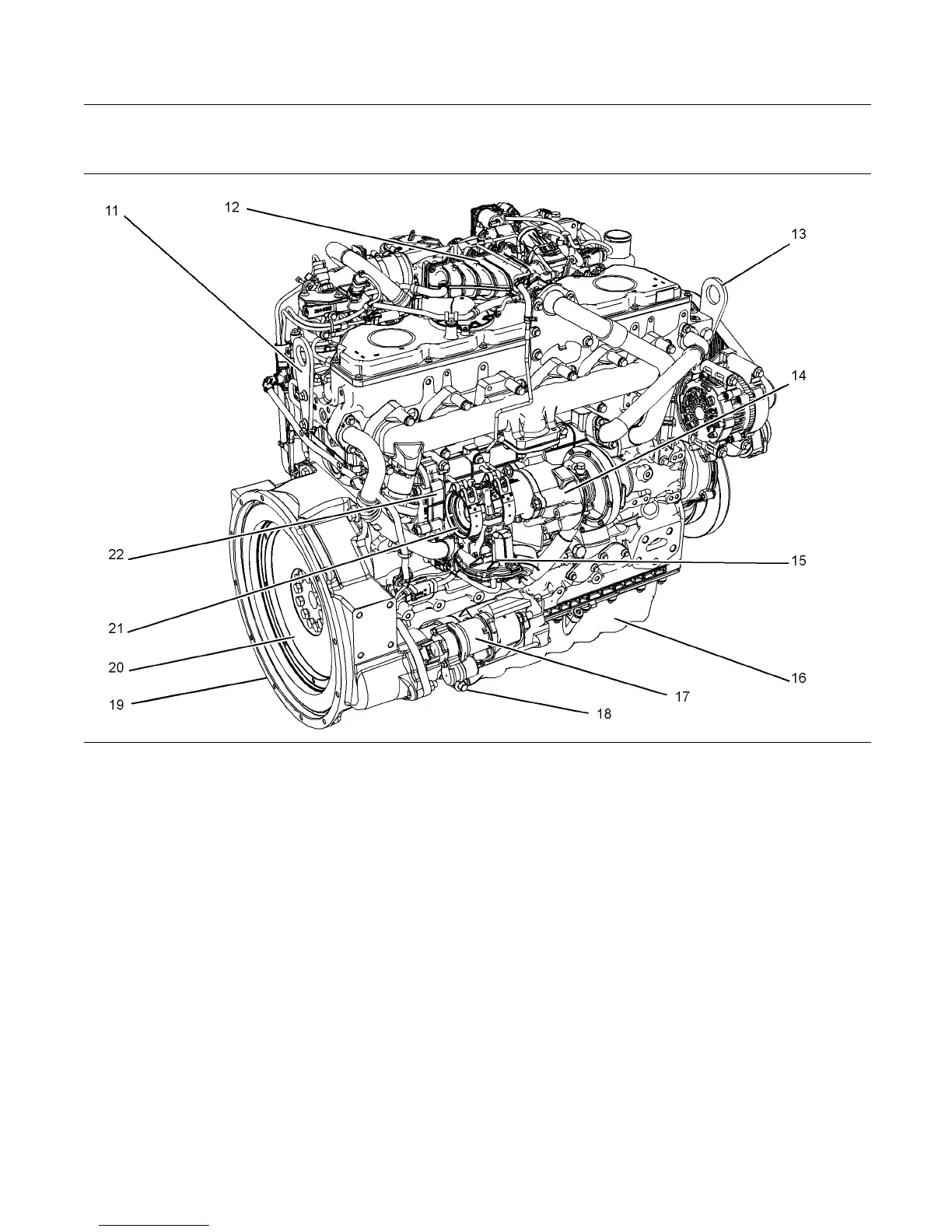

Illustration 18
Typical example
(11) Rear lifting eye
(12) NOx r eduction system (NRS)
(13) Front lifting eye
(14) Turbocharger
(15) Back pre ssu re valve
(16) Engine oil pan (Sum p)
(17) S tarting motor
(18) Engine oil drain plug
(19) Flywheel housing
(20) Flywheel
(21) E xhaust outlet
(22) Ex haust gas cooler
