42 SEBU8603-01
Operation Section
Features and Controls
g02395399

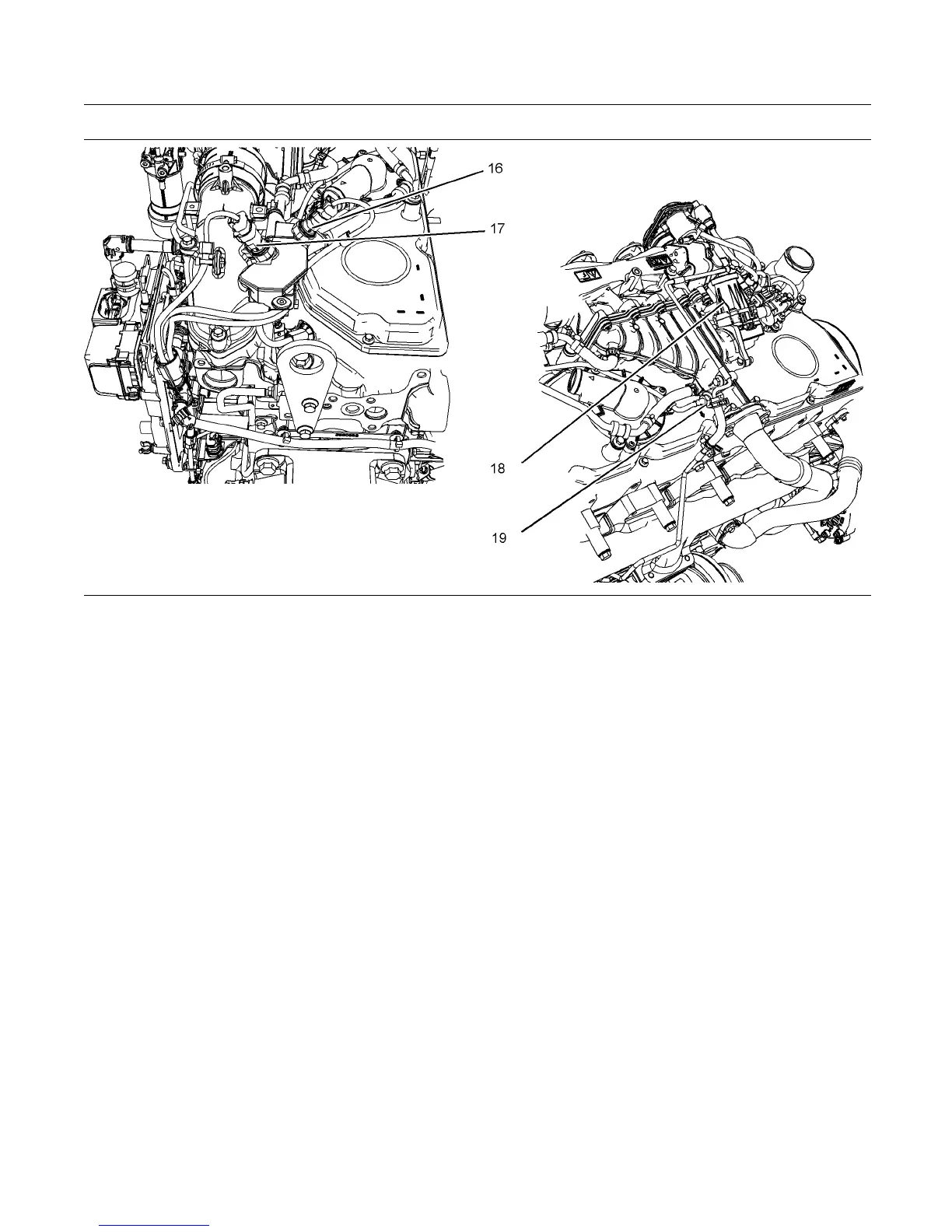

Illustration 34
Typical
example
(16) Inlet Pressure S ensor for the NOx
Reduction System (NRS)
(17) Outlet Pressure sensor for the NRS
(18) Control Valve for the NRS
(19) Temperature Sensor for the NRS
