Fuel System Primary Filter (Water Separator) Element - Replace
2. Place a suitabl
e container under the water
separator in order to catch any fuel that might spill.
Clean up any spilled fuel. Clean the outside body
of the filter as
sembly.
3. Make a temporary Mark (A) across the filter before
the assembly
is removed.

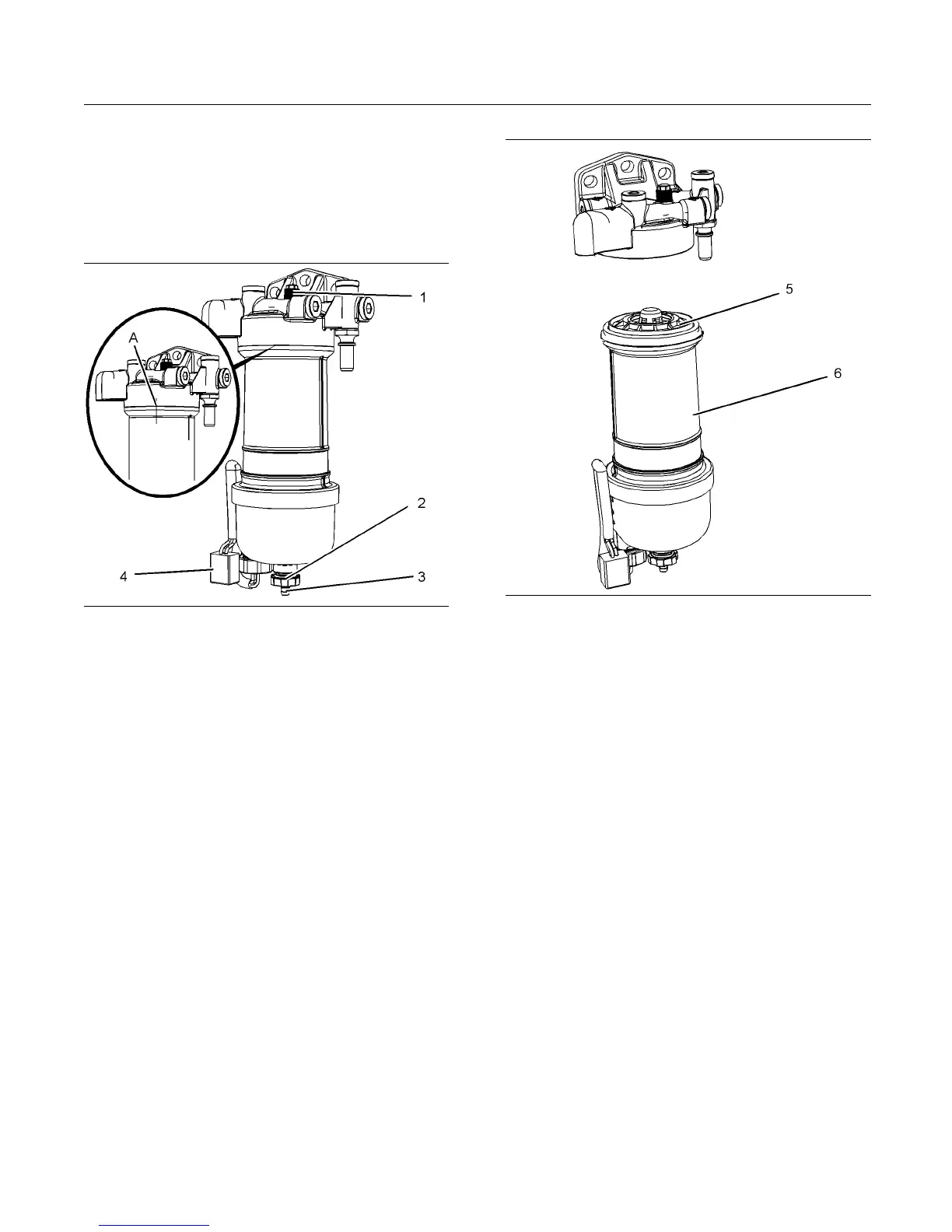

g02148376
Illustration 62
Typical e xample
4. Install a suitable tube onto drain (3). Open
the drain valve (2). Rotate the drain valve
counterclockwise. Two full turns are required.
Loosen vent screw (1).
Note: Two complete rotations of the valve will release
the valve from the fi lter element.
5. Allow the fuel to drain into the container. Remove
thetubeandinstallthevalveintothefilter element.
Engage the threads of the valve into the filter
element. Do not secure the valve.
6. Tighten the vent screw (1) securely . Remove the
wiring harness from connection (4).
7. Remove the filter bowl (6). Rotate the filter
assembly counterclockwise in order to remove
the filter assembly. Use a suitable tool in order to
remove the filter assembly.
g02148402
Illustration 63
Typical
example
8. Rotate the filter element counterclockwise and
remove
the filter element (5). Clean the filter bowl.
