Installation and commissioning
8 - 3

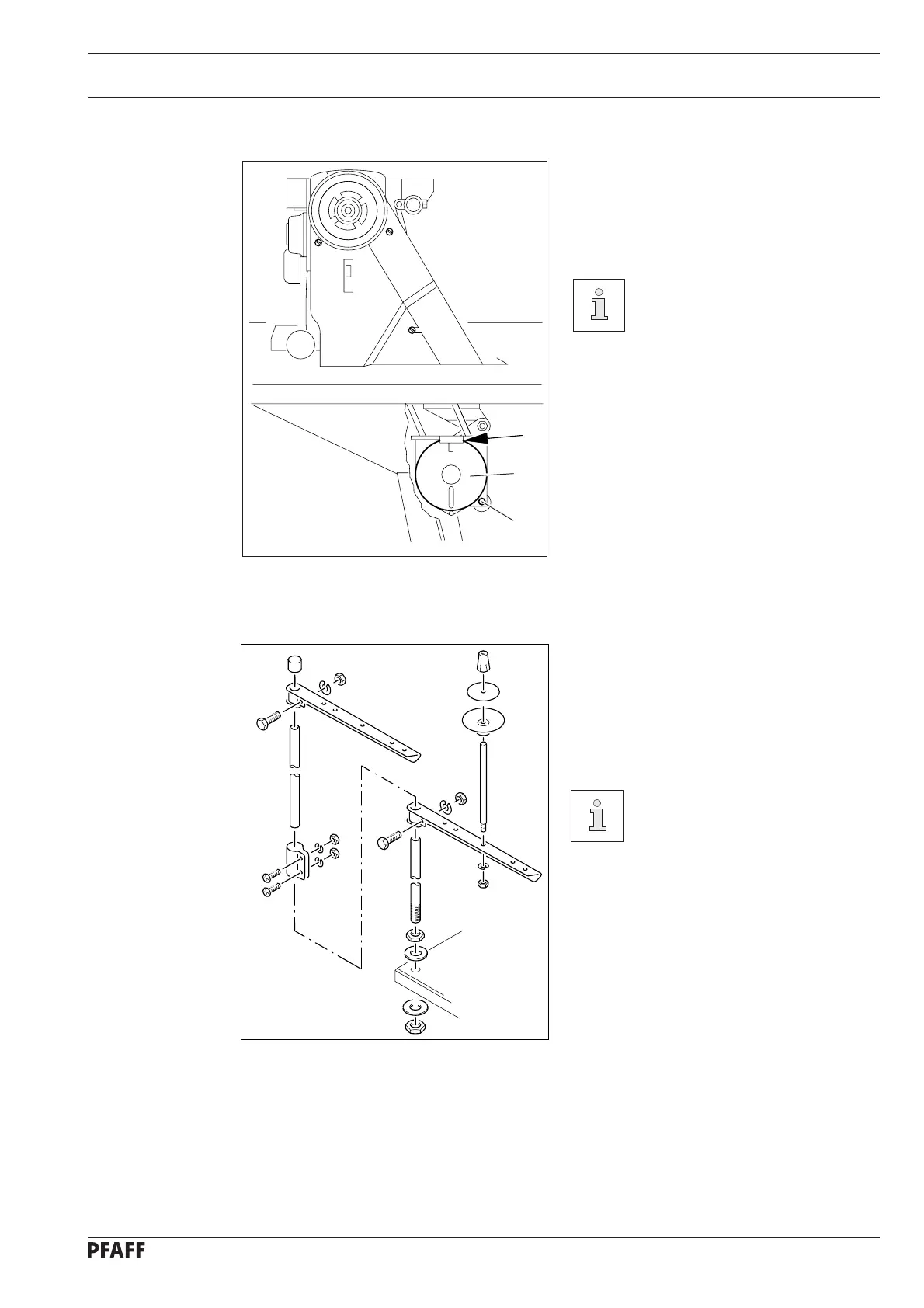

8.01.04 Fitting the lower V-belt guard
● Align the V-belt guard 1 so that the
motor wheel and the V-belt run freely.
● Tighten screws 2.
Fig. 8 - 04
2
2
1
Fig. 8-04 shows a Quick motor.
If another motor is used,
proceed according to the
instruction manual of the
manufacturer.
8.01.05 Mounting the reel stand and the sewing lamp
● Mount the reel stand as shown in
Fig. 8-05
● Have the sewing lamp screwed onto the
table top by specialist personnel, using
wood screws (5 x 35).
The sewing lamp is included in
the standard equipment.
Fig. 8 - 05
