Adjustment
11.05.08 Zigzag stitch motion
Requirement
When the needle bar is at tdc coming from the right bdc (hole 2), the needle bar must not
move laterally when the zigzag stitch adjustment lever is moved back and forth.
● Loosen screws 2.
● Turn zigzag stitch eccentric 1 in accordance with the requirement, taking care to ensure
that zigzag stitch eccentric 1 is approximately 5 mm from the inner right side of the
housing wall.
● Tighten screws 2.
11 - 10
5
1
3
4
2

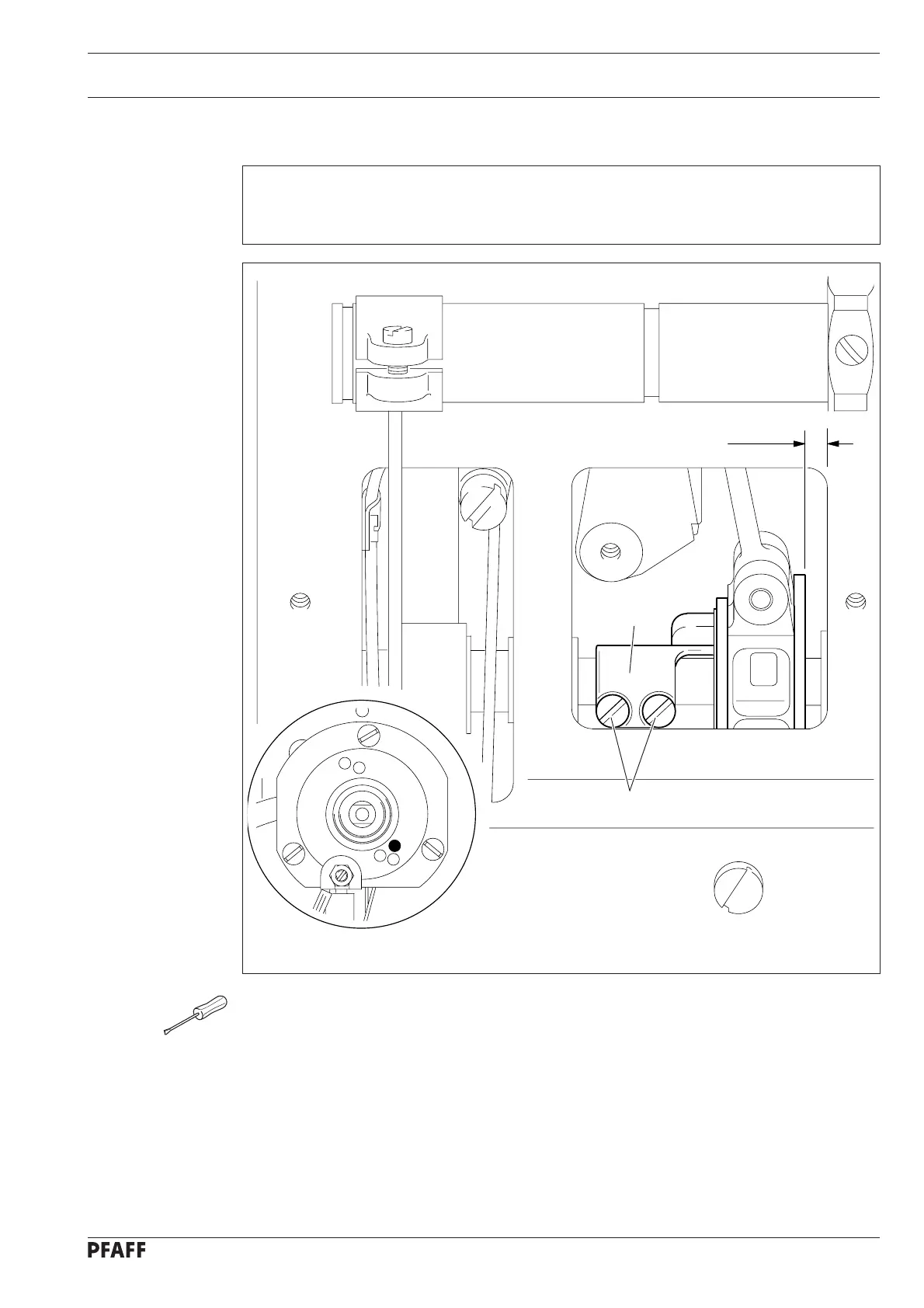

Fig. 11 - 09
5 mm
2
1
