11.05.35 Vibrating presser feeding motion
Requirement
At the maximum stitch length and with the needle bar at 1.0 past tdc (hole 4), the
vibrating presser must not move when the reverse feed key is moved up and down.
1
2

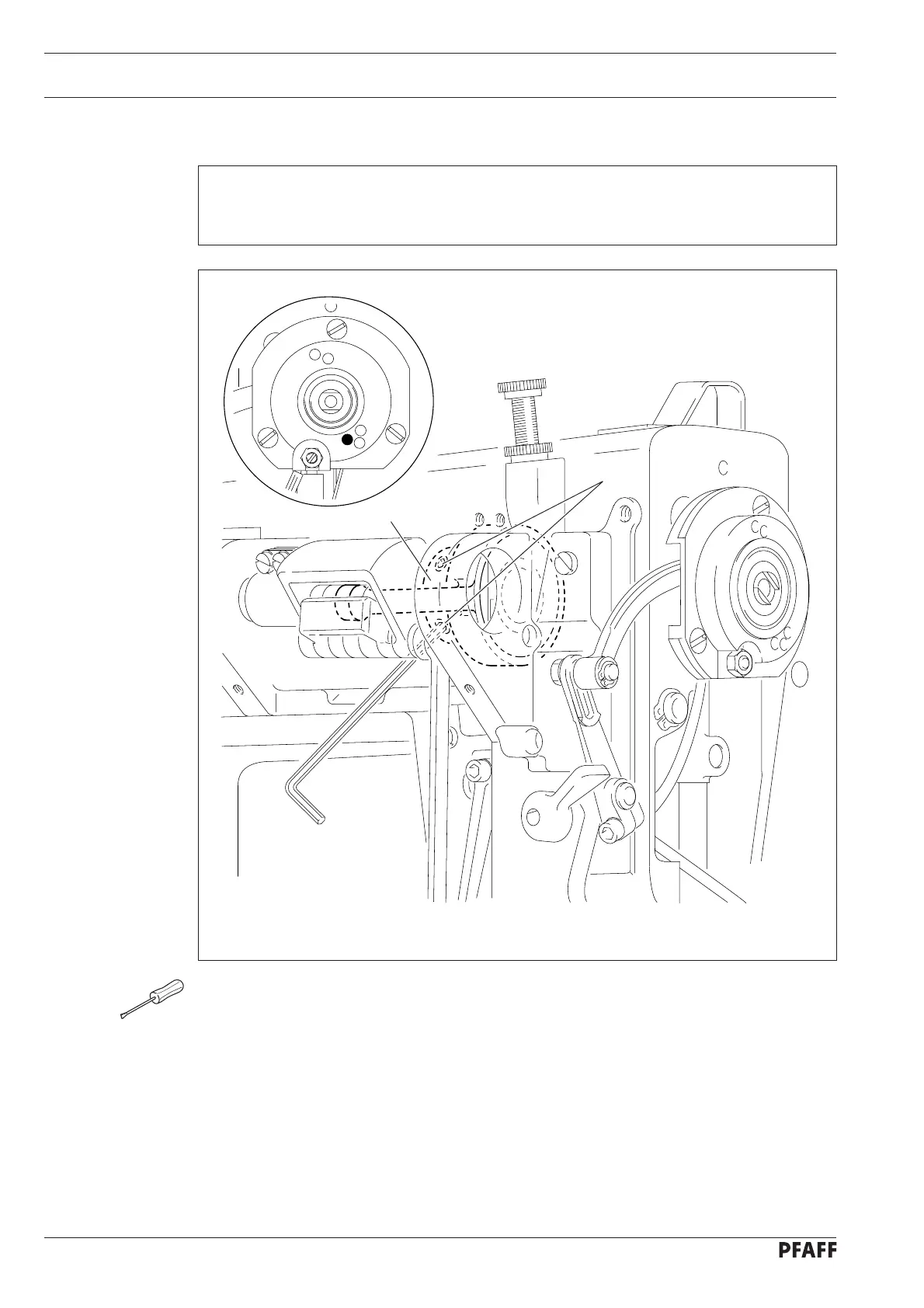

Fig. 11 - 37
● Raise the presser foot.
● Loosen screws 2 and turn feed eccentric 1 until the second screw in the direction of
rotation as seen from the rear is visible.
● Turn the feed eccentric in accordance with the requirement.
● Tighten screw 2.
