Adjustment
11
.05.22

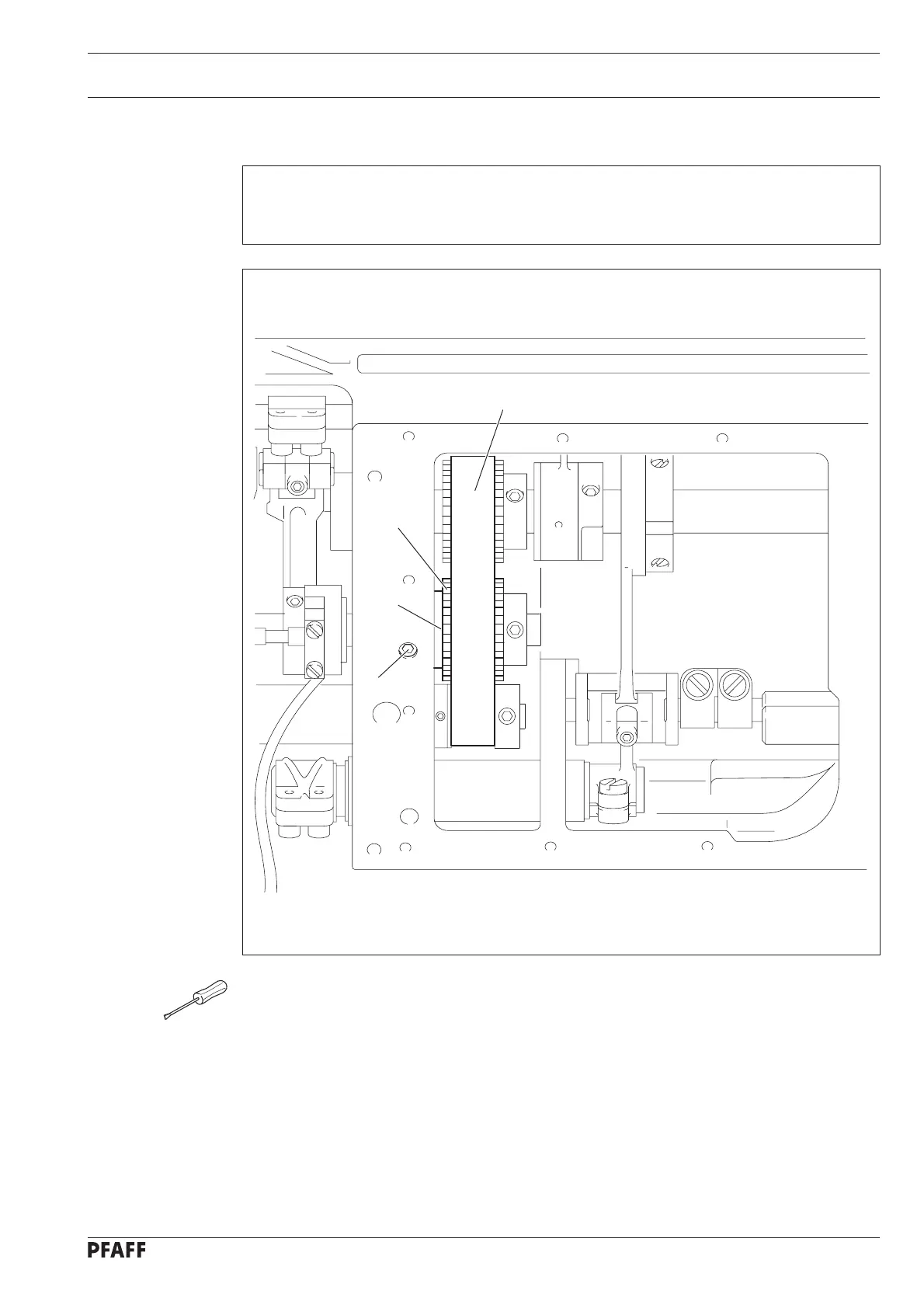

Drive belt in the gearbox housing
Requirement
Drive belt 4 must be tightened so that the machine runs freely and the belt sprockets
do not have any noticeable play.
●
Loosen screw
2
.
●
Move eccentric bearing bush
1
until drive belt
4
is in the middle of bobbin case opener
drive wheel
3
and turn it in accordance with the
requirement
.
●
Tighten screw
2
.
3
1
2
4
Fig. 11 - 24
11 - 24
60
62
