Adjustment
37 14 47
24V = 4% ED
11.06.04 Engaging solenoid
Requirement
With the needle bar 2.0 past bdc (hole 1) there must be a clearance of 0.2 to 0.3 mm
between engaging lever 2 and pawl 1 when the engaging solenoid is active.

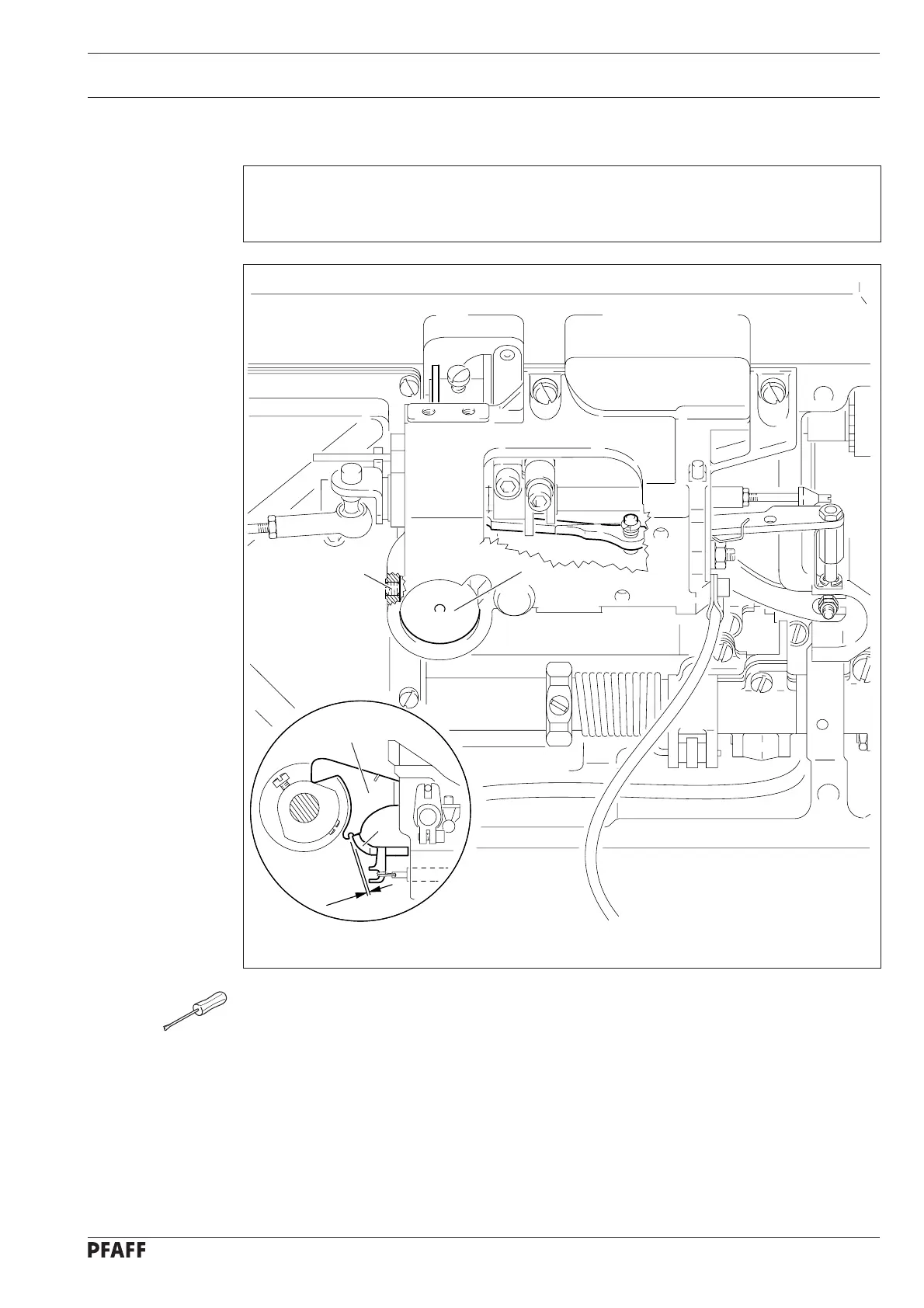

Fig. 11 - 48
0.2 -
0.3 mm
2
1
3
4
● Position the needle bar 2.0 after bdc (hole 1).
● Activate engaging lever 2 manually until pawl 1 drops into place.
● Loosen screw 4.
● Press the solenoid plunger as far as possible into the solenoid housing 3 and move
solenoid housing 3 and the cutout arm in accordance with the requirement.
● Tighten screw 4.
11 - 50
