Adjustment
11.05.24 Hook lubrication
Requirement
1. Centrifuge disc 2 must be 1.5 mm in front of the oil thrower.
2. With the machine working at top speed, a fine stripe of oil should appear after about 10
seconds on a piece of paper held over the needle plate cutout.
11 - 26
1
2
3
1,5 mm
2

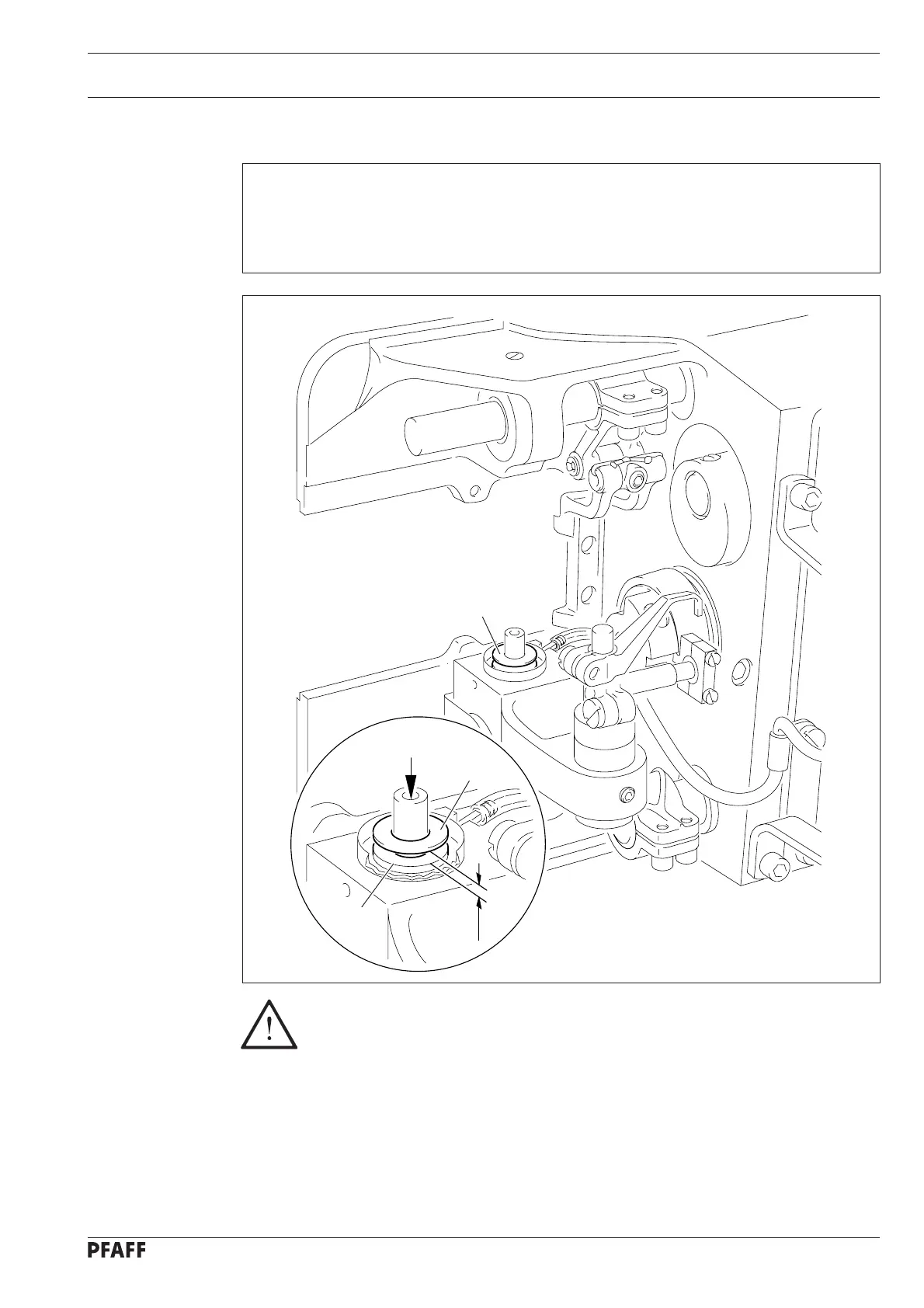

Fig. 11 - 26
This setting is only necessary when the wick has been replaced. when
replacing the wick, ensure that the new wick is saturated with oil.
● Loosen screw 1.
● Move centrifuge disc 2 in accordance with requirement 1.
● Tighten screw 1.
● Check requirement 2 and move centrifuge disc 2 if necessary.
