Adjustment
● Loosen screws 3.
● Turn both adjustment wheels 5 until guide pin 2 is in the middle of the connecting link.
The ends of the two toothed racks 6 must be flush with each other.
● Turn both scale rings in accordance with the requirement and tighten screws 3.
1
0
2
11.05.11 Adjustment wheels for applying fullness
Requirement
With guide pin 2 in the middle of the connecting link and the ends of the toothed racks 6
flush with each other, the zero markings on the adjustment wheels 5 must be at marking 4.
5
4
5
2
3
6

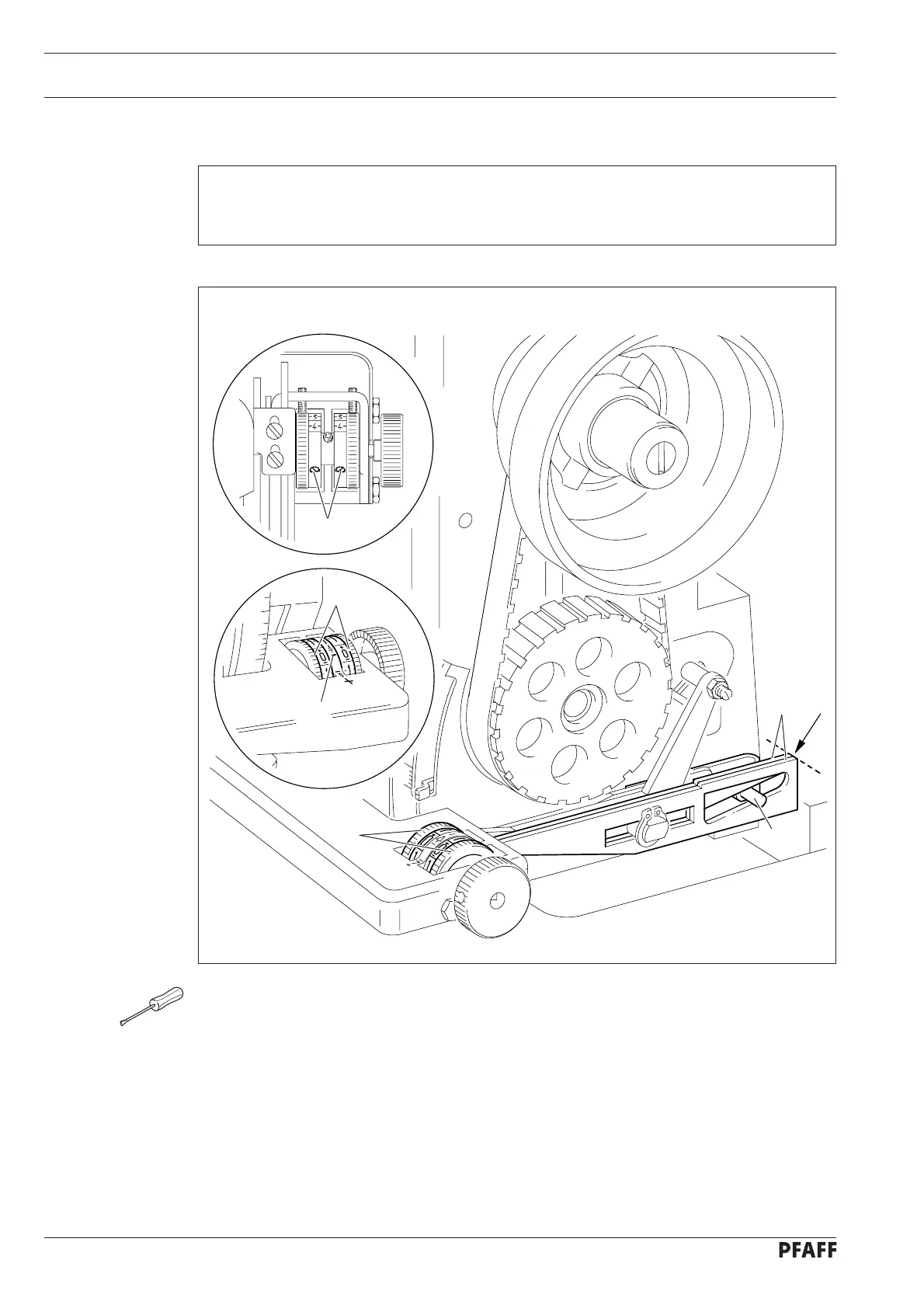

Fig. 11 - 12
