Adjustment
11.06.07 Thread catcher position and cutting test
Requirement

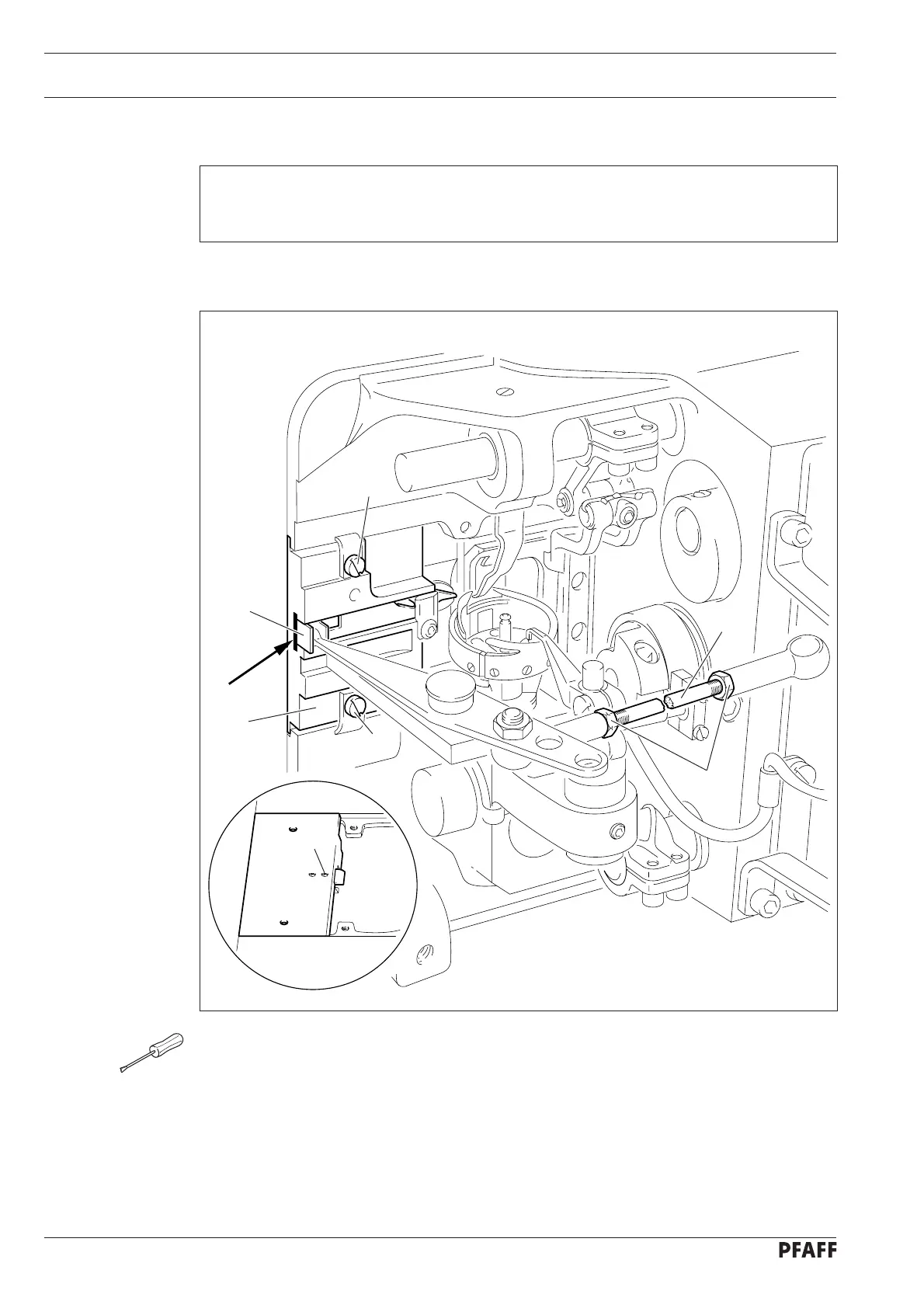

With the thread trimmer in resting position the edge of thread trimmer 1 must be flush
with the edge of bracket 2.
● Loosen nuts 4 (left and right-handed threads).
● Turn connecting rod 3 in accordance with the requirement and tighten nuts 4.
● For the cutting test disengage the connecting rod, loosen screws 5 and remove
bracket 2.
● Adjust the cutting pressure by turning screw 6.
● Insert bracket 2 in such a way that its edge is flush with the edge of the bedplate.
● Tighten screws 5 and replace the connecting rod.
14-50
6
5
5
3
4
2
1
Fig. 11 - 51
11 - 53
