Mixing Pump PFT G4
Operation
42 2007-09-05
Connecting the sprayer

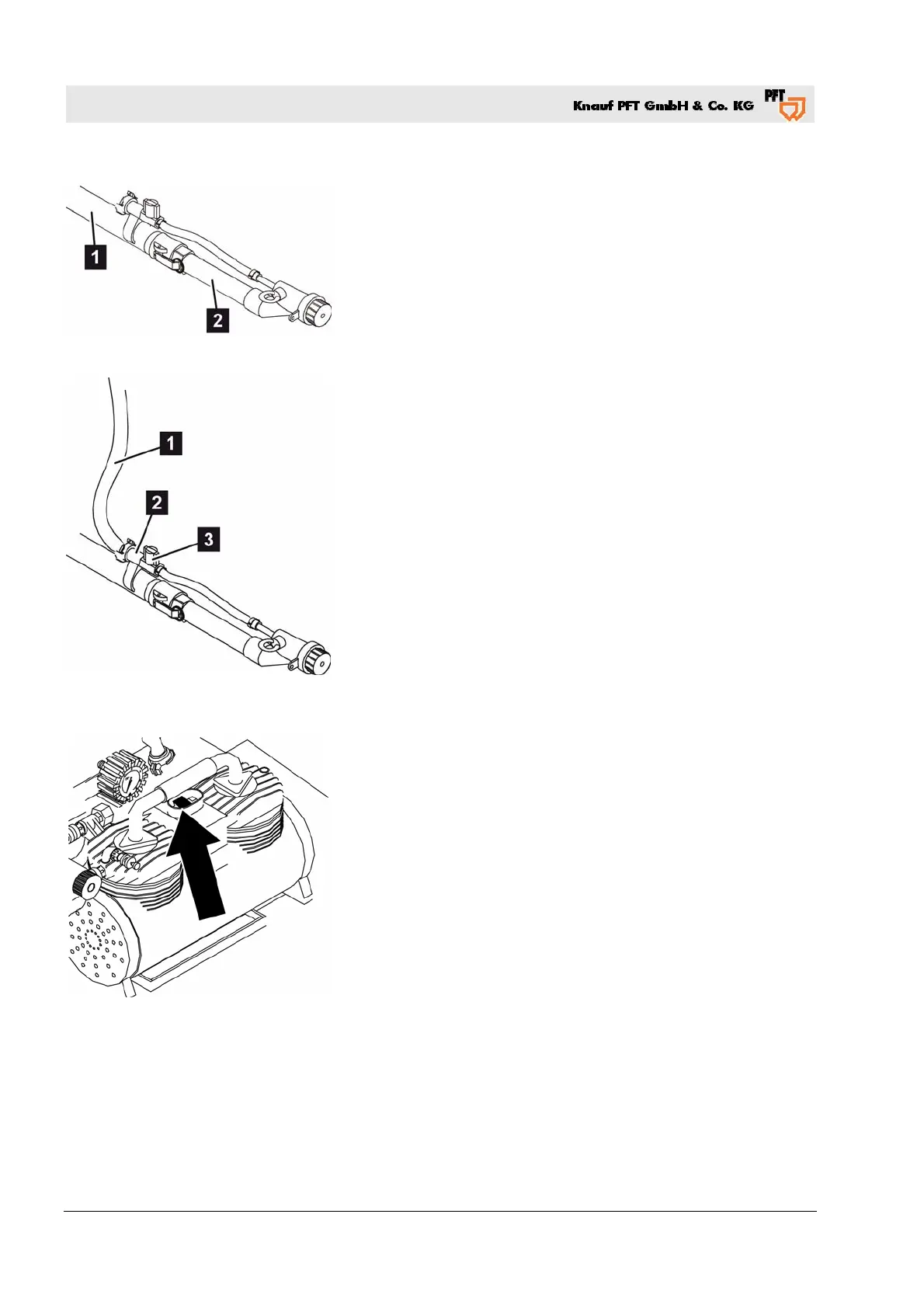

Fig. 33: Connecting the sprayer
16. Switch off the machine via the "Operation OFF" pushbutton.
17. Connect the sprayer (2) to the mortar hose (1).
Fig. 34: Compressed air supply on
sprayer
18. Ensure that the air cock (Fig. 34/3) on the sprayer is closed.
19. Connect compressed air hose (
Fig. 34/1) to the sprayer (Fig.
34/2) and to the compressed air fitting.
WARNING! Pressurized media!
Be aware of possibly escaping compressed air. When in
doubt, wear protective equipment, especially protective
goggles. Neglecting this warning may lead to injuries,
especially to the eyes.
Fig. 35: Switching on the compressor
20. Switch on the compressor via the black button (Fig. 35/1).
21. Switch on the machine via the green "Operation ON"
pushbutton. The green button will be illuminated.
The machine is now ready for operation.
