PFT G4 - Page 46

Mixing Pump PFT G4
Operation
46 2007-09-05

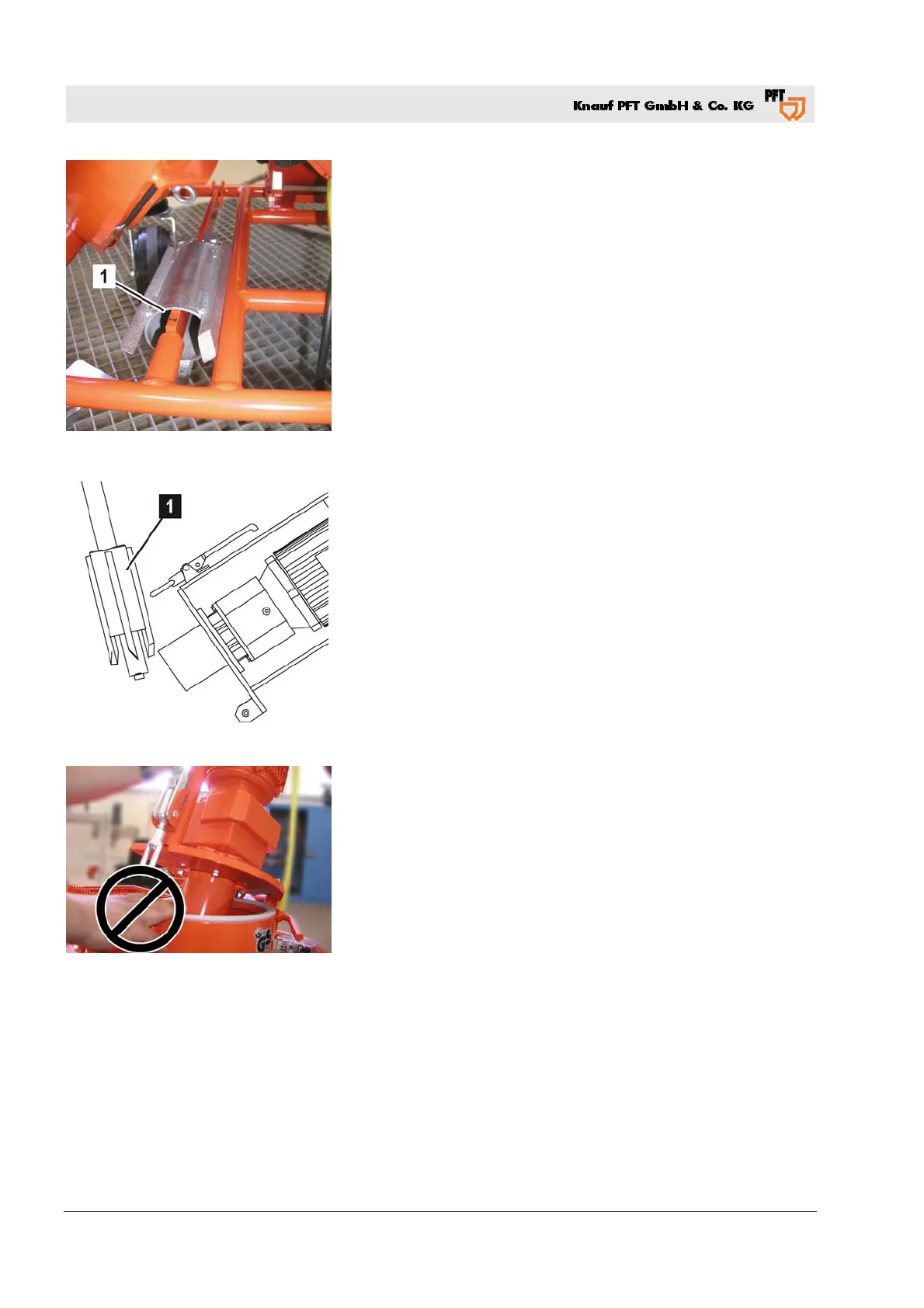

Fig. 41: Retaining fixture
5. Take the mixing pipe cleaner out of the retaining fixture (Fig.
41
/1).
Fig. 42: Inserting the mixing pipe cleaner
6. Insert the cleaner shaft and mixing pipe cleaner (Fig. 42/1) into
the mixing pipe with the scraper down.
Fig. 43: Close the motor tilt flange
WARNING! Danger of crushing on the motor tilt flange!
When closing the motor tilt flange there is danger of crushing.
Do not reach into the closing area of the motor tilt flange.
7. Close the motor tilt flange and lock it via the quick lock (Fig. 43).
8. Press the green "Operation ON" push button and let the
machine run between 5 – 10 seconds until the mixing pipe is
clean.
9. Open the quick lock on the motor tilt flange and tilt the motor.
10. Remove the mixing pipe cleaner.
11. Place the mixing pipe cleaner in the retaining fixture (Fig. 41).
12. Reinsert the mixing helix and ensure that it is properly seated.
13. Re-close the tilt flange.
