Screen Layout

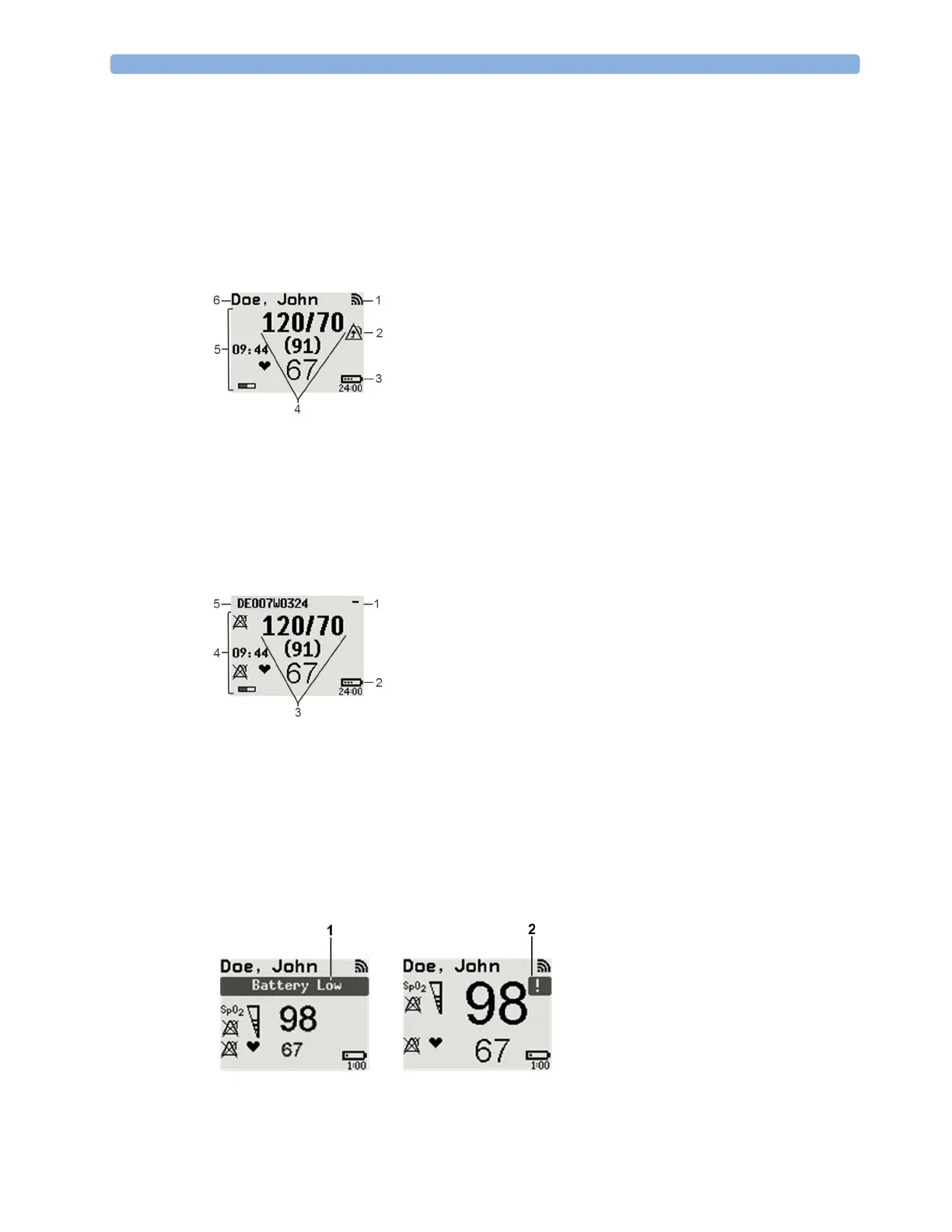

There are three variations of the Main Screen layout depending on the INOP status and the general
activity level.
Standard Layout
INOP Layout
If an INOP occurs the full INOP message appears at the top of the screen. After the INOP message
has been acknowledged the INOP indicator is shown as a symbol on the right side of the screen.
When assigned to a monitor, telemetry device or a patient in GuardianSoftware:
1 Connection status indicator
2 Indicator that alarming capability has been transferred
to the host (to the monitor or, for the telemetry
device, to the Information Center). No patient alarms
will be announced on the Cableless Measurement
Device.
3 Battery indicator
4 Measurement values
5 Measurement-related symbols (see the measurement
chapters for details)
6 Patient identification
When not assigned to a monitor or telemetry device:
1 Connection status indicator
2 Battery indicator
3 Measurement values
4 Measurement-related symbols (see the measurement
chapters for details). The Alarms Off symbols
indicate that no physiological alarms are available
from the Cableless Measurement Devices when not
assigned to a host.
5 Cableless Measurement Device equipment label
1 Full length INOP message
2 INOP indicator
