Patient monitoring
8-3
Freezing and
unfreezing waveforms
Freeze waveforms for extended viewing by selecting the pause button
to the left of the waveform window.
The cursor makes one complete sweep across the waveform and then
displays the pause in progress symbol. The graphic display is then
frozen, and the cursor is visible in the middle of the display
(Figure 8-2). Reposition the cursor by touching the waveform screen
or with the navigation ring (legacy versions). Data values at cursor
location for pressure, flow, and volume are displayed in the white
boxes.
Unfreeze the waveforms with the resume button.

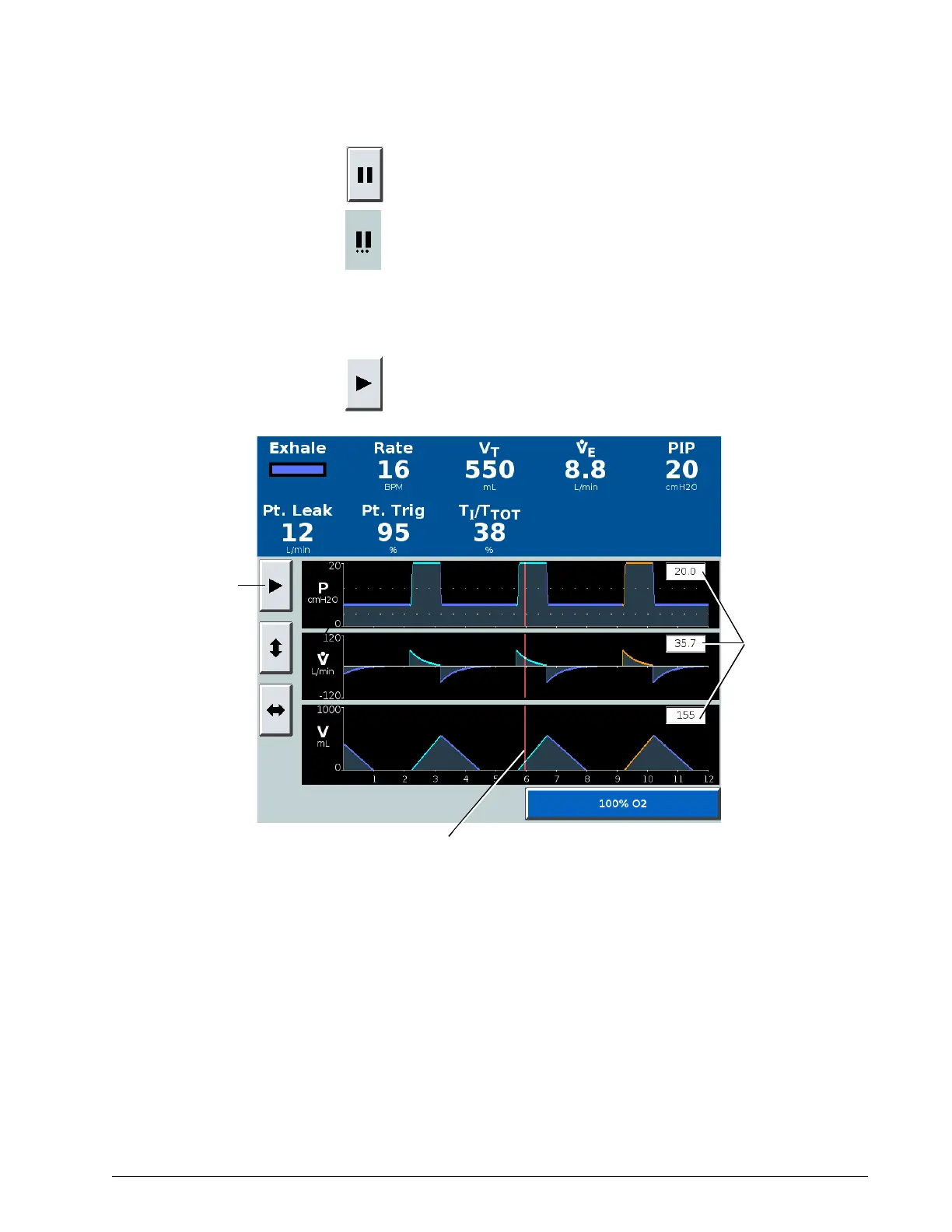

Figure 8-2: Waveform window with frozen screen
Resume
button
unfreezes
waveforms
Cursor
Measurements at
cursor
