Mounting and installation
108997_en_04 PHOENIX CONTACT 23 / 226
Mounting:
• Place the module onto the DIN rail from above (A). The upper holding keyway of the
module must be hooked onto the top edge of the DIN rail. Push the module from the
front towards the mounting surface (B).
• Once the module has been snapped on properly, check that it is fixed securely on the
DIN rail.

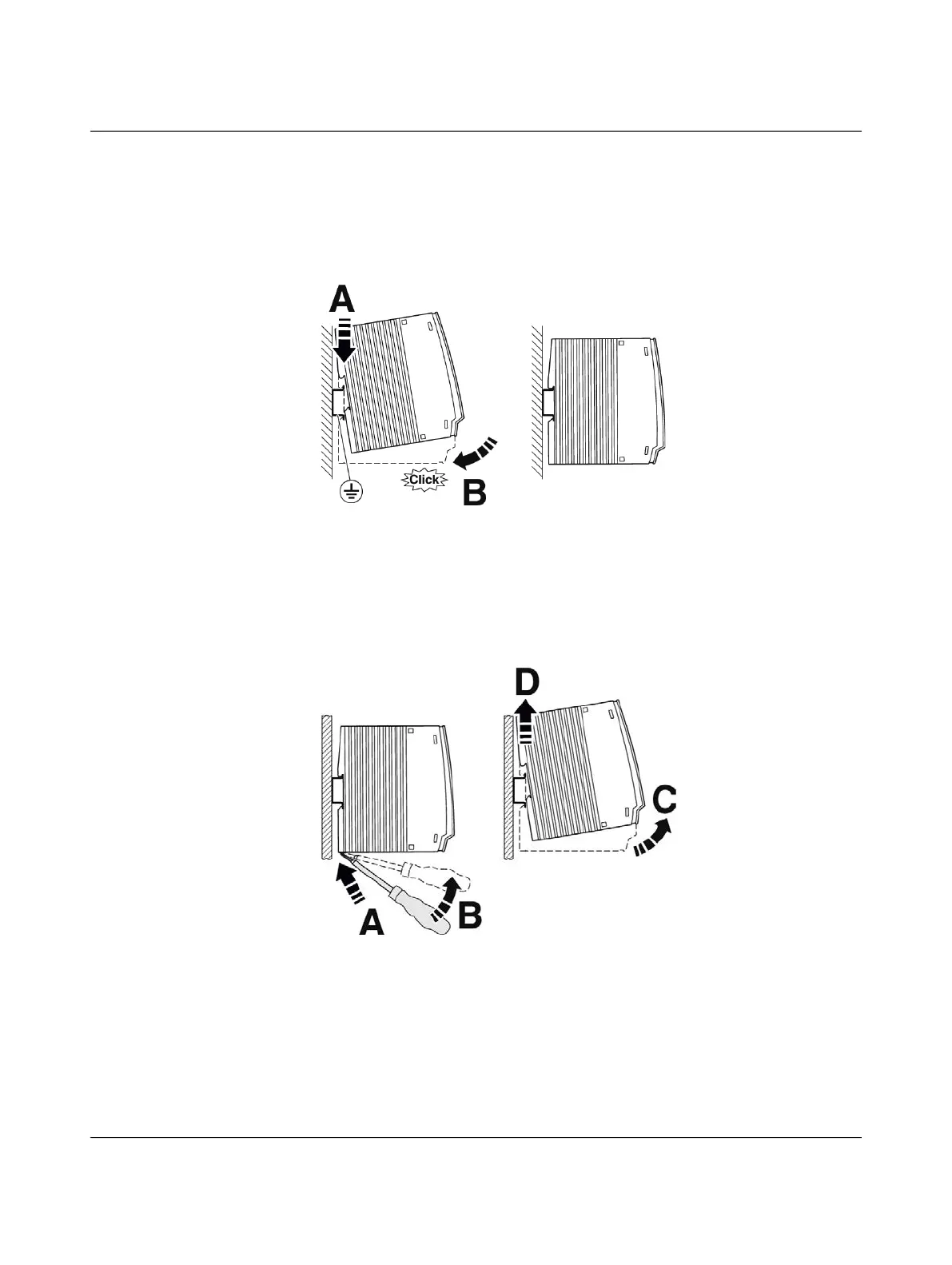

Figure 34 Snapping the device onto the DIN rail
Removal:
• Pull down the positive latch (A/B) using a suitable tool (e.g., screwdriver).
On the 16-port devices, the positive latch remains snapped out. Then slightly swivel the
bottom of the device away from the DIN rail (C). Lift the device upwards away from the
DIN rail (D).
Figure 35 Removing the device
